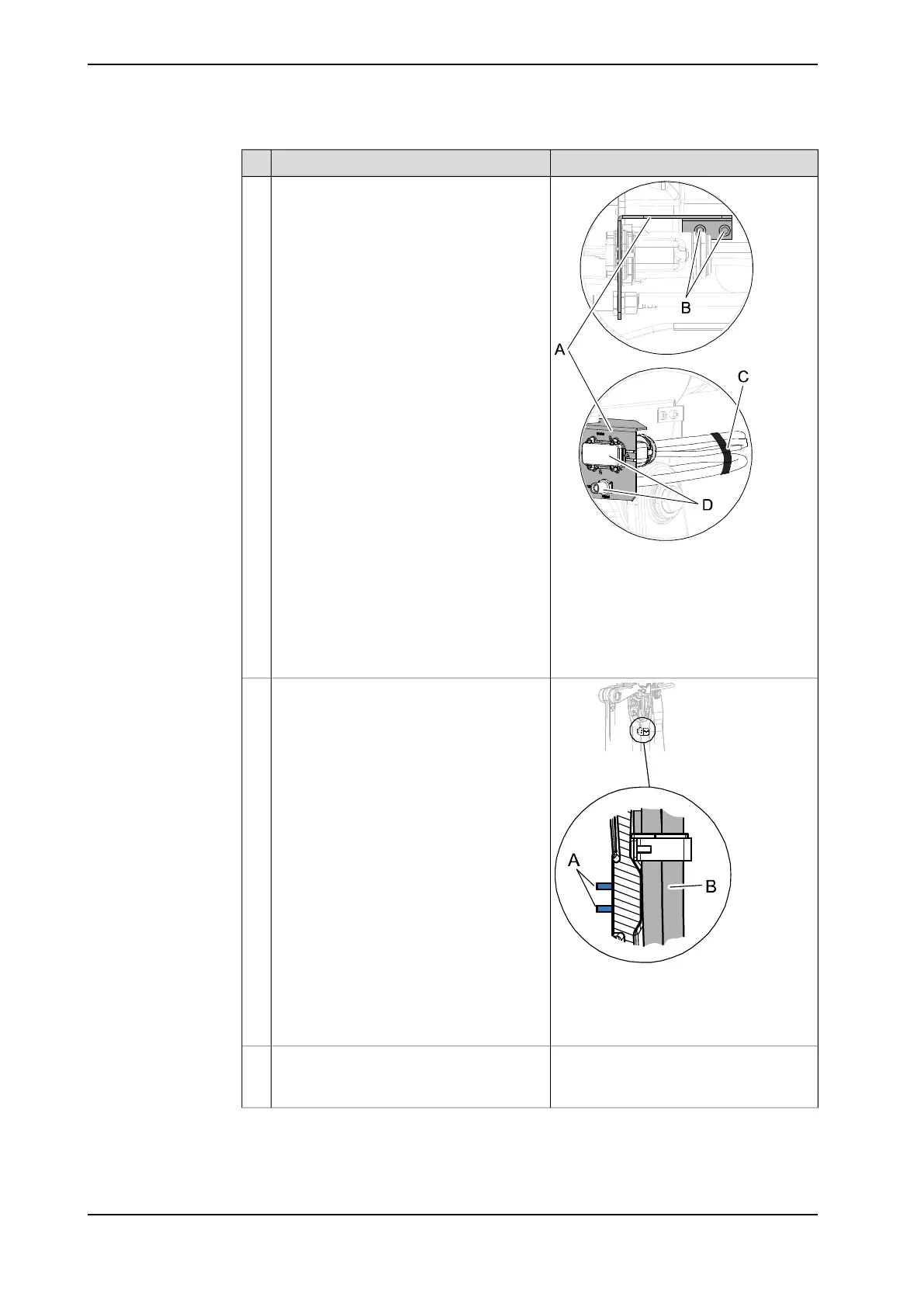

ABB IRB 6660 - Page 194

NoteAction
xx0700000648
Connect all connectors at the attachment
plate.
2
Parts:
• A: Attachment plate
• B: Attachment screws M10x16
quality 8.8-A3F (2 pcs)
• C: Strap, velcro
• D: Connectors
xx0700000649
Refit the prev. torque nuts securing the
process cable package on the inside of the
lower arm.
3
Parts:
• A: Position for prev. torque nuts
• B: Process cable package
Order of refitting:
1 Cables
2 Hose
Push the process cable package gently
down through the cable guide in the
centrum hole in gearbox axis 1.
4
Continues on next page
194 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
4 Repair
4.3.2 Replacement of process cable package 1 - 3 MH
Continued
