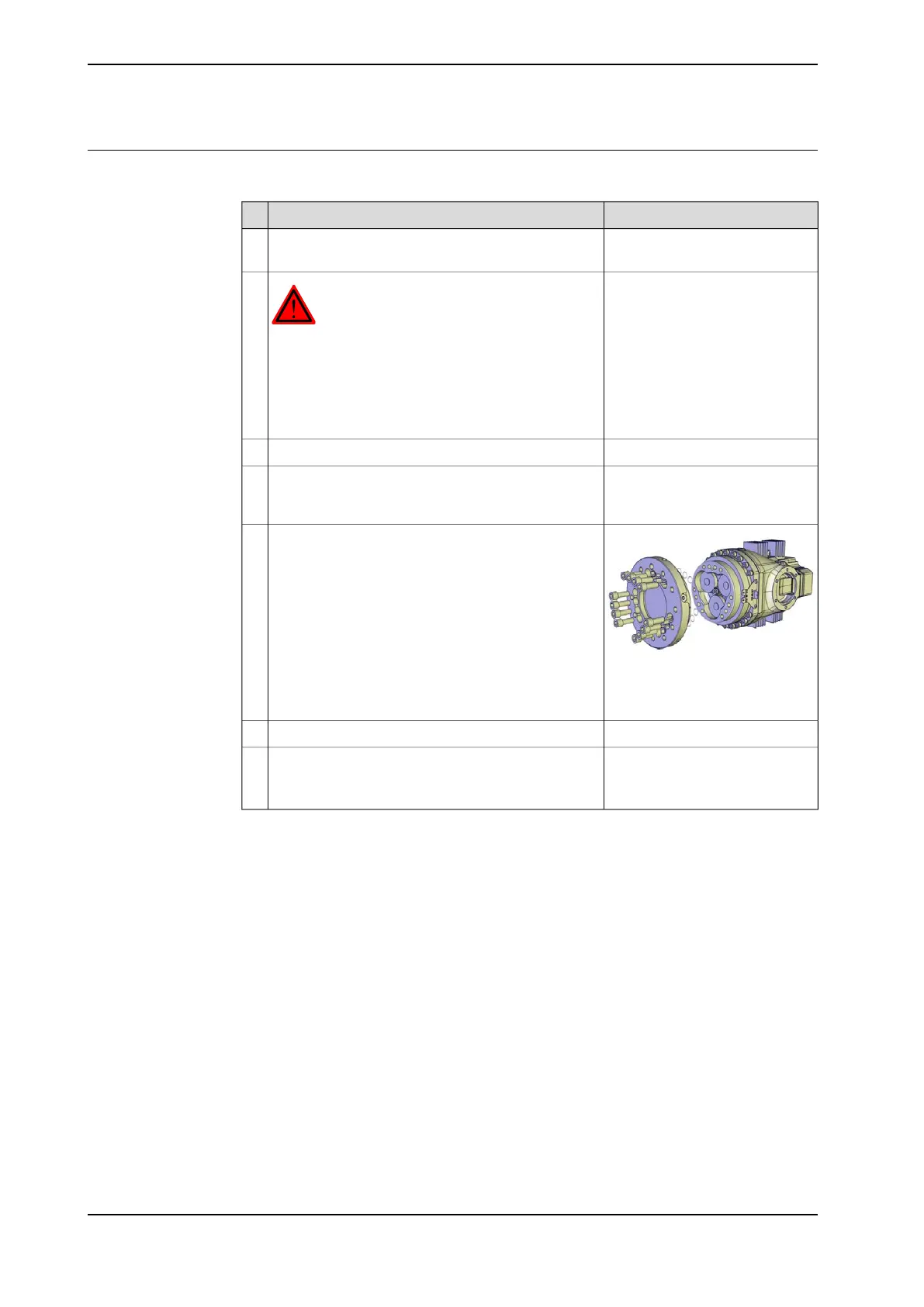

Removing, turning disk
Use this procedure to remove the turning disk.
NoteAction
Shown in the figure Location of
turning disk on page 217.
Run the robot to a position where the oil plug, drain-
ing of axis 6 gearbox faces downwards.
1
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot working area.
2
Remove any equipment fitted to the turning disk.3
See section
• Changing oil, axis-6 gear-
box on page 159
Drain the axis 6 gearbox.4
xx1400000994
Remove the attachment screws that secure the
turning disk.
5
Shown in the figure Location of
turning disk on page 217.
Remove the turning disk.6
Foundry Plus:7
Remove old flange sealant residues and other con-
tamination from the contact surfaces.
Continues on next page
218 Product manual - IRB 6660
3HAC028197-001 Revision: S
© Copyright 2007-2018 ABB. All rights reserved.
4 Repair
4.4.1 Replacing the turning disk
Continued
