NoteAction
Art. no. is specified in Required
equipment on page 252.
xx1000001375

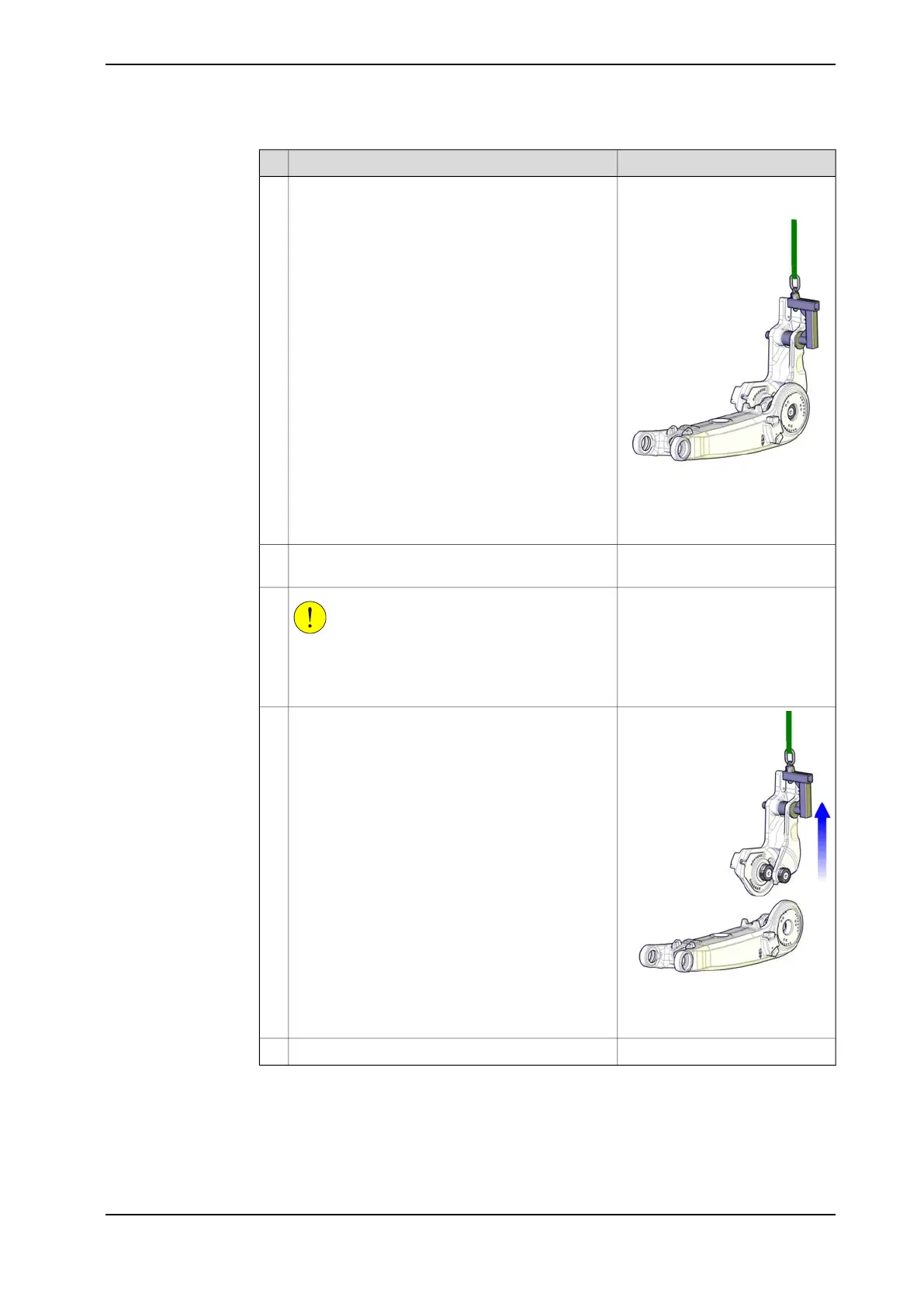

Fit the lifting accessory, parallel arm on the parallel
arm. Lift the parallel arm to the position shown in
the figure.
6
Art. no. is specified in Required
equipment on page 252.
Disassemble the parallel arm from the lower arm
by using the pressing tool, lower arm.
7
CAUTION
The parallel arm system weighs 92 kg.
All lifting accessories used must be sized accord-
ingly!
8
xx1000001018
Remove the parallel arm.9
If needed, change the bearings.10
