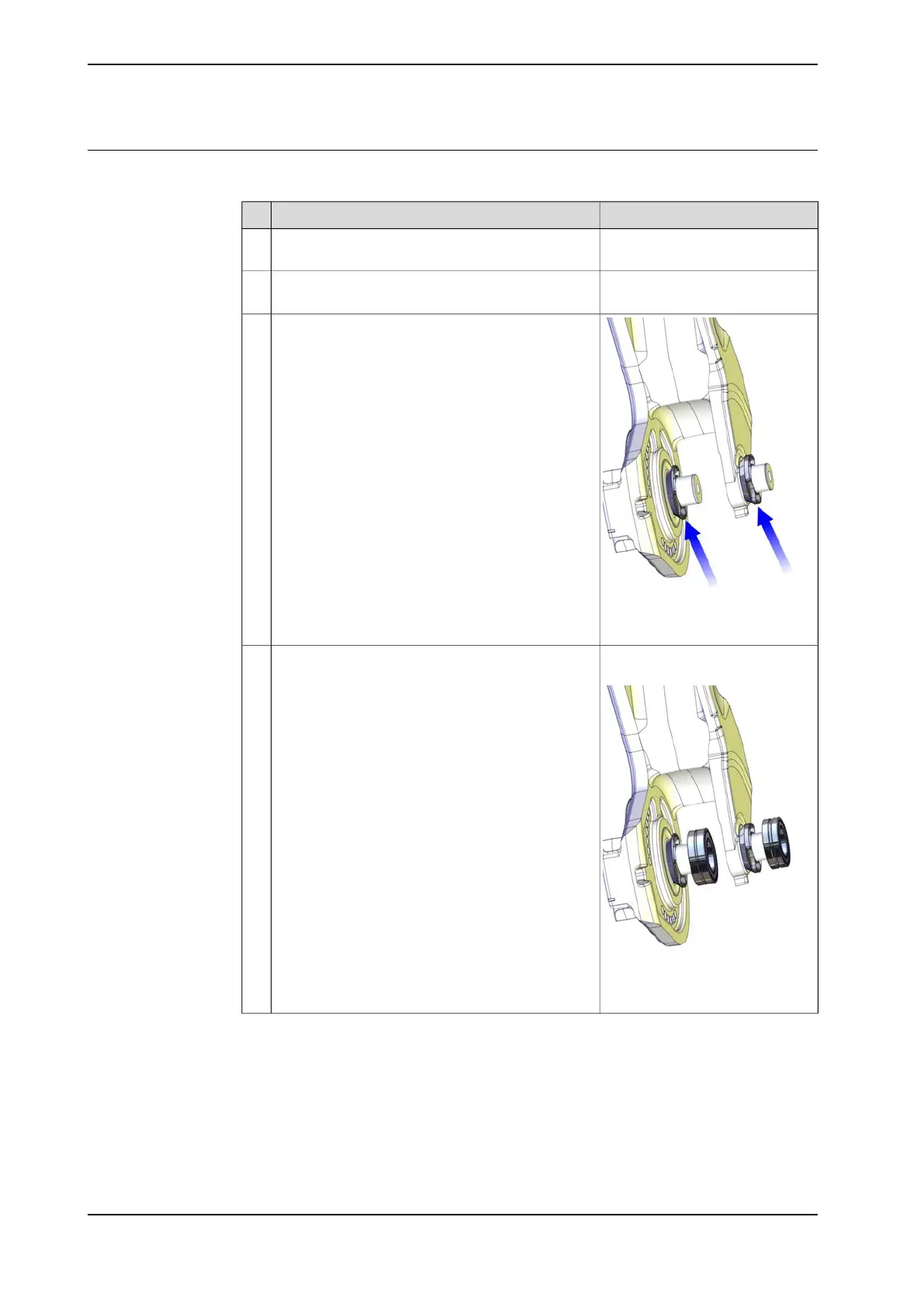

Refitting, parallel arm
Use this procedure to refit the parallel arm.
NoteAction
Refitting of the parallel arm is best performed on a
workbench.
1
Specified in Required equipment
on page 252
Apply some grease on the shafts on the parallel
arm.
2
xx1000001376
Refit a spacing sleeve on each shaft.3
Art. no. is specified in Required
equipment on page 252
xx1000001377
Refit a bearing on each shaft with pressing tool,
lower arm.
4
Continues on next page
256 Product manual - IRB 6660
3HAC028197-001 Revision: S
