Foundry Plus:

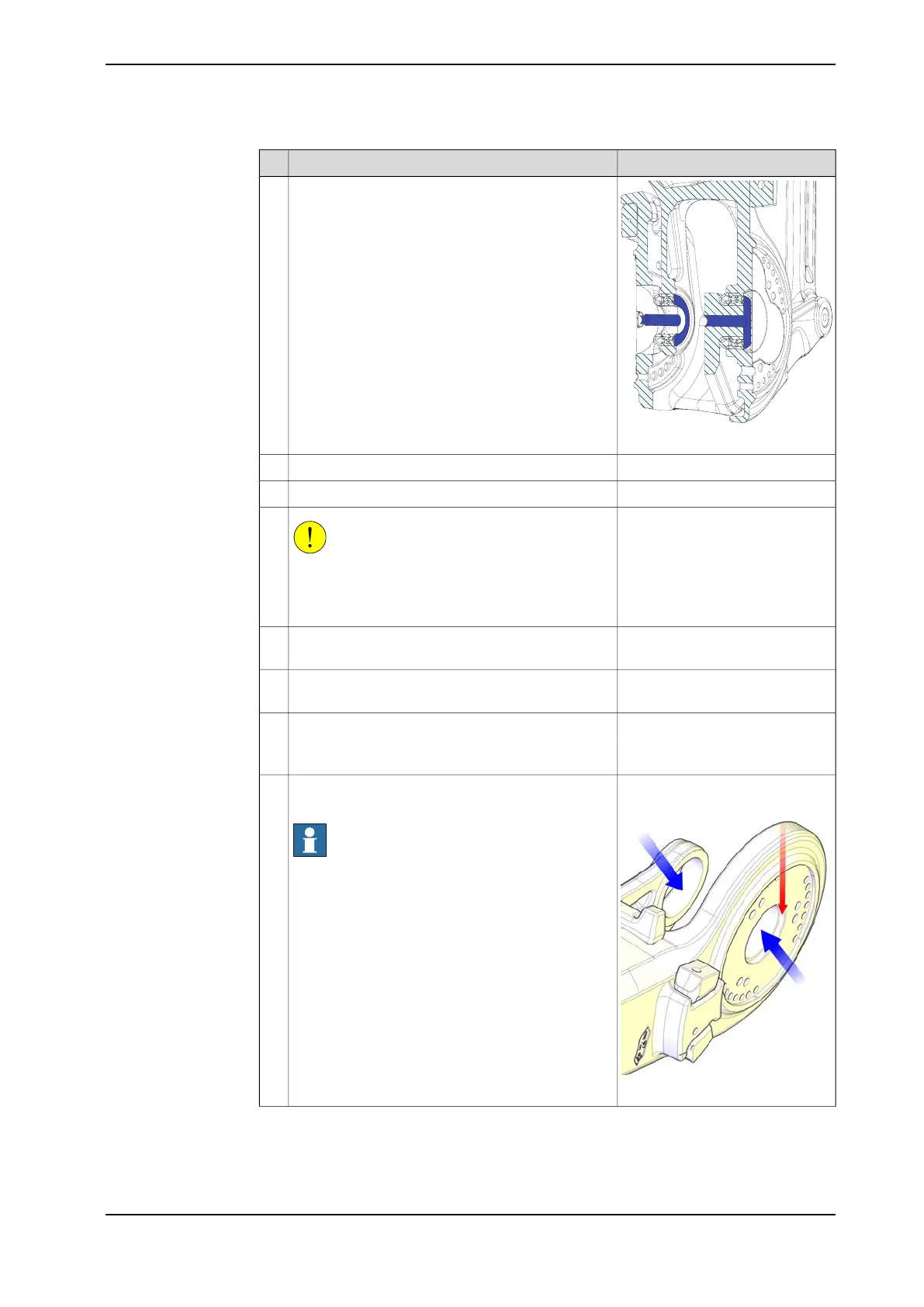

Apply rust preventive on the highlighted areas.
5
Refit the protection washer on the inner shaft.6
Refit the lock ring on the inner shaft.7
CAUTION
The parallel arm system weighs 92 kg.
All lifting accessories used must be sized accord-
ingly!
8
Art. no. is specified in Required
equipment on page 252.
Fit the lifting accessory, parallel arm.9
Art. no. is specified in Required
equipment on page 252
Lift the parallel arm onto the workbench where the
lower arm is placed.
10
Adjust the lower arm in a way that both holes are
parallel.
11
Use a level.
xx1000001380
Apply some grease in the holes in the lower arm
(thick blue arrows).
Note
Do not put grease on the surfaces for the VK covers
(thin red arrow)!
12
Continues on next page
Product manual - IRB 6660 257
3HAC028197-001 Revision: S
