NoteAction
xx1000001315

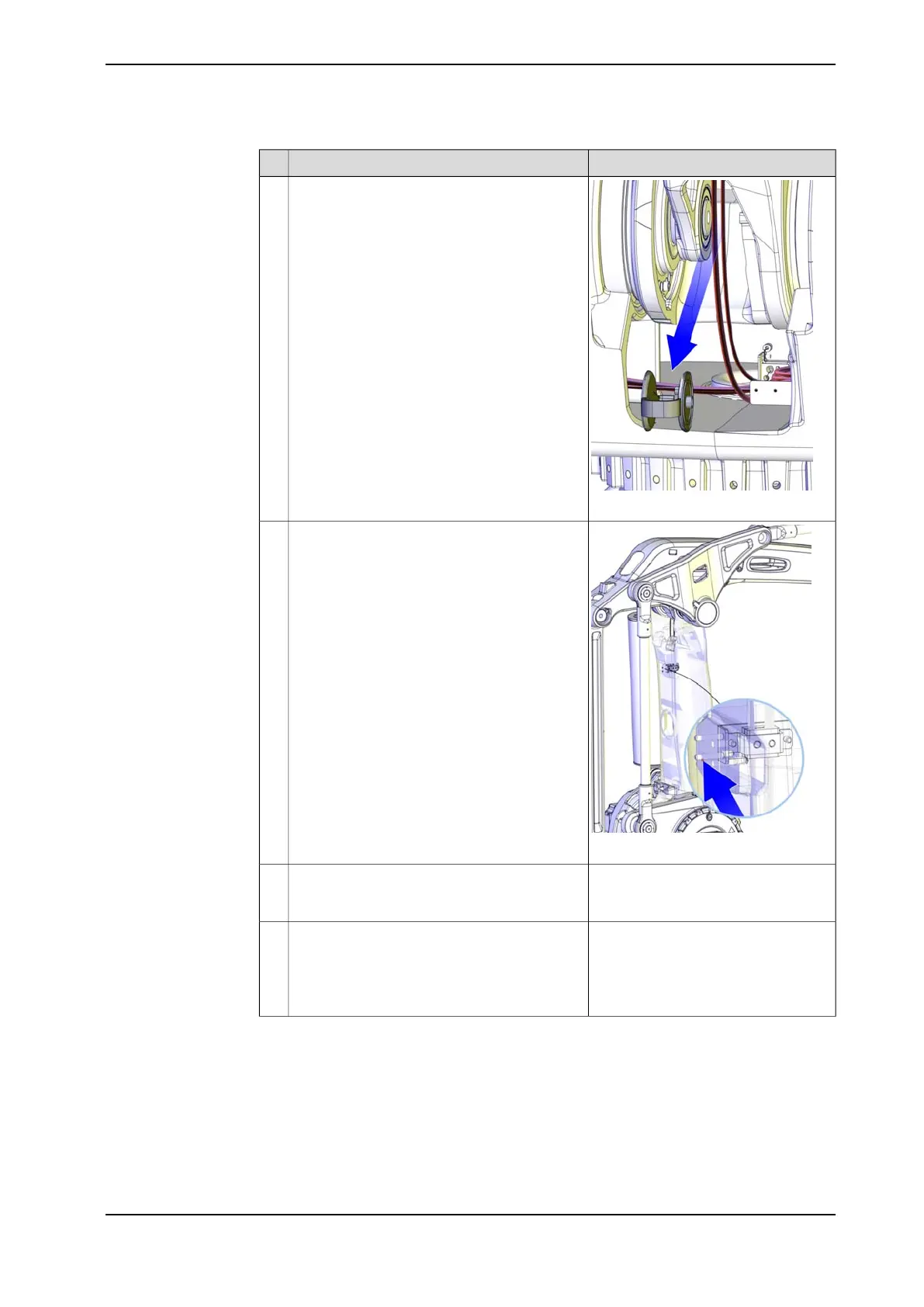

Unscrew the screws of the cable guide axis 2
inside the lower arm and loosen the cable
guide.
6
xx1000001328
Unscrew the nuts (outside the lower arm) that
secure the metal clamp that hold the cable
harness inside the lower arm.
7
Unscrew the screws of the motor covers for
axes 1, 2 and 3 and lift away the covers. This
is done in order to reach the motor connectors.
8
See sections:
• Replacing motor, axis 1 on
page 278
• Replacing motors, axes 2 and 3
on page 284
Disconnect all connectors at motors for axes
1, 2 and 3.
9
Continues on next page
3HAC039838-001 Revision: C 157
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.3.1 Replacing cable harness, lower end (axes 1-3)
Continued
