4.4.7 Replacing the parallel rod

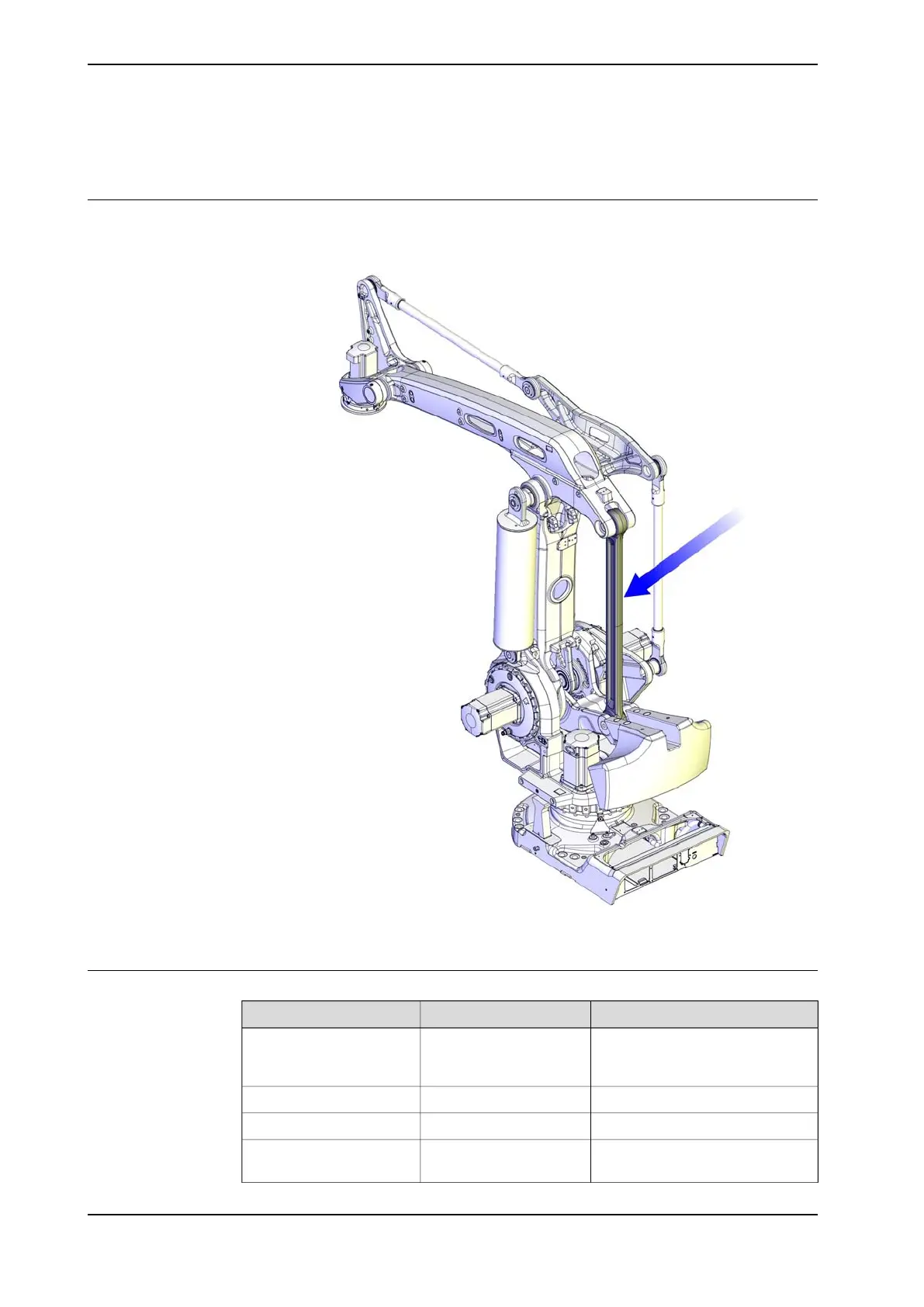

Location of parallel rod
The parallel rod is located as shown in the figure.
xx1000001347
Required equipment
NoteArt.no.Equipment, etc.
For spare part no. see:
• Spare parts on
page 355.
Parallel rod
3HAC5021-1Mounting/Demounting tool
Loctite 2433HAB7116-1Locking liquid
Content is defined in section
Standard tools on page 351.
-Standard toolkit
Continues on next page
