NoteAction
xx1000001310

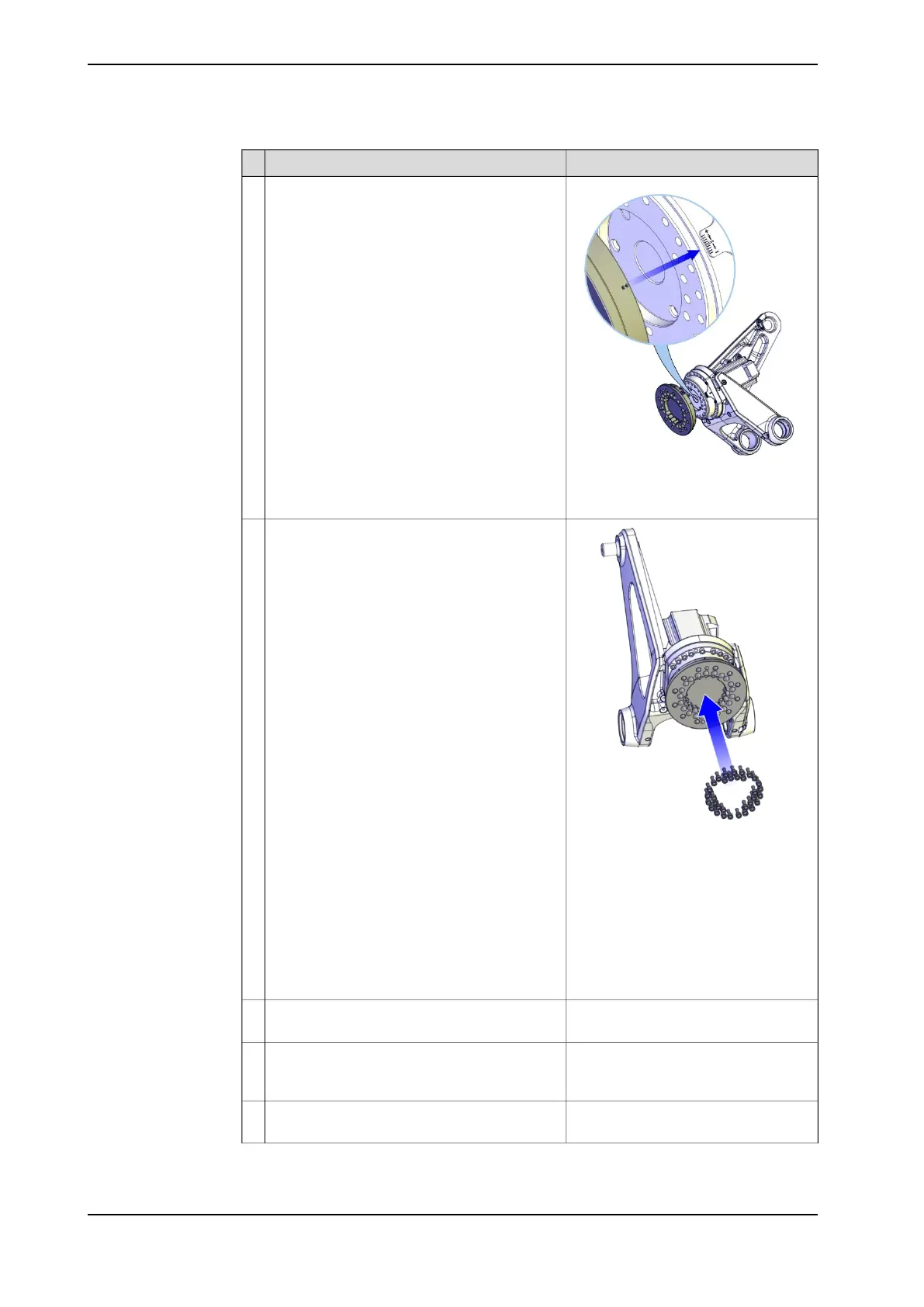

Locate the calibration mark on the turning disk
and place the turning disk at the tilthouse so
that the calibration mark matches the calibration
scale at the tilthouse.
The hole pattern of the turning disk allows the
turning disk to be fitted in three different rotated
positions. Matching the calibration marks
guarantees that the turning disk is fitted at the
correct turn, provided that the axis 6 was set
in calibration position before the turning disk
was removed!
2
xx1000001290
Attachment screws: M10x25 quality
12.9 (33 pcs).
Tightening torque:
• 50 Nm.
Reused screws may be used, providing
they are lubricated as detailed in sec-
tion Screw joints on page 347 before fit-
ting.
Secure the turning disk with its attachment
screws.
3
Detailed in the section Performing a
leak-down test on page 148.
Perform a leak-down test of the gearbox axis
6.
4
See section:
• Changing oil, gearbox axis 6 on
page 135
Refill the axis 6 gearbox with oil.5
Refit any equipment removed during disas-
sembly to the turning disk.
6
Continues on next page
188 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.1 Replacing the turning disk
Continued
