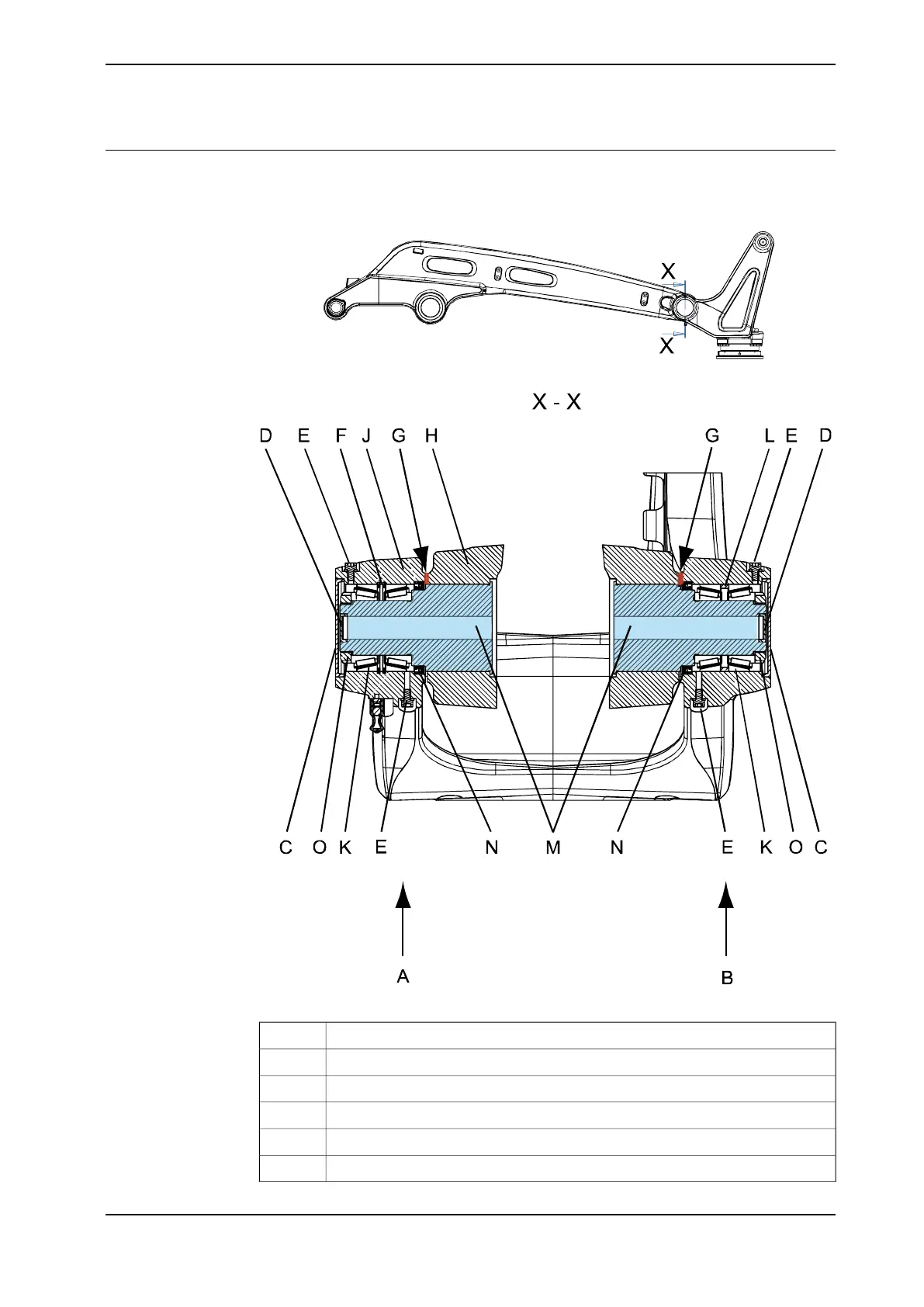

Cut away view of the assembly of the tilthouse unit
The figure shows a cut away view of how the tilthouse unit is fitted to the upper
arm.
xx1000001424
Axis 2 sideA
Axis 3 sideB
VK cover VK 90x8 (2 pcs)C
VK cover VK 19x6 (2 pcs)D
Screw M6x10 quality 8.8-A2F (4 pcs) + Washers (4 pcs)E
Retaining ring, bore Steel 80 (2 pcs)F
Continues on next page
3HAC039838-001 Revision: C 193
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
