NoteAction
xx1100000040

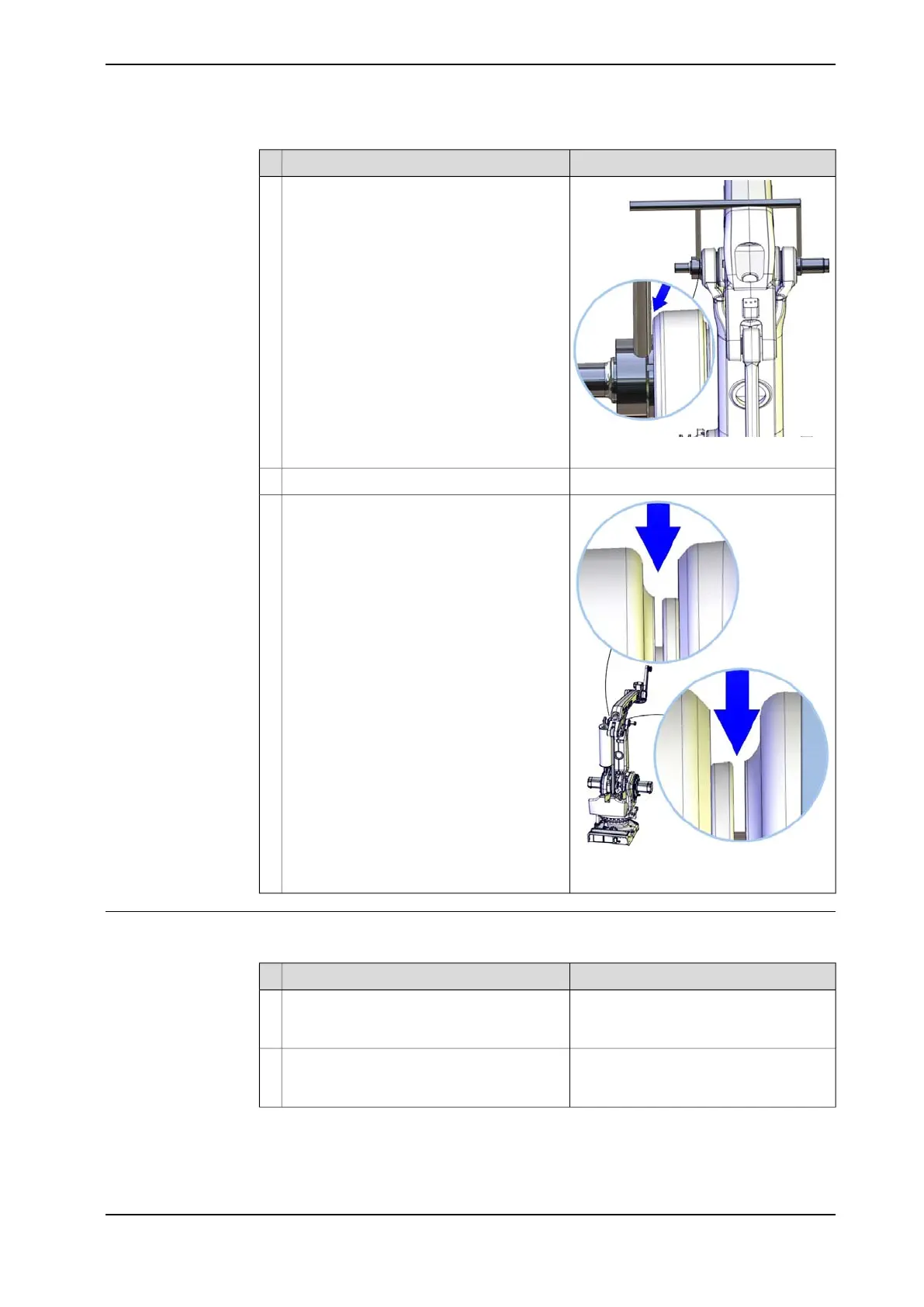

Only applicable to the axis 2 side!
Measure the distance between the slide cal-
iper and the lower arm on the side shown in
the figure, using a feeler gage (0.3 mm).
The measure shall be 0.3 mm.
20
Wipe off residual grease from the shaft.21
xx1100000044
Fill the gaps between upper and lower arms
shown in the figure, with rust preventive
(Mercasol 3106).
22
Refitting the upper arm - concluding procedures
Use this procedure for the concluding refitting of the upper arm.
NoteAction
See section:
• Replacing the parallel rod on
page 244
Refit the parallel rod.1
See section:
• Replacing the tilthouse unit on
page 190
Refit the tilthouse unit.2
Continues on next page
3HAC039838-001 Revision: C 219
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.3 Replacing the upper arm
Continued
