NoteAction
For art. no. see: Required equipment on
page 222.
Lubricate the bearings properly with bearing
grease.
2
For art. no. see:
• Required equipment on page 222
xx1000001086

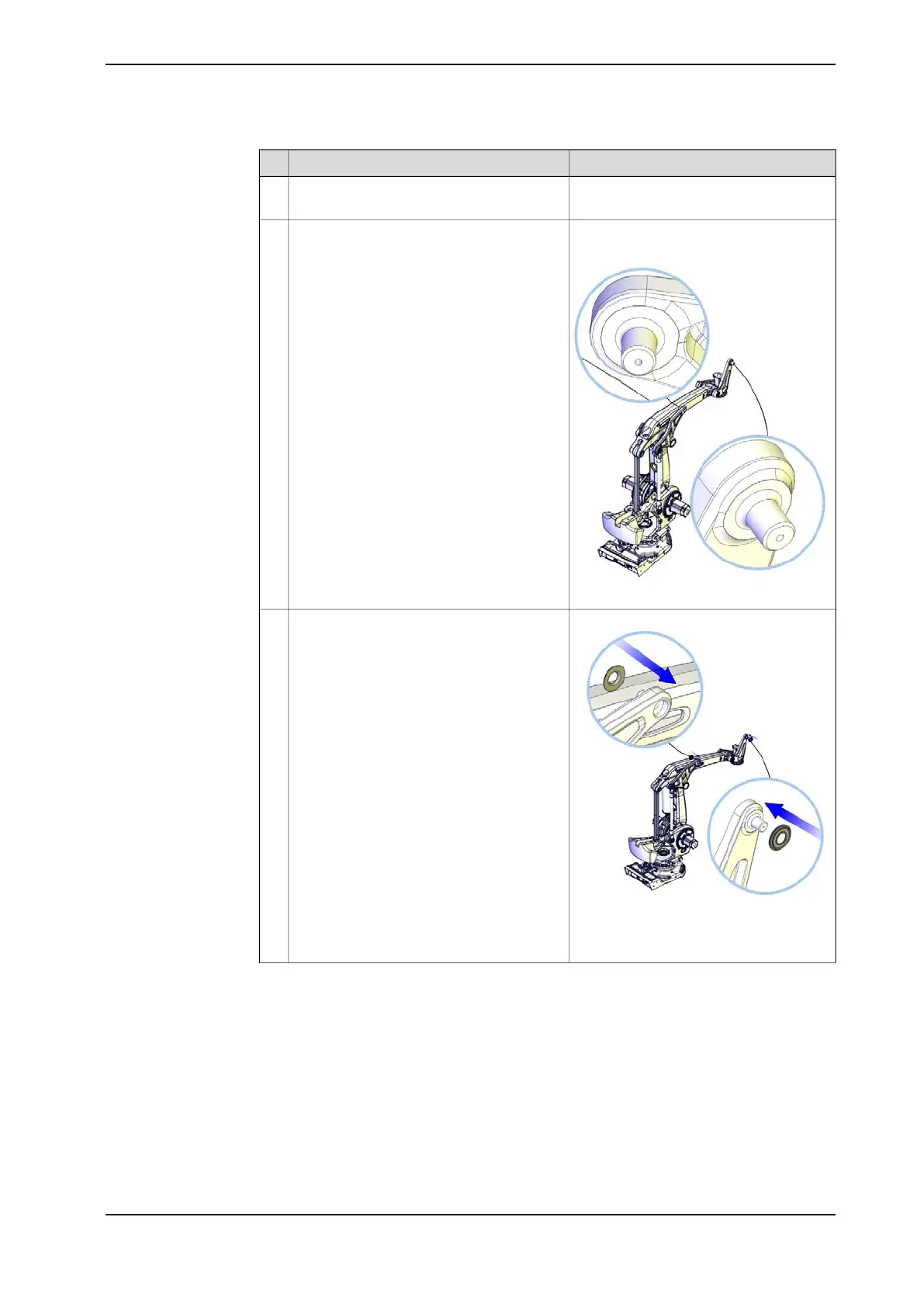

Apply sealing compound Permatex No. 3 on
the surface of both shaft ends where the
spacer rings complete will be fitted.
3
xx1000001263
Refit the spacer rings complete on the shaft
ends of the link and tilthouse.
4
Continues on next page
3HAC039838-001 Revision: C 225
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.4 Replacing linkage - upper link arm
Continued
