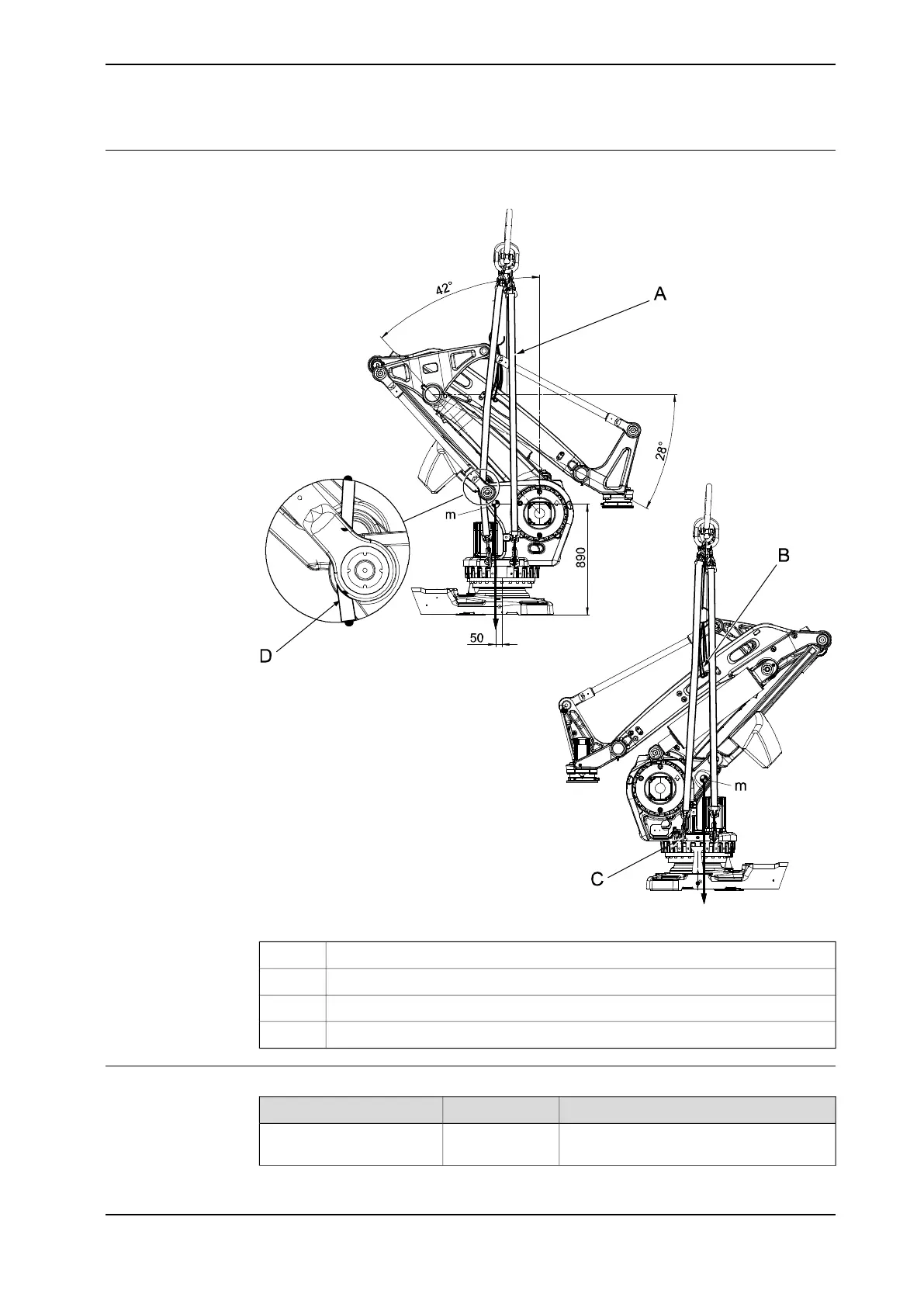

Illustration, lifting slings
The figure below shows how to lift the complete robot with lifting slings.
xx1000001173
Lifting slingsA
Roundsling that secures against rotation, 1 m. Lifting capacity: 2,000 kg.B
Swivelling lifting eyes and hooksC
Note! Make sure to run lifting sling between parallel stag and frame!D
Required equipment
NoteArt. no.Equipment
Includes:
• user instructions (3HAC15971-2).
3HAC15607-1Lifting device, robot
Continues on next page
3HAC039838-001 Revision: C 71
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.3.3 Lifting robot with lifting slings
Continued
