ABB IRB 760 - Page 82

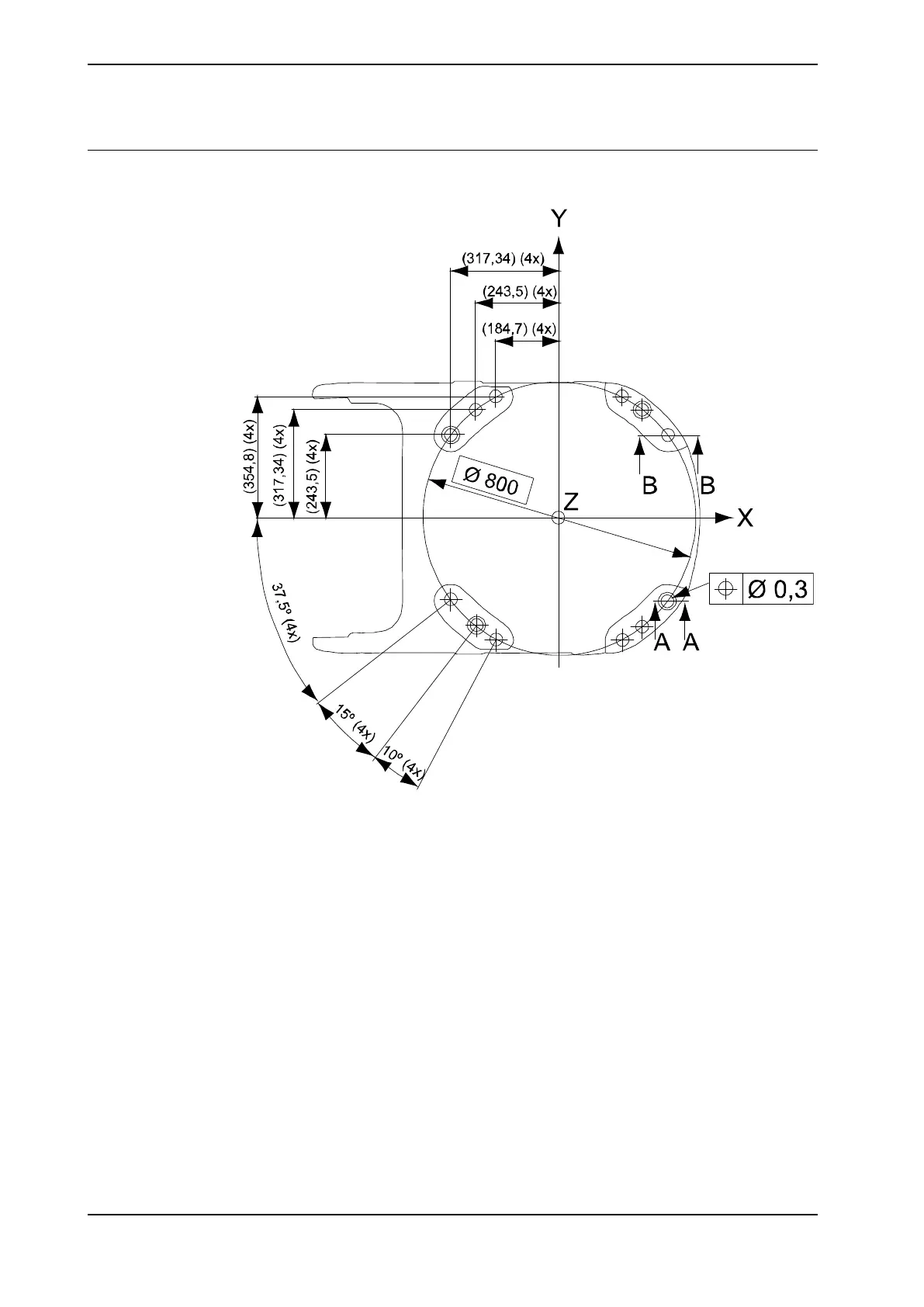

Hole configuration, base
This illustration shows the hole configuration used when securing the robot.
xx1000001050
Continues on next page
82 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
2 Installation and commissioning
2.3.7 Orienting and securing the robot
Continued
