Manual Power Quality Filter PQFM  The PQF-Manager user interface 153

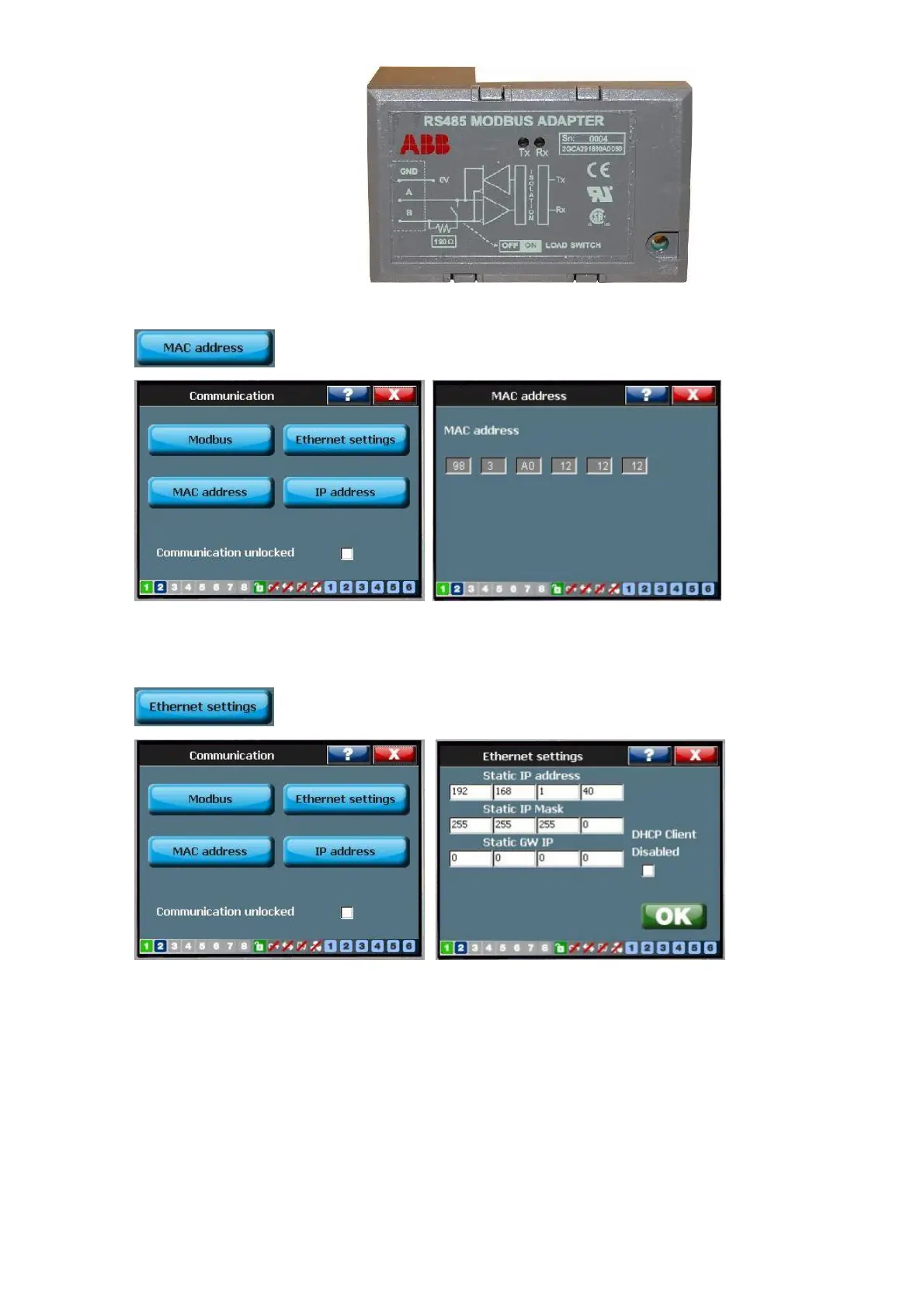

7.11.4.2 MAC address
This menu displays the PQF physical MAC address.
7.11.4.3 Ethernet settings
This menu displays the actual PQF IP address, mask address and gateway IP address.
Depending on the DHCP status, the displayed data may be different.
The below screens give the result for the above Example 1 and 2:
Example 1: The below screen shows the actual IP address fixed with DHCP disabled.
