Manual Power Quality Filter PQFM Mechanical design and installation 35
PQFM 1 unit PQFM 2 units
PQFM 3 units

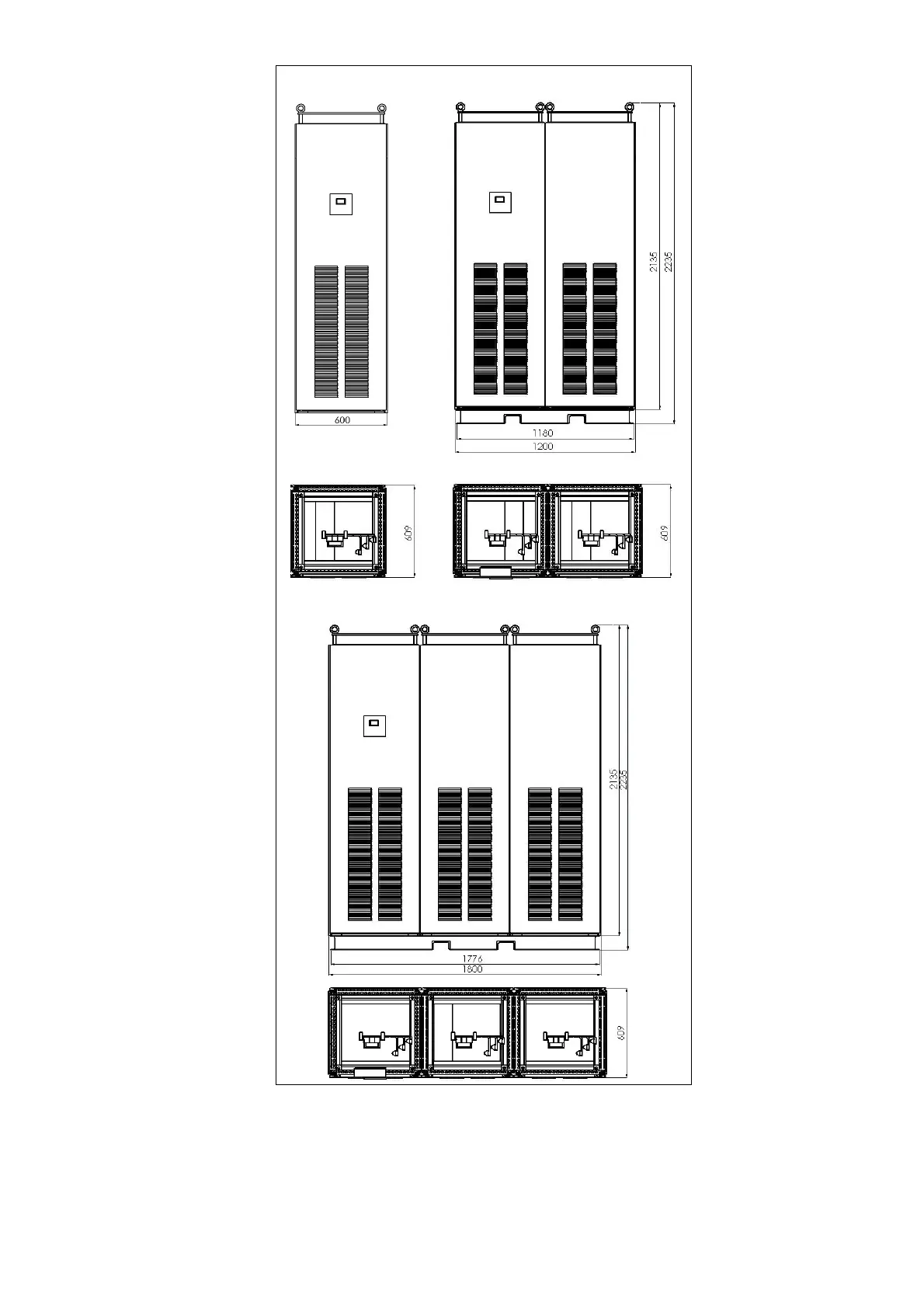

Figure 15: Standard dimensions for PQFM filters with up to 3 power units (base frame for multi-
unit filters is optional)
5.5 Instructions for mounting IP00 and the PQF-Manager in cubicles
PQFM filters can be obtained in plate execution (IP00-version). The total dimensions are
498 x 432 x 1697 mm (WxDxH). Dimensions of the plate are given in Figure 16.
