36 Mechanical design and installation Manual Power Quality Filter PQFM
464
498
Hole for M8 Hole for M8

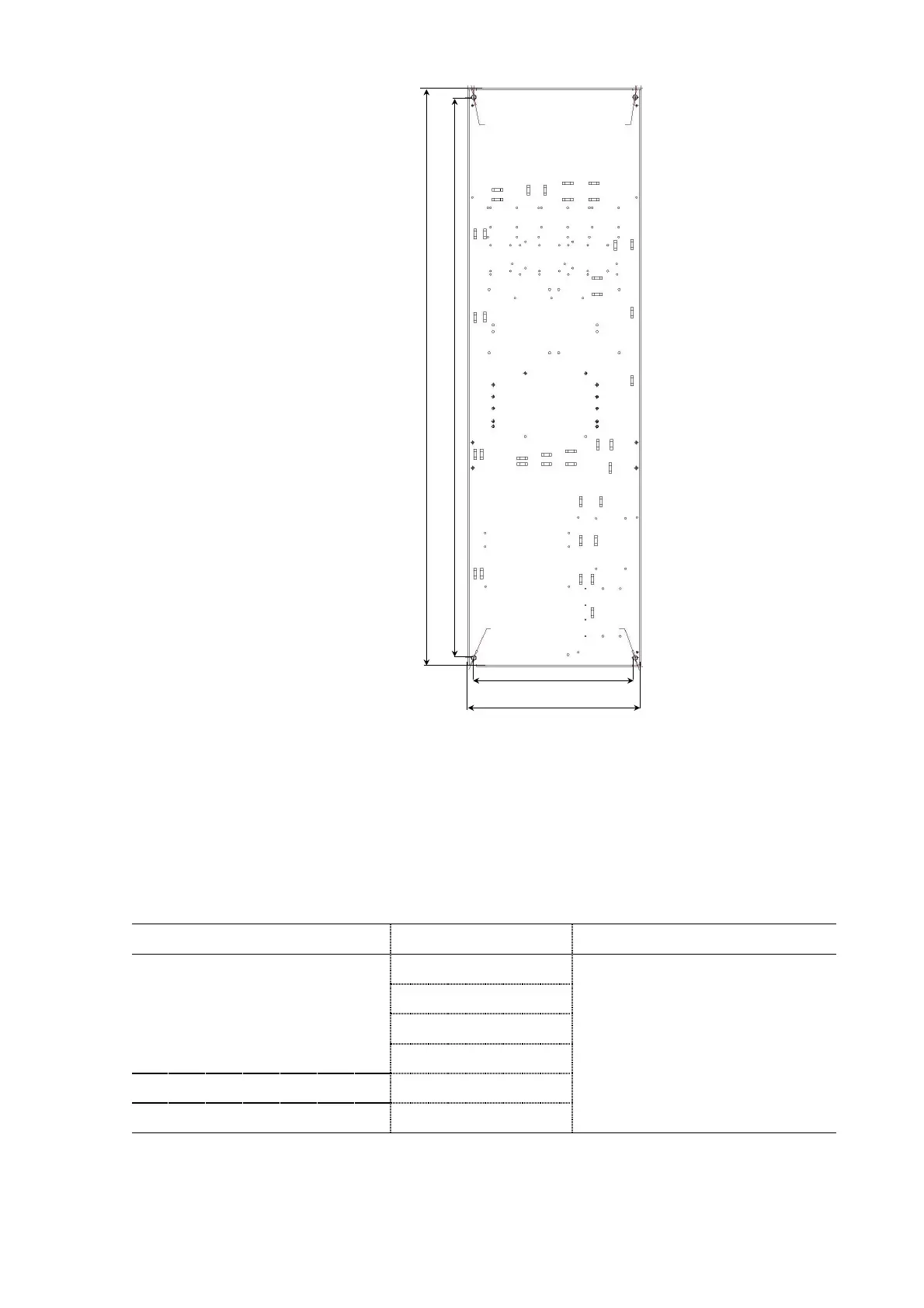

Figure 16: IP00 plate with indication of its physical size and its fixation holes
The plate has to be fixed into the customer’s cubicle. The cubicle has to be in accordance
with ABB’s requirements for cooling and airflow and must have the mechanical strength
to support the PQF plate.Table 16 gives the approximate weights of the IP00 plates for
the different unit ratings.
Table 16: Approximate weights of IP00-plates for different PQFM unit ratings
180
Four holes (for M8 bolts) are present in the plate to lift the plate into a cubicle and to fix
it into the cubicle by means of the fixing parts provided by the cubicle manufacturer.
These holes are located at the four outside corners of the plate.
