Manual Power Quality Filter PQFM  Mechanical design and installation 37

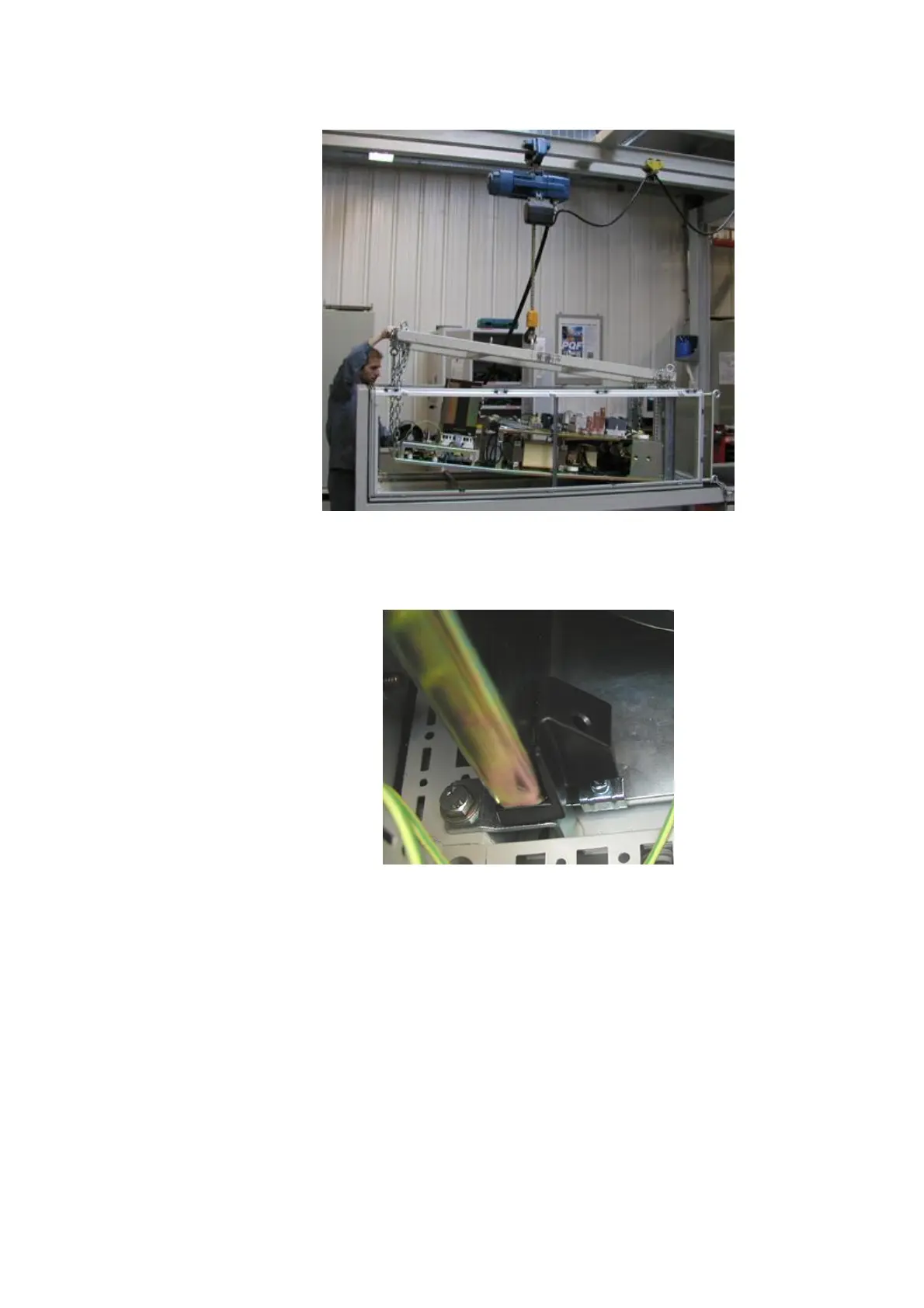

Figure 17 shows how the plate can be lifted and lowered into a cubicle.
Figure 17: Lifting and lowering the IP00 plate into a filter cubicle
Figure 18 shows how a bottom fixation can be realized (example for Rittal cubicles).
Figure 18: Bottom fixation of IP00 plate in a cubicle
Figure 19 shows how a top fixation can be realized (example for Rittal cubicles).
