Manual Power Quality Filter PQFM The PQF-Manager user interface 157
7.11.4.4 IP address
The IP address displayed in Figure 88 indicates the actual (current) IP address prevailing
for the PQF-Manager. For example, the factory default setting of the PQF-Manager IP
address is 192.168.1.40 which appears in the screen under the menu "IP address". Using
the Menu "Ethernet Setting", the user can change this address and when the filter is
reset, the new IP address is copied in the window under menu "IP address".

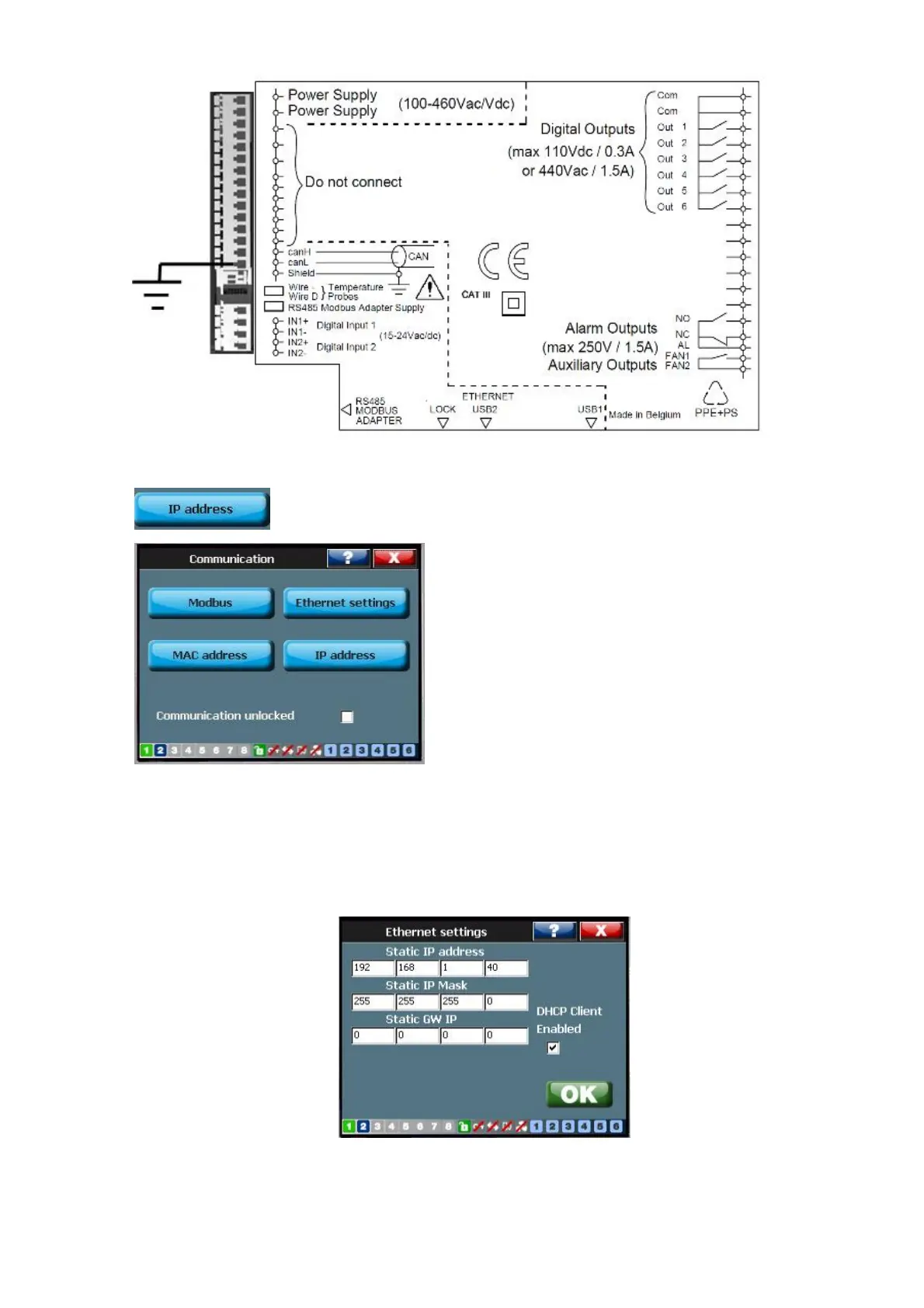

Figure 88 Ethernet settings
If the DHCP client is enabled (see Figure 88), the customer's system automatically
assigns an IP address to the PQF-Manager, which is visible in the window under menu
