Manual Power Quality Filter PQFM  Troubleshooting guide 207
Green LEDis LED2 onthe main controller board and is ‘Armed’
-
indicatoron PQF
-
Manager
RedLEDis LED3
onthemain controller board

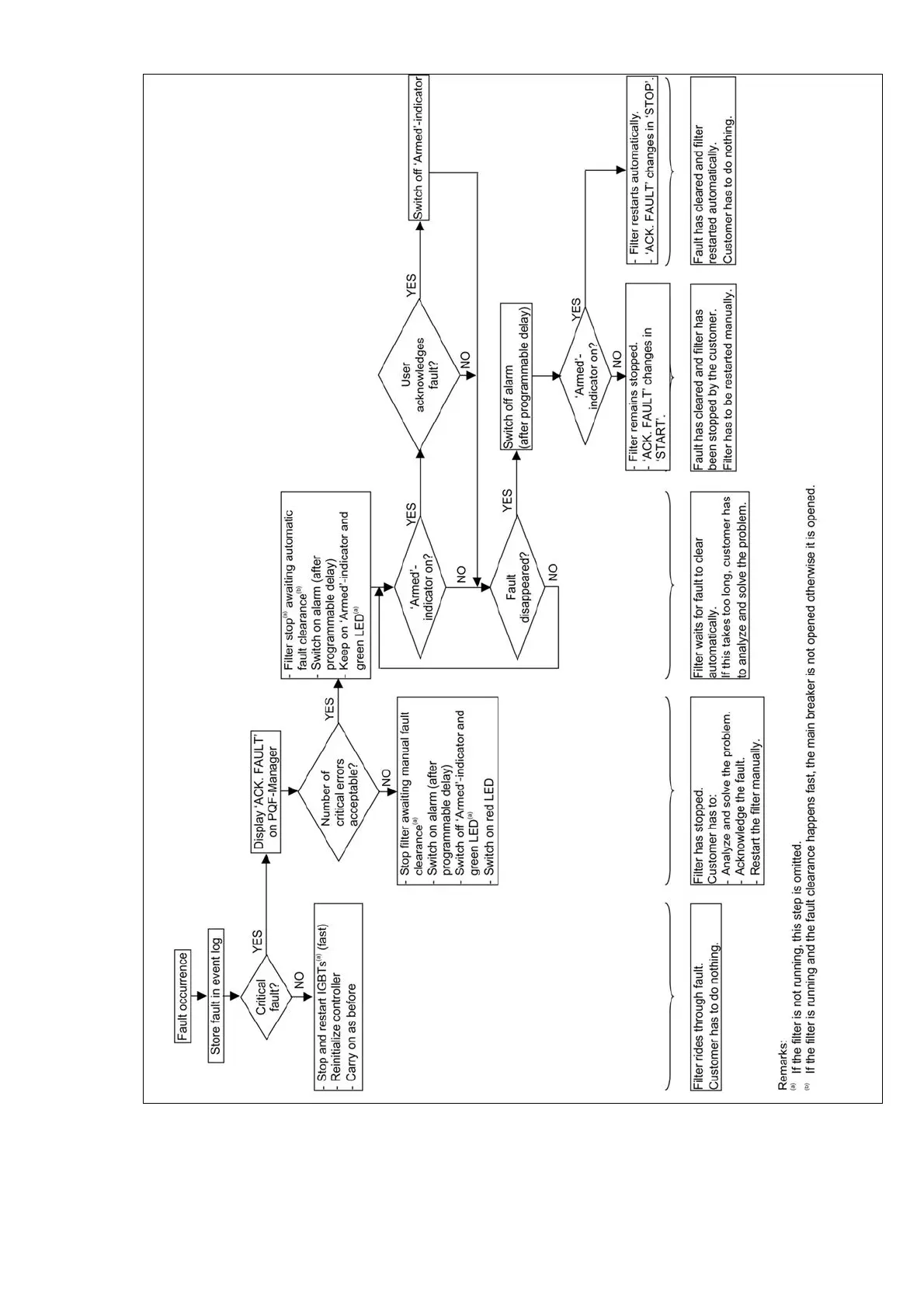

Figure 105: PQF error treatment procedure in flowchart format
