FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
3 Product identification
Name plate
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.
Marking in accordance with Pressure Equipment
Directive 2014/68/EU (pending)
Information on the relevant fluid group
(Figure 4, Position m):
• PED: Fluid 1, Gas
Fluid group 1 = hazardous fluids, liquid, gaseous. (PED =
PressureEquipmentDirective).
• SEP
If the pressure equipment is not in the scope of the
Pressure Equipment Directive, it is classified in
accordance with SEP = Sound Engineering Practice
(‘sound engineering practice’) in accordance with Art. 4
para. 3 of the Pressure Equipment Directive.
If there is no such information at all, there is no compliance
with the requirements of the Pressure Equipment Directive.
Water supplies and connected equipment accessories are
classed as an exception in accordance with guideline 1/16 of
Art. 1 Para. 3.2 of the Pressure Equipment Directive.
Additional warning plate
Devices which are approved for use in potentially explosive
atmospheres have an additional warning plate.Type designation
CE mark (pending)
Power supply
IP rating in accordance with EN 60529
Tamb = maximum permissible ambient temperature
Nominal diameter
Process connection / pressure rating
Calibration value QmaxDN
Excitation frequency
Liner material
Electrode material / Supplementary information:
EE = grounding electrodes
Tmed = maximum permissible measuring medium temperature
Label indicating whether the pressure equipment is subject to
the Pressure Equipment Directive.
Calibration value Sz (zero point), Ss (range)
‘Follow operating instruction’ symbol
‘Caution hot surface’ symbol
(pending)
Manufacturer address
Year of manufacture
Software version
Model number (for more detailed information about the
technical design, refer to the data sheet or the order
confirmation)
Order number / Serial number for identification by the
manufacturer
WARNING - Danger due to electrostatic discharge.
WARNING - Do not open if an explosive atmosphere is present.
WARNING - Hot surface.
Thread for cable glands
1
2
3
4
5
6
7
8
9
j
k
l
m
n
o
p
q
r
s
t
u
v
1
2
3
4

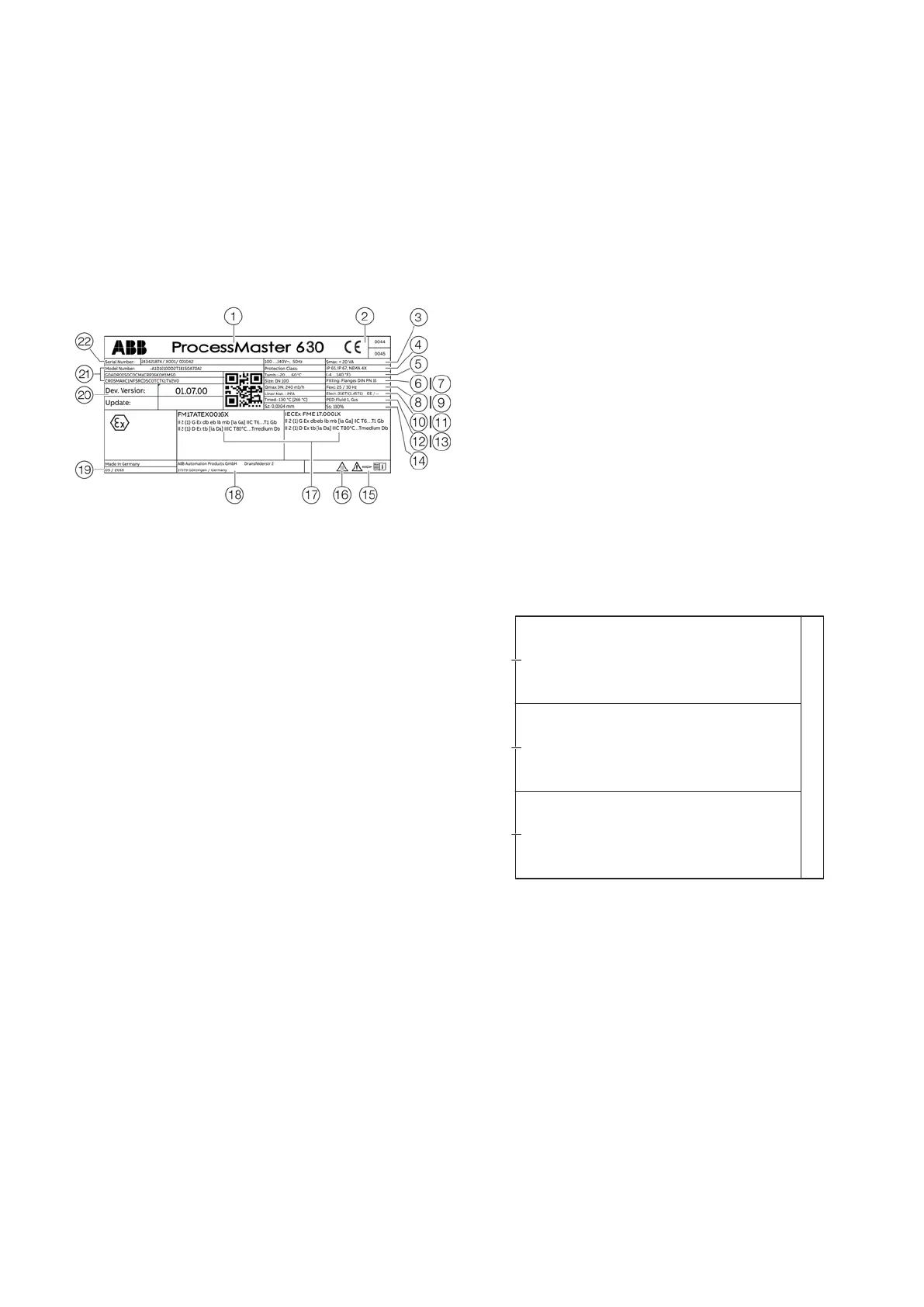

Figure 4 Name plate (example)
Figure 5 Additional warning plate
G12174
Warnung!
Gefahr durch elektrostatische Entladung
Warning!
Danger by electrostatic unloading
AVERTISSEMENT!
Risque de d charge électrostatique
Warnung!
Nicht öffnen, wenn eine explosionsfähige Athmosphäre vorhanden ist.
Warning!
DO NOT OPEN WHEN AN EXLPOSIVE ATMOSPHERE IS PRESENT
AVERTISSEMENT!
Ne pas ouvrir en presence d'une atmosphere explosive
Achtung:
Heisse Oberfläche
Warning:
Hot Surface
Attention:
Surface tres chaude
Cable entries: M20 x 1,5
1
2
3
4
Note
Devices with 3A approval SIL are labeled with an additional
plate.
