FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
5 ...Installation
Installing the plug-in cards
Optional plug-in cards
The transmitter has two slots (OC1, OC2) into which plug-in cards can be inserted to extend inputs and outputs. The slots are
located on the transmitter motherboard and can be accessed after removing the front housing cover.
*The ‘Number’ column indicates the maximum number of plug-in cards of the same type that can be used.
Loss of Ex Approval!
Loss of Ex Approval due to retrofitting of plug-in cards on devices for use in potentially explosive atmospheres.
• Devices for use in potentially explosive atmospheres may not be retrofitted with plug-in cards.
• If devices are to be used in potentially explosive atmospheres, the required plug-in cards must be specified when the
order is placed.
WARNING

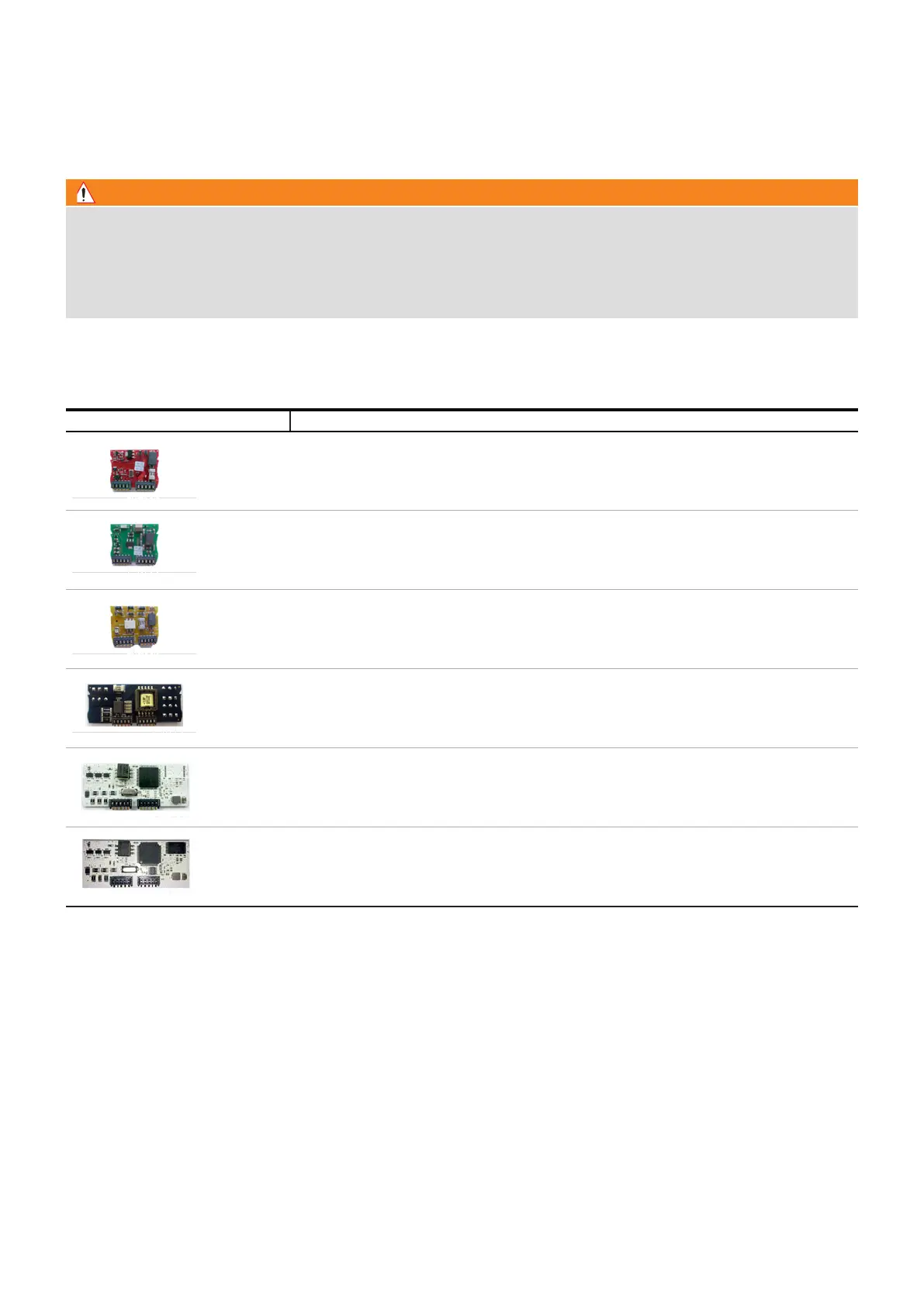

Plug-in card Description Quantity*
Maximum of two plug-in cards
Passive digital output (green)
Maximum of one plug-in card
Passive digital input (yellow)
Maximum of one plug-in card
Maximum of one plug-in card
Maximum of one plug-in card
Profibus DP (white)
Maximum of one plug-in card
