26
FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
5 ...Installation
...Installing the plug-in cards
Cover
LCD indicator
Frontend board (FEB, with integral mount design only)
Slot OC2
Slot OC1
Plug-in cards
1
2
3
4
5
6

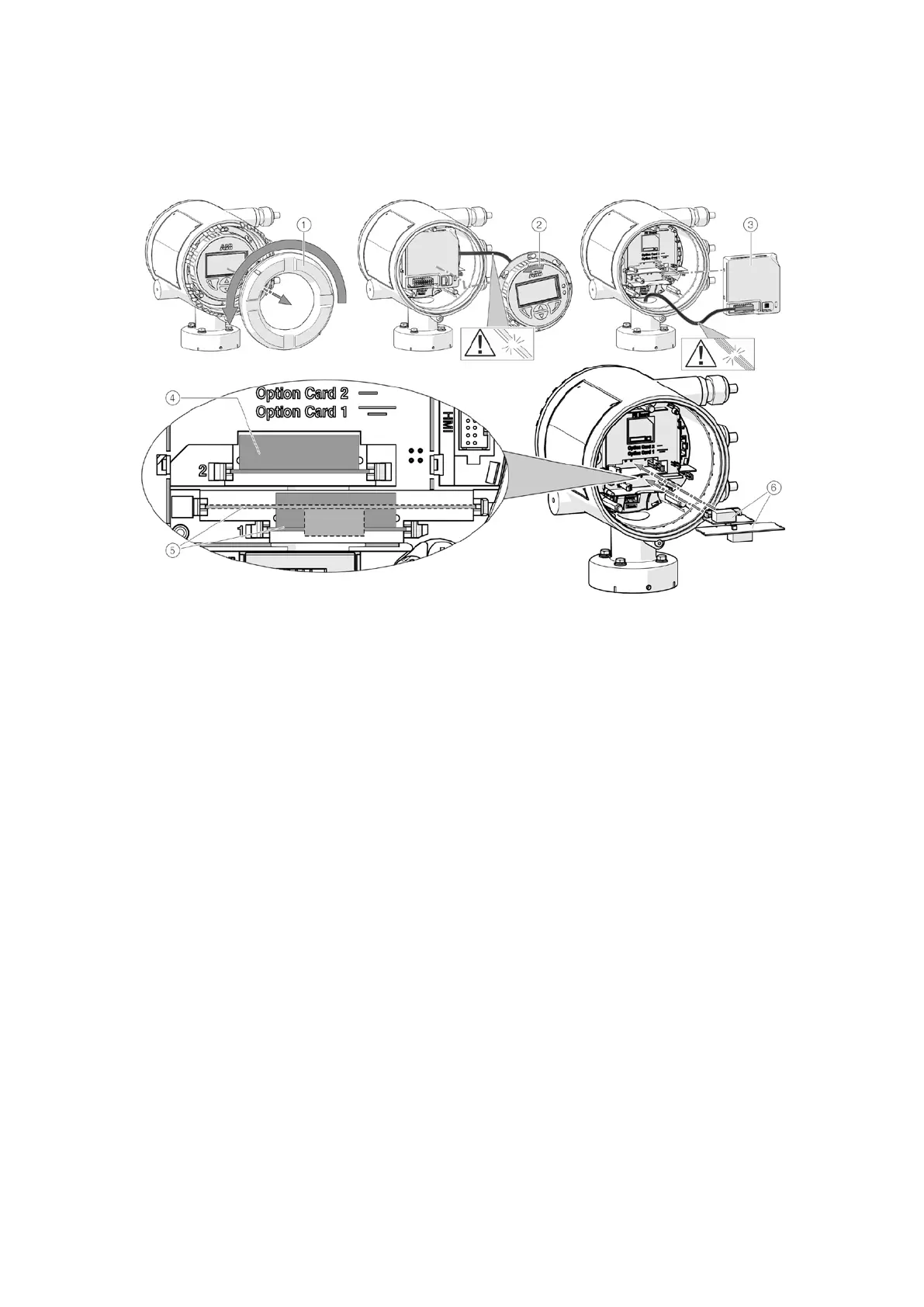

Figure 26 Installation of plug-in cards (example, dual-compartment housing)
