FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
...7 Commissioning
Configuration via the infrared service port adapter on the
service port adapter.
By combining the HART-DTM and the software ‘flow’ available
at www.abb.com/ABB AssetVision, all parameters can also be
set without a HART connection.
For more detailed information on operating the software and
the HART modem, please refer to the relevant operating
instructions and the DTM online help.
Configuration via the HART interface of the device requires a
PC / Notebook and a suited HART® Modem.
All parameters can also be set via the HART protocol, using
the HART DTM available at www.abb.com/flow and theABB
AssetVisionsoftware.
1 Position the infrared service port adapter on the front
plate of the transmitter as shown
2 Insert USB interface cable into a free USB female
connector on the PC / notebook.
3 Switch on the device power supply.
4 Start ABB AssetVision and perform the parameterization
of the equipment.
Detailed information on operating the software is available in
the relevant operating instructions and the DTM online help.
Infrared service port adapter
USB-interface cable
PC / Notebook running ABB AssetVision and HART DTM
PC / Notebook running ABB AssetVision and HART DTM
HART modem
Power supply unit
1
2
3
1
2
3

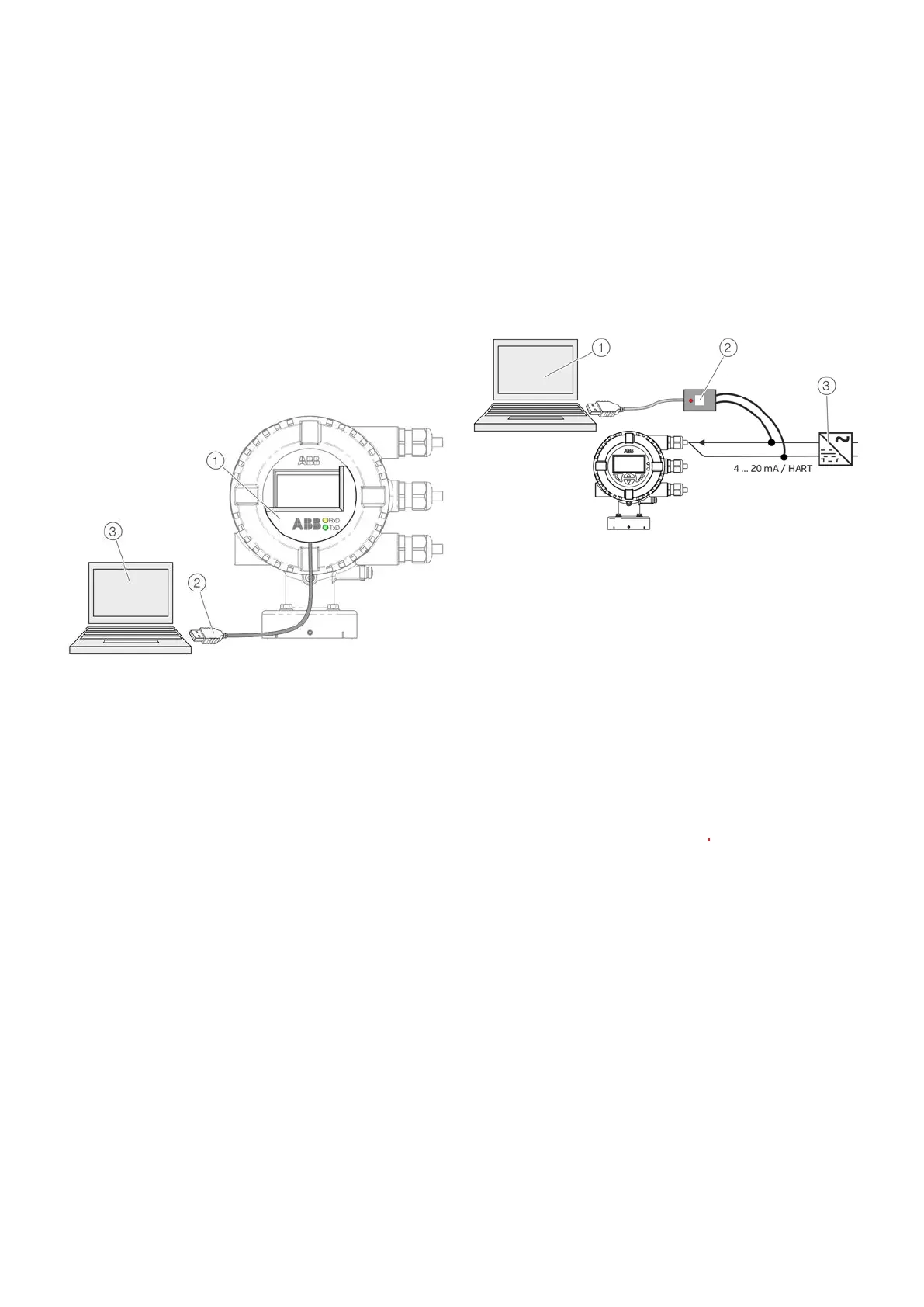

Figure 65 Infrared service port adapter
on the transmitter (example)
Figure 66 HART Modem on the transmitter (example)
