ABB ProcessMaster FEM631 - Connection to Remote Mount Design

45
FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
6 ...Electrical connections
...Pin assignment
Connection to remote mount design
Dual- compartment housing
Transmitter

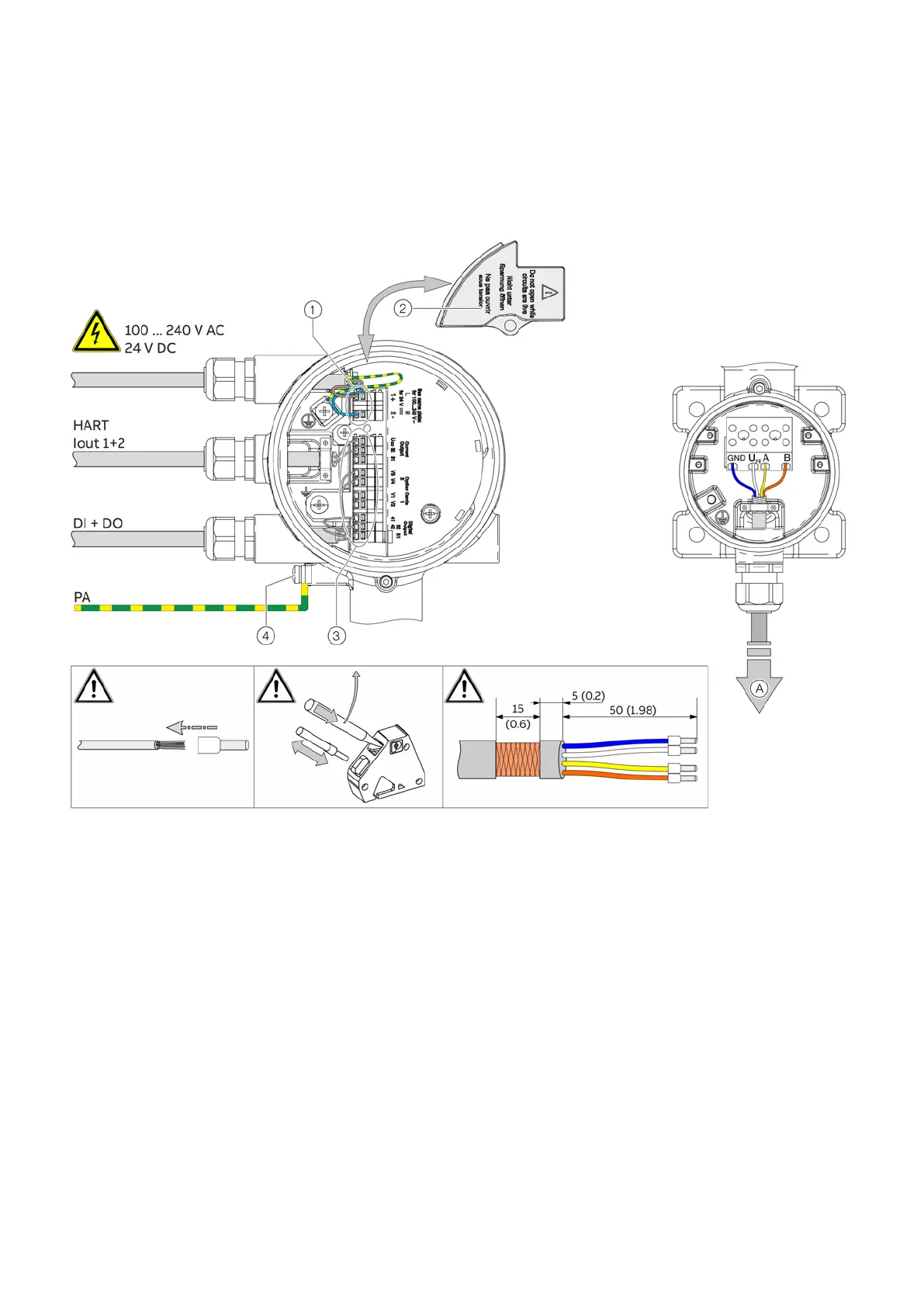

Figure 55 Electrical connection to transmitter in remote mount design [example, dimensions in mm (in)]
Upper terminal box (back side)
Lower terminal box
Signal cable to sensor
Terminals for power supply
Cover for power supply terminals
Terminals for signal cable
Terminals for inputs and outputs
Terminal for potential equalization
A
B
C
1
2
3
4
5
