62
FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A
8 ...Operation
Process display Switching to the information level
On the information level, the operator menu can be used to
display diagnostic information and choose which operator
pages to display.
Measuring point tagging
Current process values
‘Button function’ symbol
‘Parameterization protected’ symbol
1
2
3
4

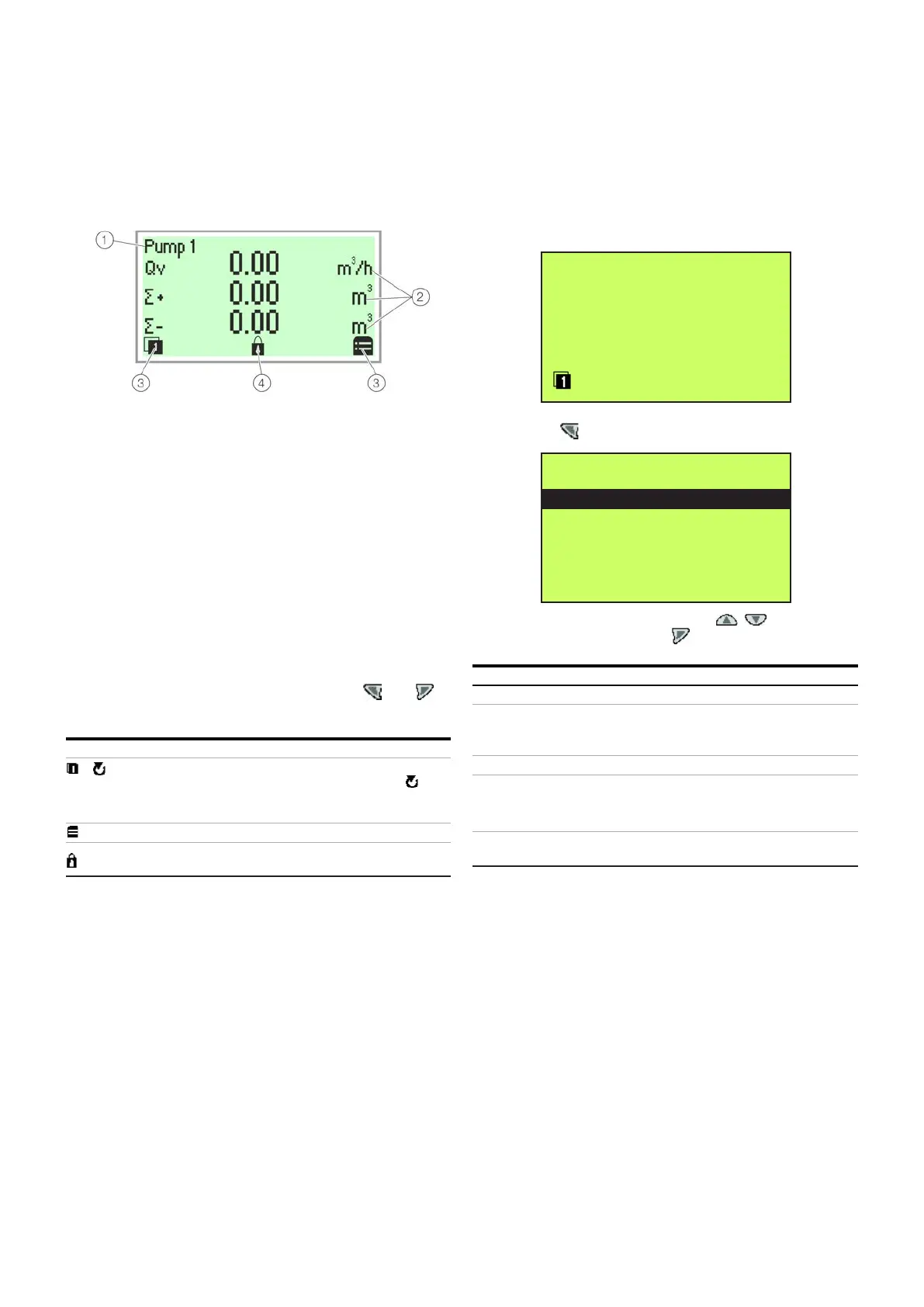

Figure 68 Process display (example)
The process display appears on the LCD display when the
device is powered on. It shows information about the device
and current process values.
The way in which the current process values are shown can be
adjusted on the configuration level.
The symbols at the bottom of the process display are used to
indicate the functions of the operating buttons and ,
in addition to other information.
1 Open the using Operator Menu.
2 Select the desired submenu using / .
3 Confirm the selection with .
Process display
Operator Menu
Diagnostics
Operator Page 1
Operator Page 2
Back Select
Menu Description
… / Operator Menu
Diagnostics
Selection of sub-menu ‘Diagnostics’; see also
Error messages on the LCD display
Selection of operator page to be displayed.
Autoscroll
When ‘Autoscroll‘ is activated, automatic
switching of the operator pages is initiated on
the process screen.
Signals View
Selection of submenu ‘Signals View’ (only for
service purposes).
Symbol Description
/
Call up information level.
When Autoscroll mode is activated, the icon
appears here and the operator pages are
automatically displayed one after the other
Call up configuration level.
The device is protected against changes in the
parametrization.
To Next Page
