24
FEM630 | ELECTROMAGNETIC FLOWMETER | OI/FEM630-EN REV. A

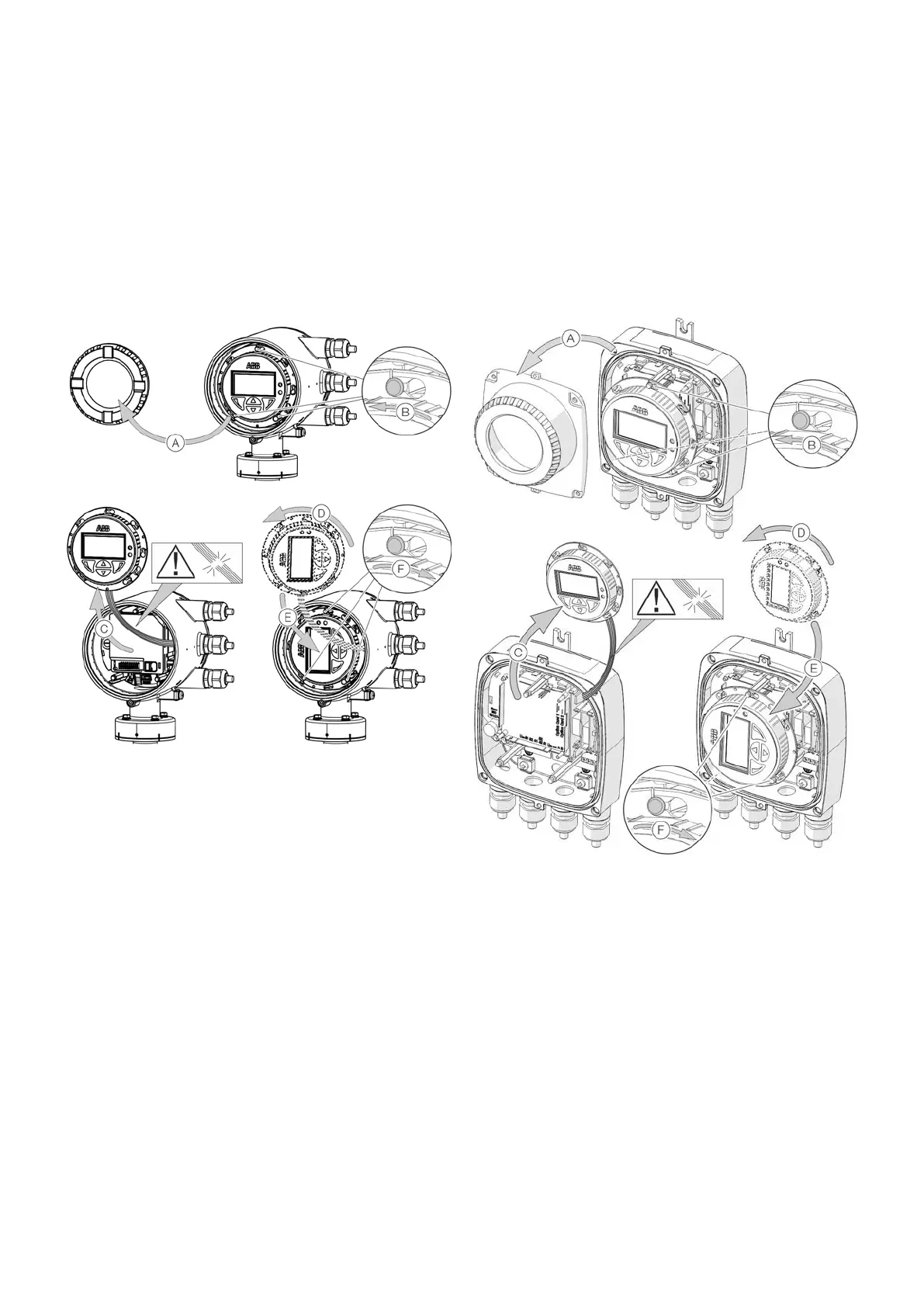

Figure 24 Rotating the LCD indicator
Figure 25 Rotating the LCD indicator
Turn the LCD indicator:
Perform steps A to F.
Turn the LCD indicator:
Perform steps A to F.
5 ...Installation
Rotate LCD indicator – dual-compartment
housing
each. To open and close the housing, refer to Opening and
closing the housing on page 22.
Rotate LCD indicator – single-compart-
ment housing
each. To open and close the housing, refer to Opening and
closing the housing on page 22.
