151
X12
X13
X11
X14
X6
X7
X8
ON
ON
ON
ON
ON
ON
4-Wire
2-Wire
A040357_2

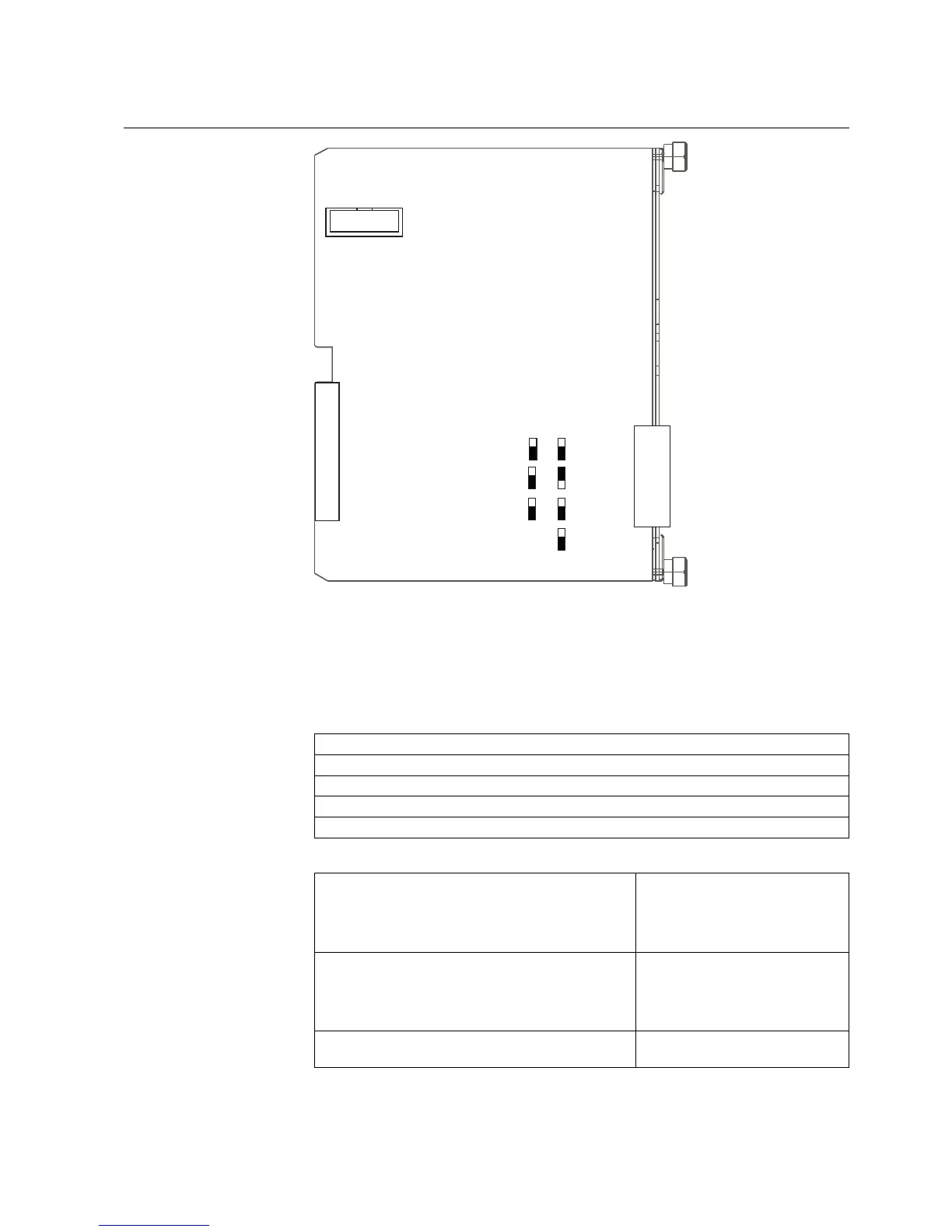

Fig. 5.2.3.-3 Jumper location on the DNP 3.0 communication module
5.2.4. Technical data
Table 5.2.4.-1 Dimensions (for dimension drawings, refer to the Installa-
tion Manual)
Width, frame 177 mm, case 164 mm
Height, frame 177 mm (4U), case 160 mm
Depth, case 149.3 mm
Weight of the relay ~3.5 kg
Weight of the spare unit ~1.8 kg
Table 5.2.4.-2 Power supply
U
aux
rated:
-REF610CxxHxxx U
r
= 100/110/120/220/240 V AC
U
r
= 110/125/220/250 V DC
-REF610CxxLxxx U
r
= 24/48/60 V DC
U
aux
variation (temporary):
-REF610CxxHxxx 85...110% of U
r
(AC)
80...120% of U
r
(DC)
-REF610CxxLxxx 80...120% of U
r
(DC)
Burden of auxiliary voltage supply under quiescent
(P
q
)/operating condition
<9 W/13 W
Feeder Protection Relay
Technical Reference Manual - ANSI Version
REF610REF610
1MRS755535
