14.1.2.2 Function block
The available function blocks of an IED are depending on the actual hardware (TRM)
and the logic configuration made in PCM600.
CVMMXN
I3P*
U3P*
S
S_RANGE
P_INST
P
P_RANGE
Q_INST
Q
Q_RANGE
PF
PF_RANGE
ILAG
ILEAD
U
U_RANGE
I
I_RANGE
F
F_RANGE
IEC08000222.vsd
IEC08000222 V1 EN

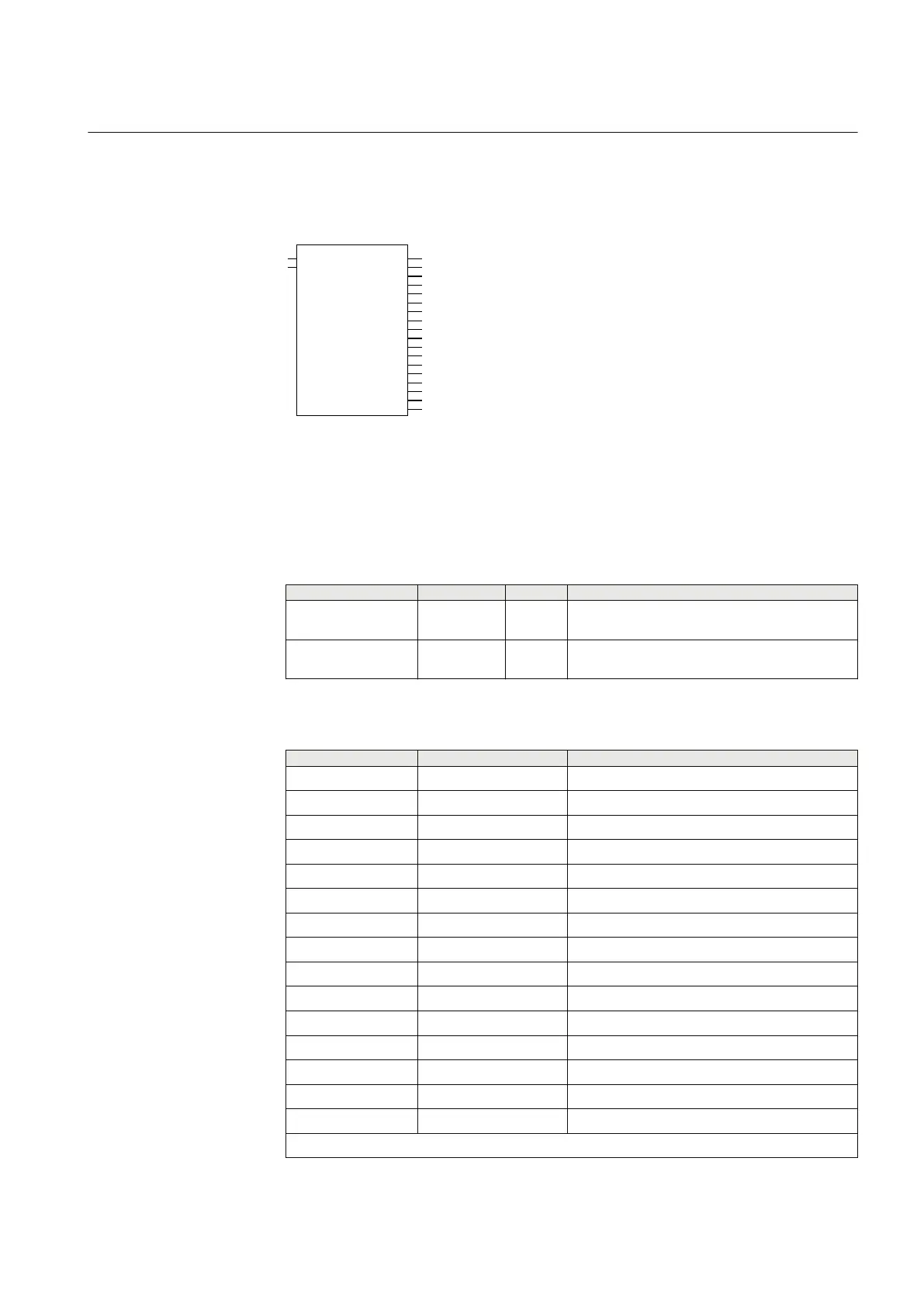

Figure 235: CVMMXN function block
14.1.2.3 Signals
Table 345: CVMMXN Input signals
Name
Type Default Description
I3P GROUP
SIGNAL
- Three phase group signal for current inputs
U3P GROUP
SIGNAL
- Three phase group signal for voltage inputs
Table 346: CVMMXN Output signals
Name
Type Description
S REAL Apparent power magnitude of deadband value
S_RANGE INTEGER Apparent power range
P_INST REAL Active power
P REAL Active power magnitude of deadband value
P_RANGE INTEGER Active power range
Q_INST REAL Reactive power
Q REAL Reactive power magnitude of deadband value
Q_RANGE INTEGER Reactive power range
PF REAL Power factor magnitude of deadband value
PF_RANGE INTEGER Power factor range
ILAG BOOLEAN Current is lagging voltage
ILEAD BOOLEAN Current is leading voltage
U REAL Calculated voltage magnitude of deadband value
U_RANGE INTEGER Calcuated voltage range
I REAL Calculated current magnitude of deadband value
Table continues on next page
