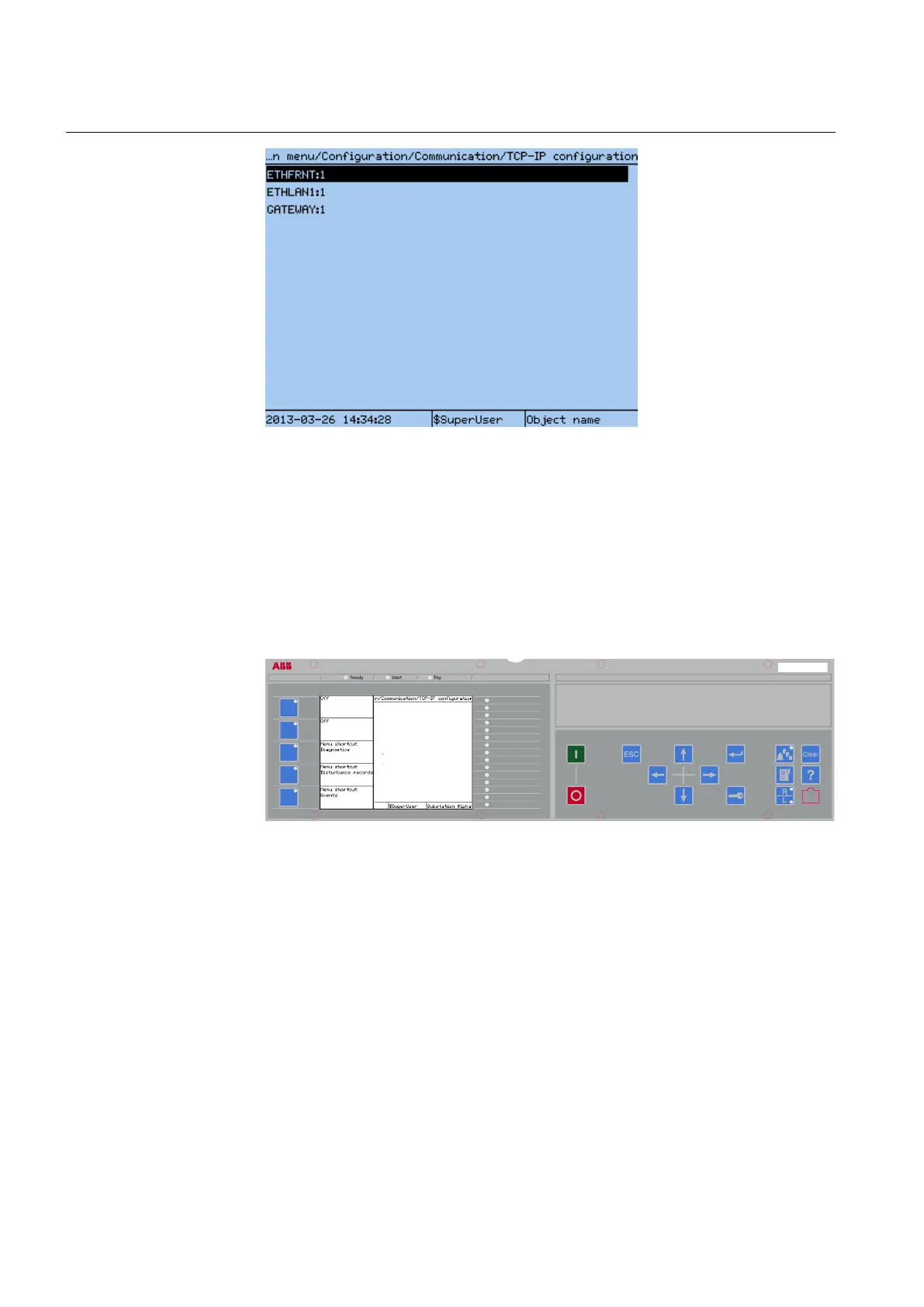

Figure 9: Truncated path
The number before the function instance, for example ETHFRNT:1, indicates the
instance number.
The function button panel shows on request what actions are possible with the
function buttons. Each function button has a LED indication that can be used as a
feedback signal for the function button control action. The LED is connected to the
required signal with PCM600.
IEC12000025 V2 EN
Figure 10: Function button panel
The alarm LED panel shows on request the alarm text labels for the alarm LEDs. Three
alarm LED pages are available.
Section 5 1MRK 502 048-UEN A
Local Human-Machine-Interface LHMI
66
Technical manual
