IEC13000063 V1 EN

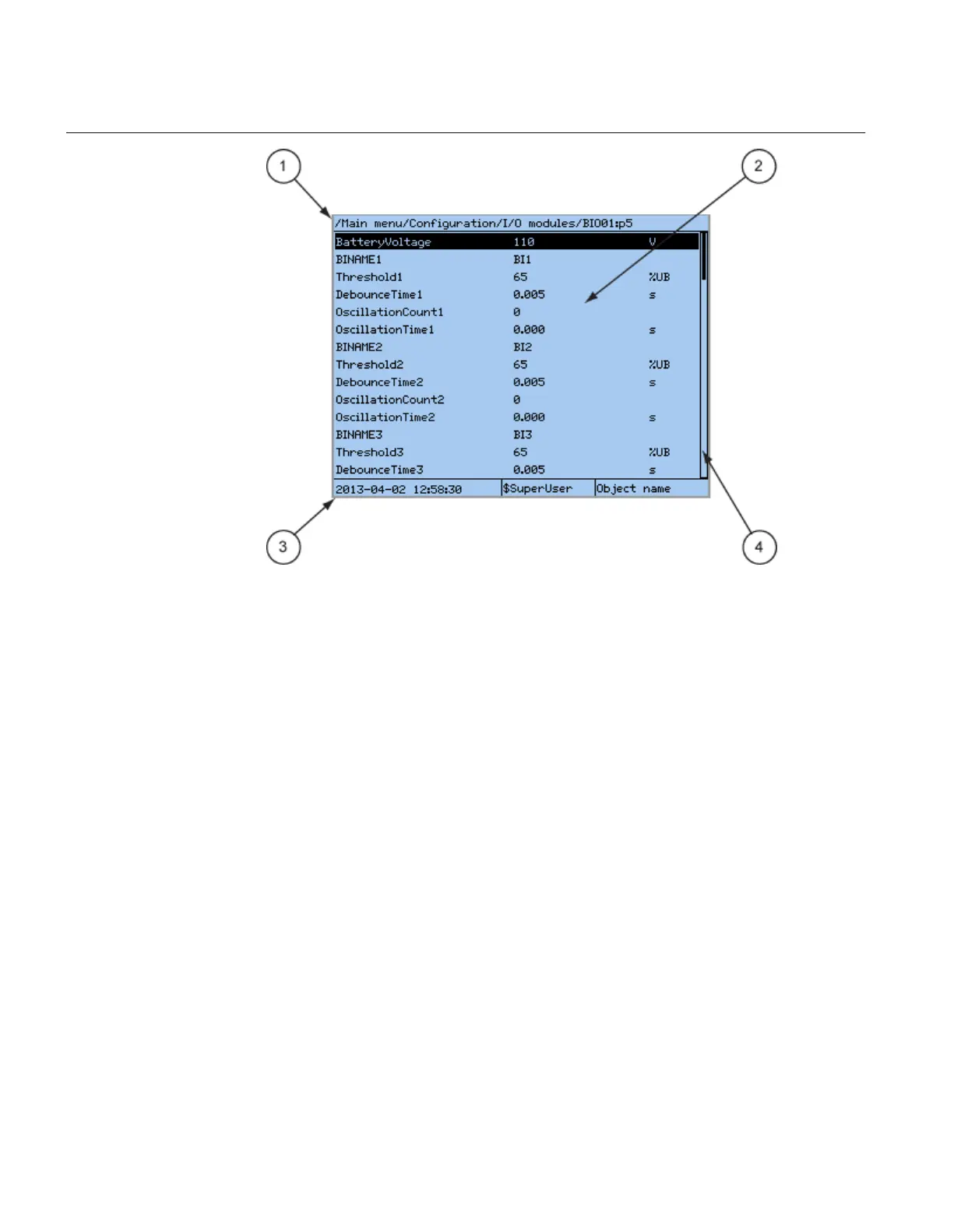

Figure 45: Display layout
1
Path
2 Content
3 Status
4 Scroll bar (appears when needed)
The function button panel shows on request what actions are possible with the function
buttons. Each function button has a LED indication that can be used as a feedback signal
for the function button control action. The LED is connected to the required signal with
PCM600.
Section 5 1MRK 506 334-UUS A
Local human-machine interface
106
Application manual
