REL650 A01A – 5 Distance Zones, Single Breaker
10AI (4I+1I+5U)
SMB RREC
79 0->1
SMP PTRC
94 1->0
TCS SCBR
Cond
SPVN ZBAT
Cond
Other configured functions
OV2 PTOV
59 U>
PH PIOC
50 3I>>
CC RBRF
50BF 3I> BF
V MMXU
Meter.
189
289
989
989G
389G
289G
BUS1
BUS2
V MSQI
Meter.
DRP RDRE
Mont.
EF PIOC
50N IN>>
CC RPLD
52PD PD
S SCBR
Cond
LF PTTR
26 q>
EF4 PTOC
51N/67N
IN>
OC4 PTOC
51/67 3I>
BRC PTOC
46 Iub
SDEPSDE
67N IN<->
STB PTOC
50STB
I>
UV2 PTUV
27 U<
LOV PTUV
27 U<
ZQM PDIS
21 Z<
FMPS PDIS
Ph Sel
ZDN RDIR
21 Z<->
ZM RPSB
68
ZCV PSOF
SOTF
LMB RFLO
Monit.
SES RSYN
25 SYNC
ZC PSCH
85
ZCRW PSCH
85
ETP MMTR
Wh<->
CV MMXN
Meter.
EC PSCH
85
ECRW PSCH
85
SDD RFUFC MMXU
Meter.
C MSQI
Meter.
IEC61850
ANSI IEC
Function Enabled
in Settings
1000/5
132kV/110V
132kV/110V
132 kV Bus
Line data
Line length: 50km
Positive sequence line impedance: 0.195+j*0.410 Ohms-Primary/km
Zero sequence line impedance: 0.400+j*1.310 Ohms-Primary/km
ANSI11000132_2_en.vsd
VNMMXU
Meter.
Function Disabled in
Settings
IEC61850
ANSI IEC
132kV/110V
52
ANSI11000132 V2 EN

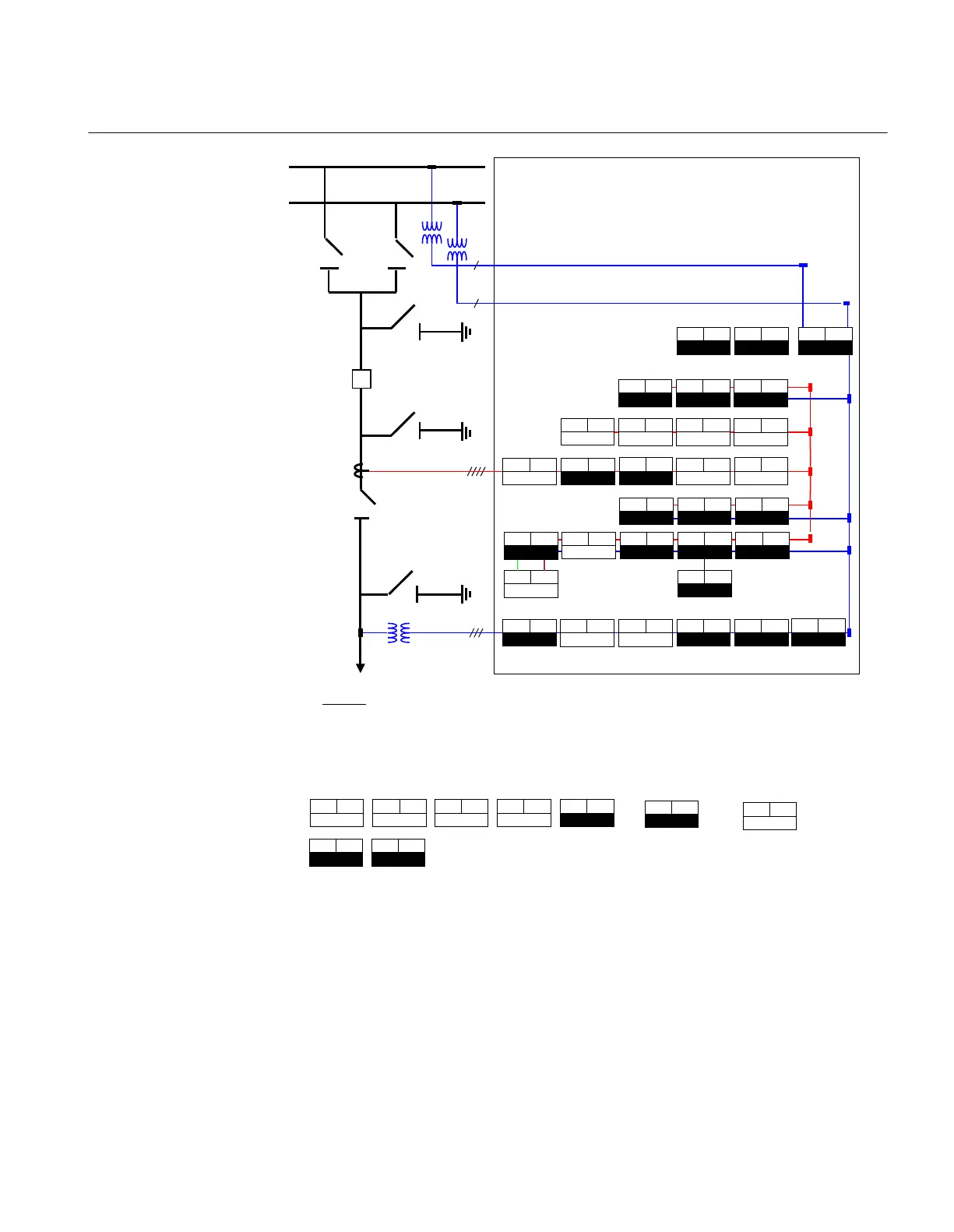

Figure 2: A typical protection application for quadrilateral distance zones in a single
breaker arrangement
1MRK 506 334-UUS A Section 2
Application
