ABB UMC22-FBP User Manual

- 11 - UMC22-FBP
Universal Motor Controller UMC22-FBP
Software version 4.0
FieldBusPlug / Issue: 02.2008
V 6
2. Device construction
2.1 Overview

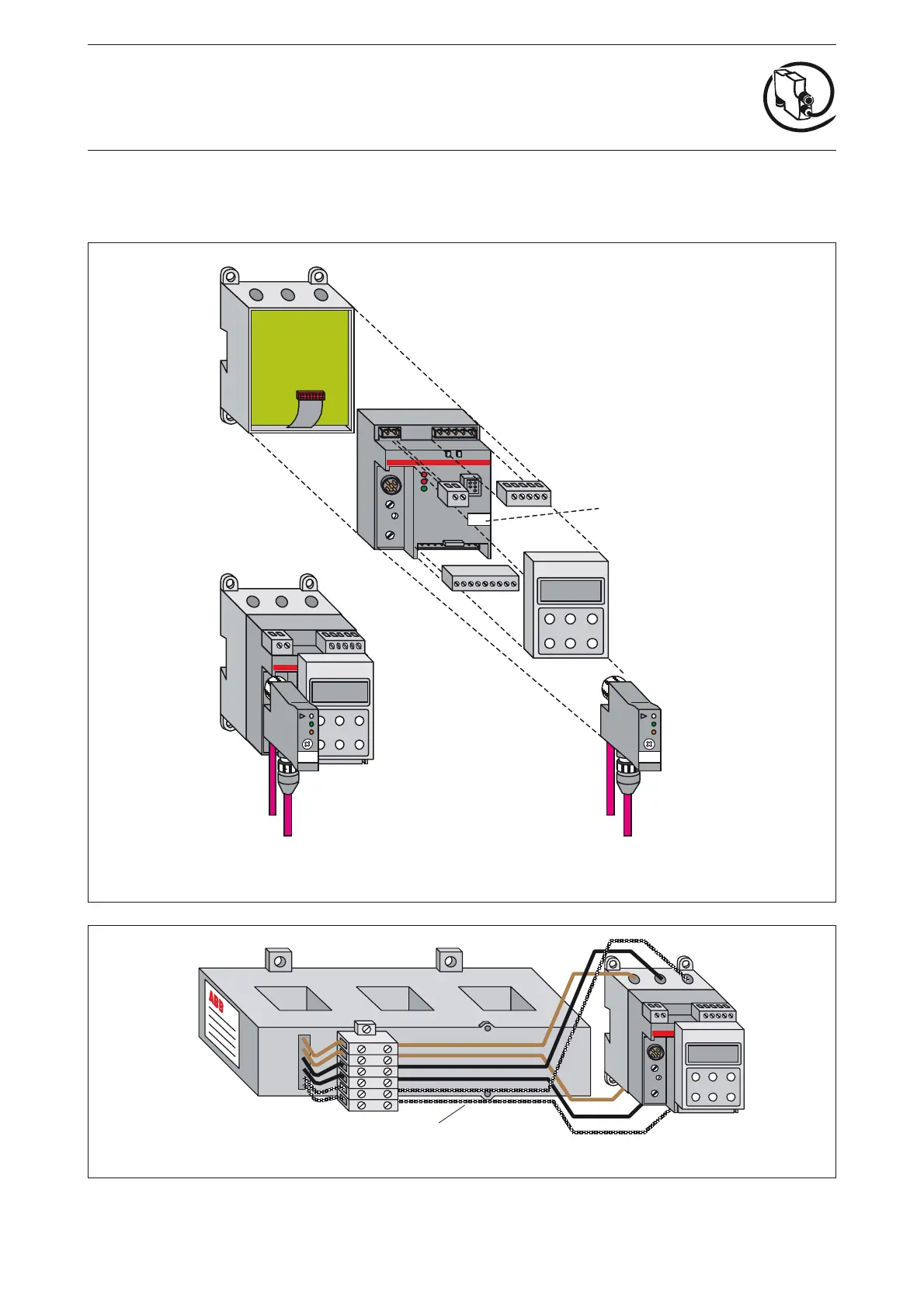

Fig. 2-1: Construction of the UMC22-FBP
Fig. 2-2: UMC22-FBP with external current transformer for higher currents
Chapter 2.1~1
4
UMC22-FBP:
current transformer unit
UMC22-FBP:
controller unit
Label
ACS100-PAN:
Control Panel
(optional)
FieldBusPlug
(optional)
Complete device
with mounted accessories
2CDC 342 034 F0206
2CDC 342 035 F0206
max. lenght 2 m each, wire size 2,5 mm
2

ABB UMC22-FBP Specifications

General

ABB Type Designation	UMC22-FBP
Rated Control Supply Voltage (Us)	24 V DC
Protection class	IP20
Input Current	0.5 A
Output Current	0.5 A
Communication	Modbus RTU
Display	No
Operating temperature range	-25 °C to +55 °C
Storage temperature range	-40 °C to +70 °C
Relative humidity	5 ... 95 %
Communication interface	PROFIBUS DP, DeviceNet, CANopen, Modbus RTU, Ethernet/IP, PROFINET
Protocol	PROFIBUS DP, DeviceNet, CANopen, Modbus RTU, Ethernet/IP, PROFINET
