8.8 Dismantling insulation, gas inlet casing and nozzle
ring (A175-L and smaller)
Dismantling the insulation
The dry cleaning does not have to be removed to dismantle the insulation.

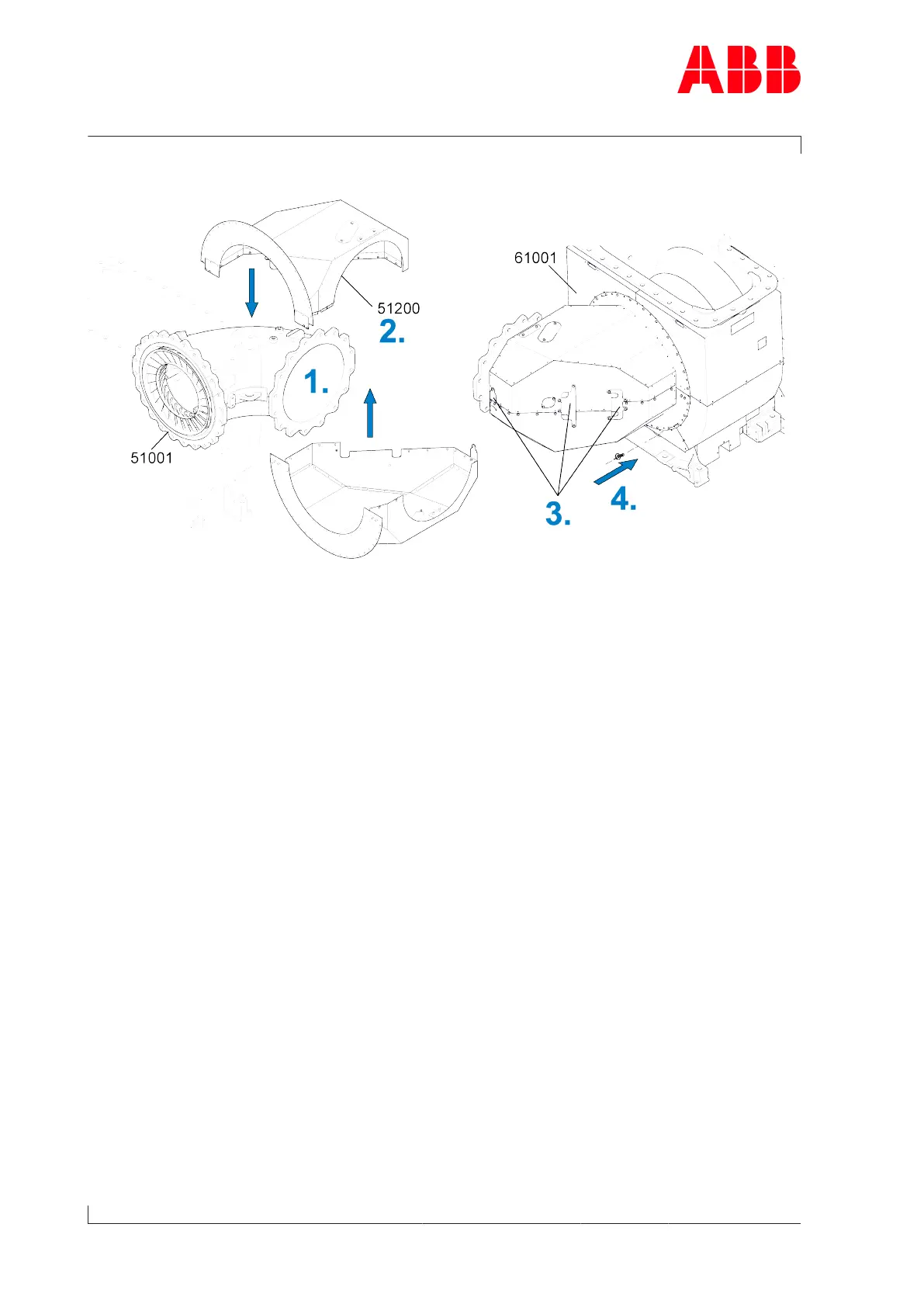

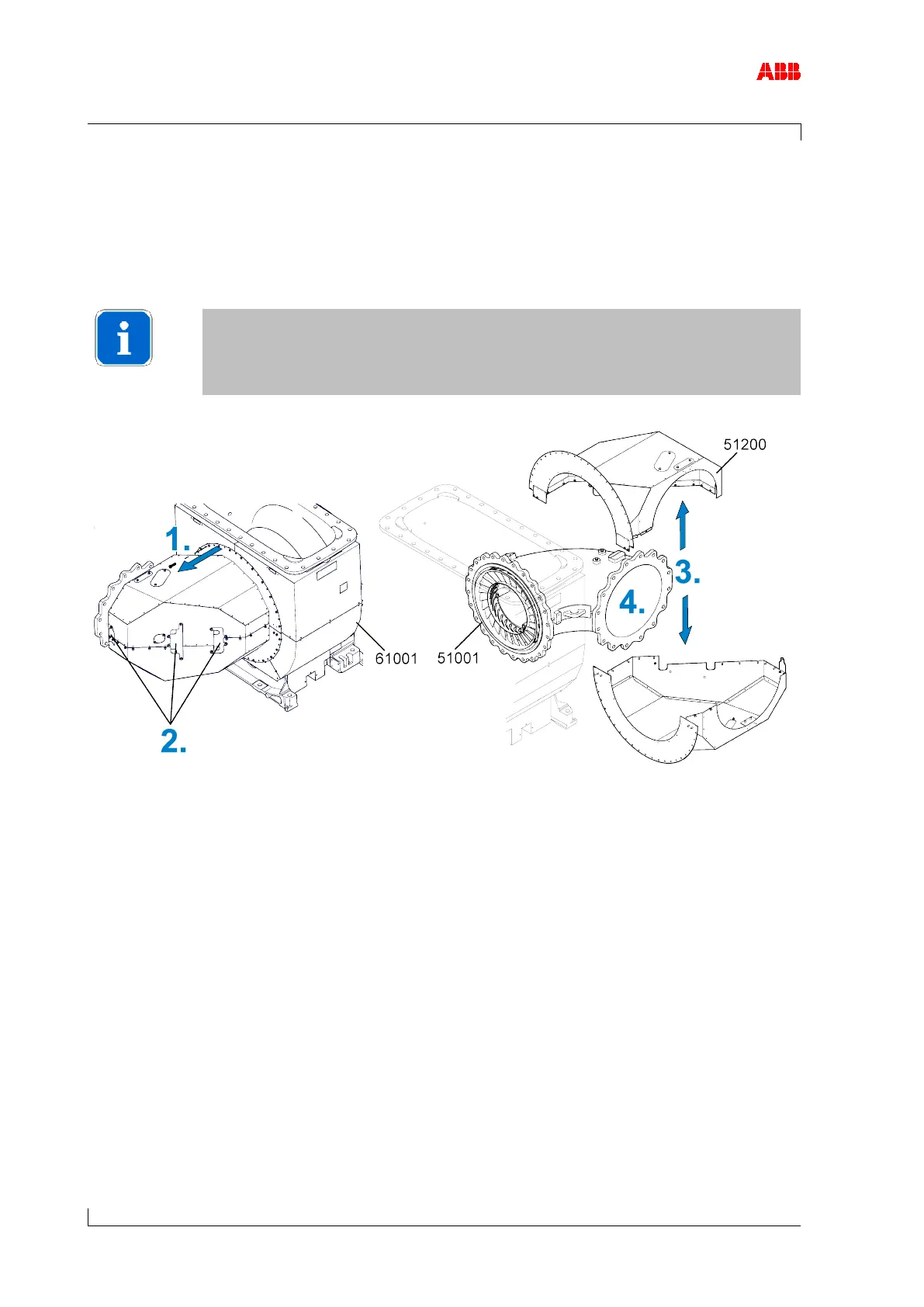

Figure 37: Removing the insulation (A175-L and smaller).
1. Loosen and remove screws of insulation jackets (51200) from gas outlet casing (61001).
2. Loosen and remove all connecting plates of insulation jackets.
3. Remove insulation jackets.
4. Detach flange connection between gas inlet casing (51001) and bellows.
