Operation Manual / 4 Product description / A100-L
Page 13 /
© Copyright 2016 ABB. All rights reserved.
2.3 Installing the turbocharger
2.3.1 Placing the turbocharger on the bracket

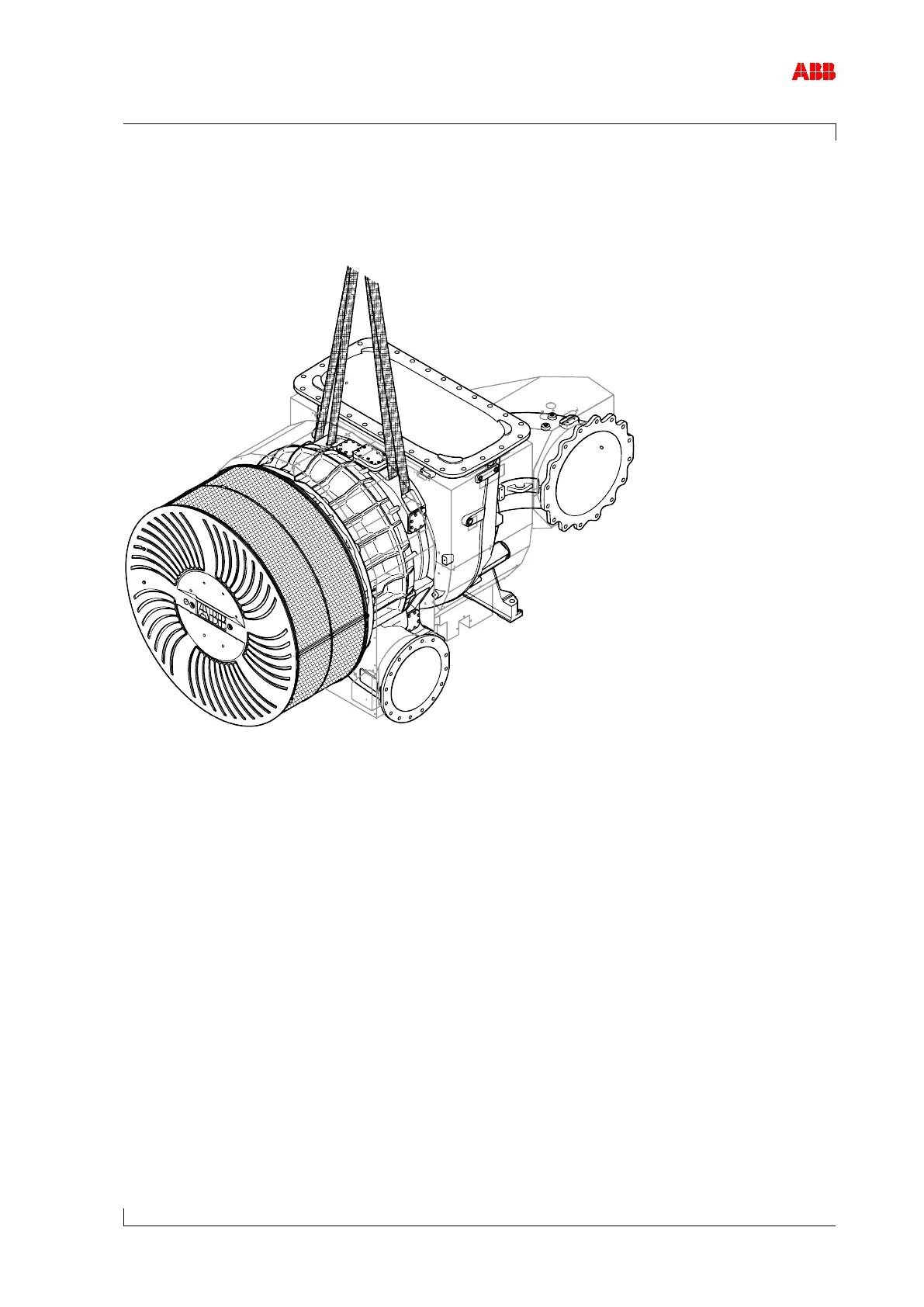

Figure 5: Placing the turbocharger on the bracket
Remove covers from the oil connections.
Align turbocharger and place on engine bracket.
Tighten fixing screws (Steps for fastening the turbocharger [➙ 14]); while doing this, only
slightly loosen the lifting gear.
Remove lifting gear from suspension eyes of the bearing casing.
Connect cable to speed sensor.
Connect all gas, air and oil pipes.
