8.14 Fitting the filter silencer
If the turbocharger is also fitted with a noise package, observe chapter Fitting the filter silencer
with noise package [➙ 88].

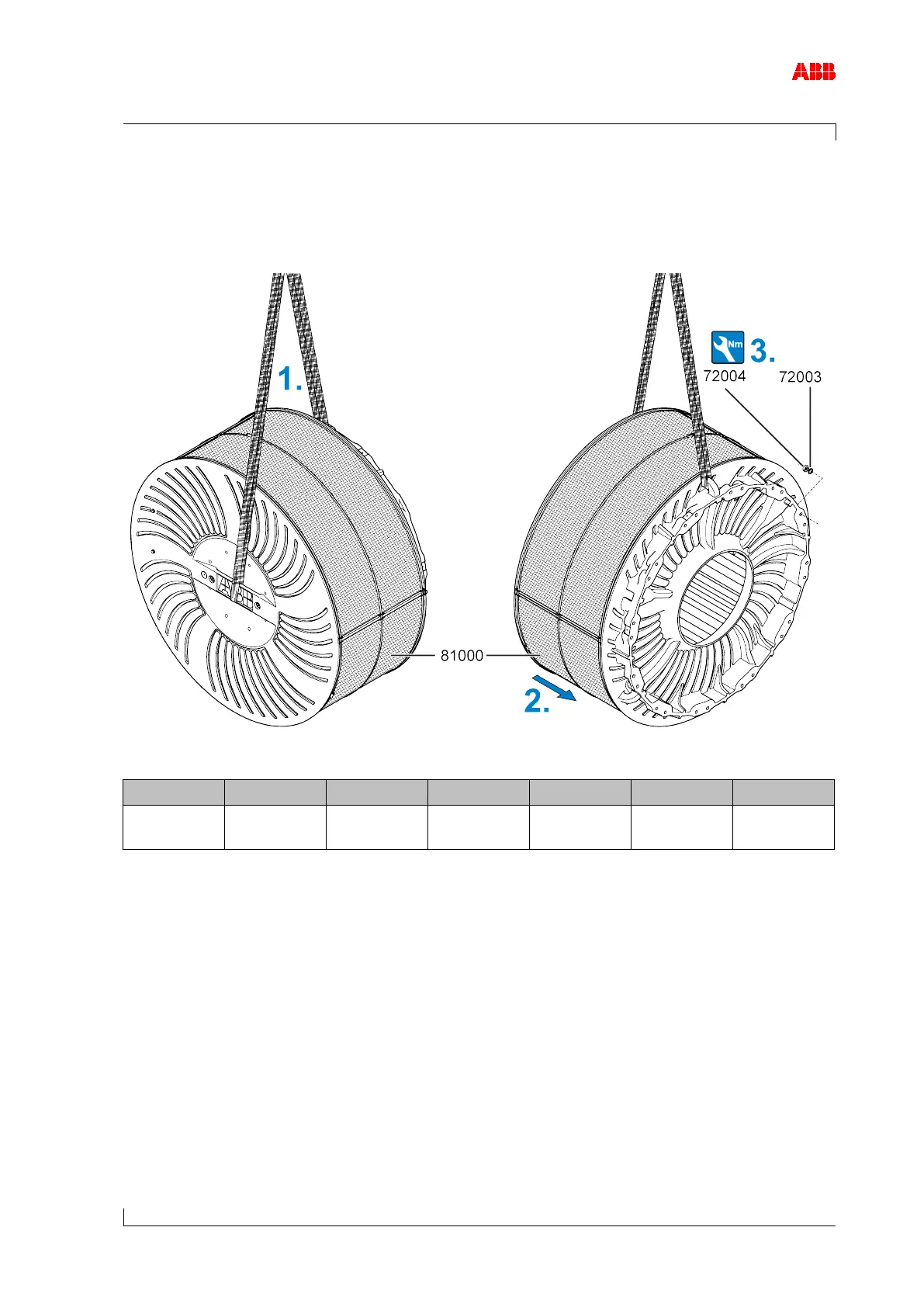

Figure 54: Fitting the filter silencer
130 Nm
200 Nm
300 Nm
420 Nm
570 Nm
710 Nm
Table 38: Tightening torque (72004)
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Position filter silencer on compressor casing.
3. Fit nuts (72004) with washers (72003) and tighten.
Fit insulation as far as necessary.
