Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.3 Disassembly and assembly of the
filter silencer casing
© Copyright 2017 ABB. All rights reserved. HZTL4034_EN Revision K June 2017

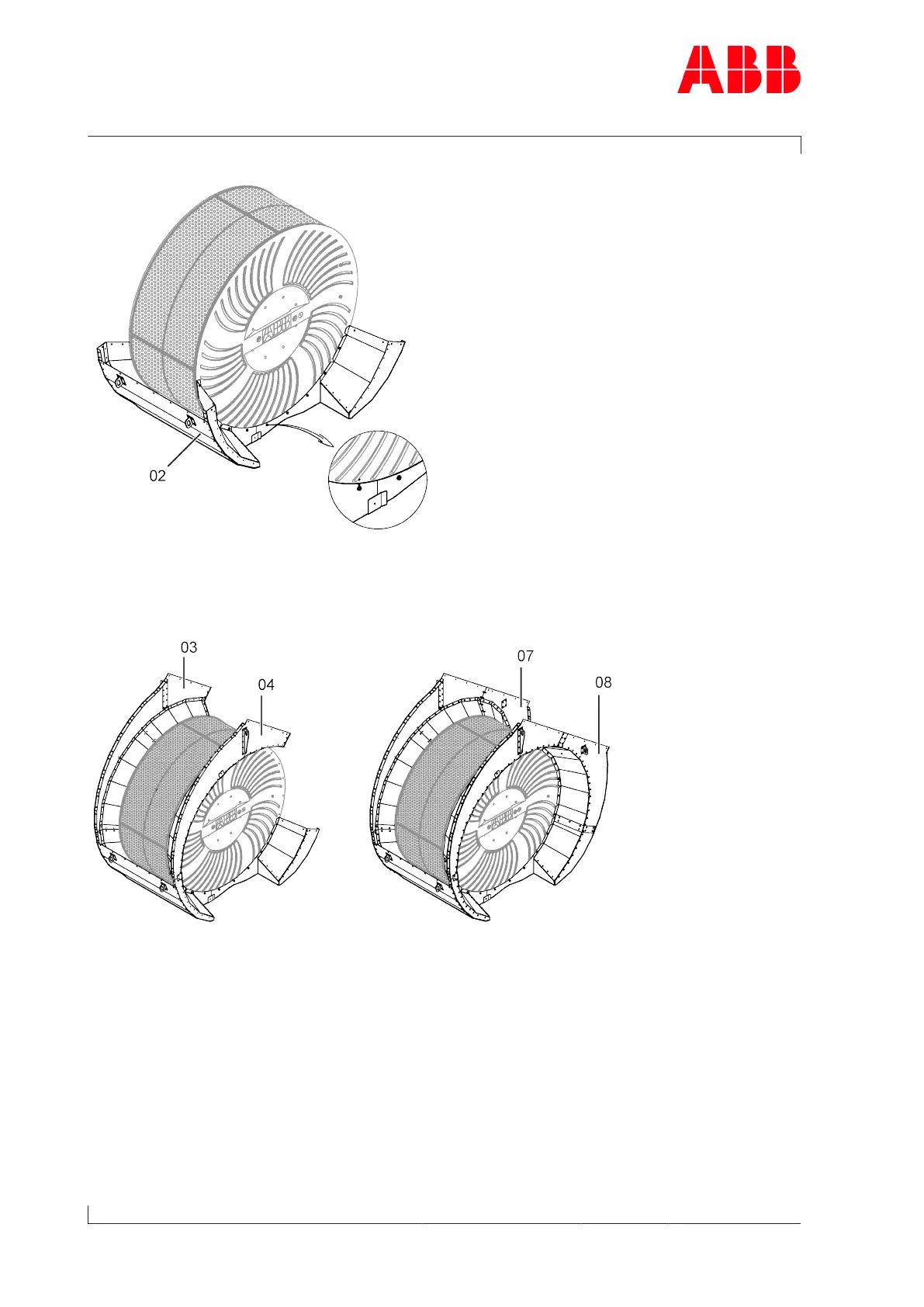

Fig.24: Fitting filter silencer casing 2
u Fit the bottom part(02) with the screws on the filter silencer.
Fig.25: Fitting filter silencer casing 3
u Fit the side parts(03) and (04) with the screws on the filter silencer and on the bottom
part.
u Fit the side parts(07) and (08) with the screws on the filter silencer, on the bottom part,
and on the side parts(03, 04).
Page 56 / 106
