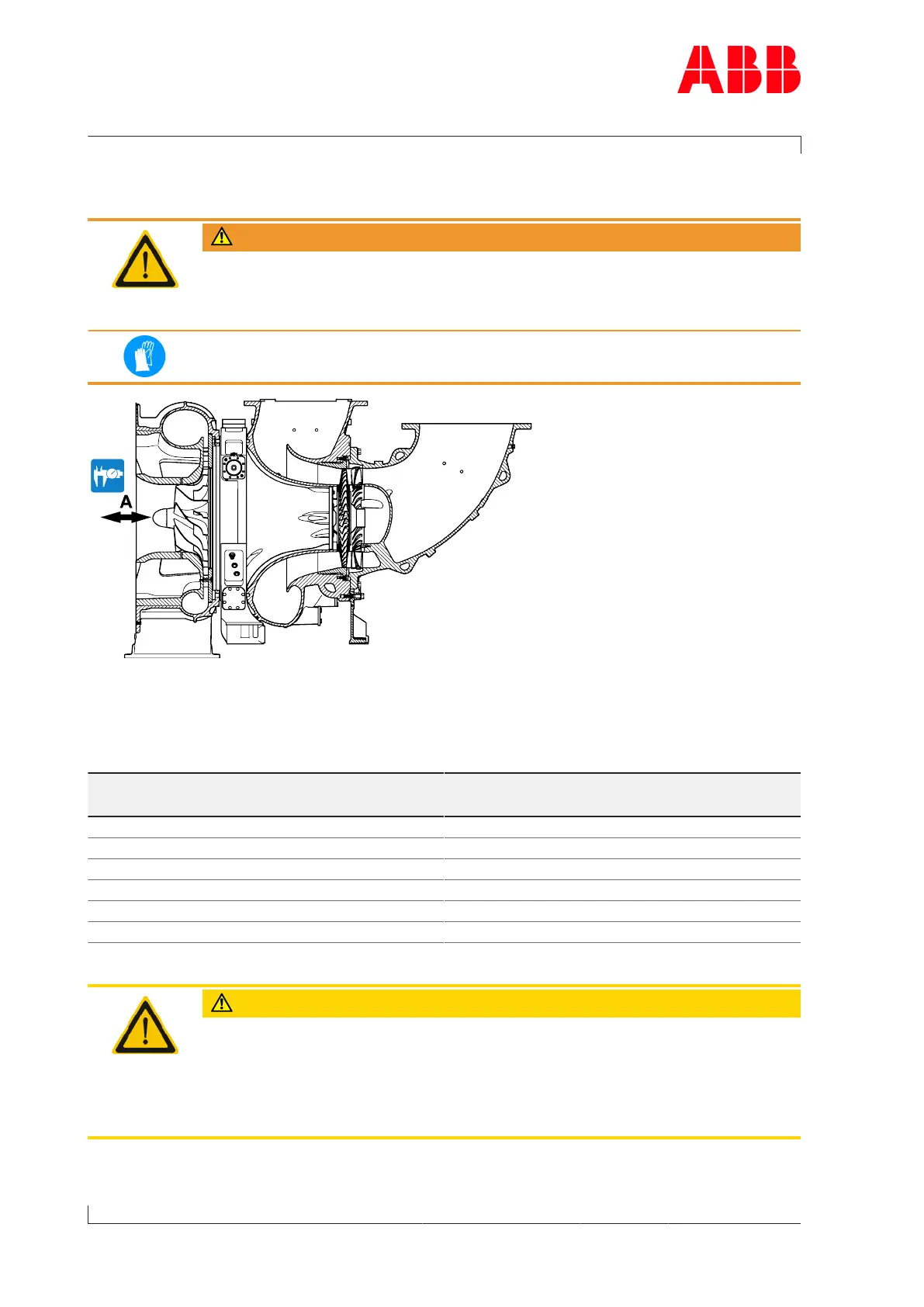

Figure 42: Dismantling the nozzle ring (A180-L and larger)
1. Loop around the nozzle ring holder (90477) with the lifting gear and secure it to the crane.
2. Loosen screws (56014) and remove with washers (56011).
3. Pull the nozzle ring (56001) towards the front onto the nozzle ring holder.
4. Screw the screws (B
2
) into the nozzle ring holder.
5. Remove screws (B
1
).
Figure 43: Putting down the nozzle ring (A180-L and larger)
Use the crane to remove and put down the nozzle ring (56001).
