If the cleaning is still unsuccessful after three processes, it is recommended to have the turbo-
charger checked and cleaned by an ABB Turbocharging Service Station if the engine values
are unsatisfactory.
Volume of water per cleaning process
A165-L 2.0
A170-L 2.0
A175-L 3.0
A180-L 3.0
A185-L 3.0
A190-L 3.0
Table 12: Volume of water per cleaning process
The filling time is 4 ... 15 seconds.

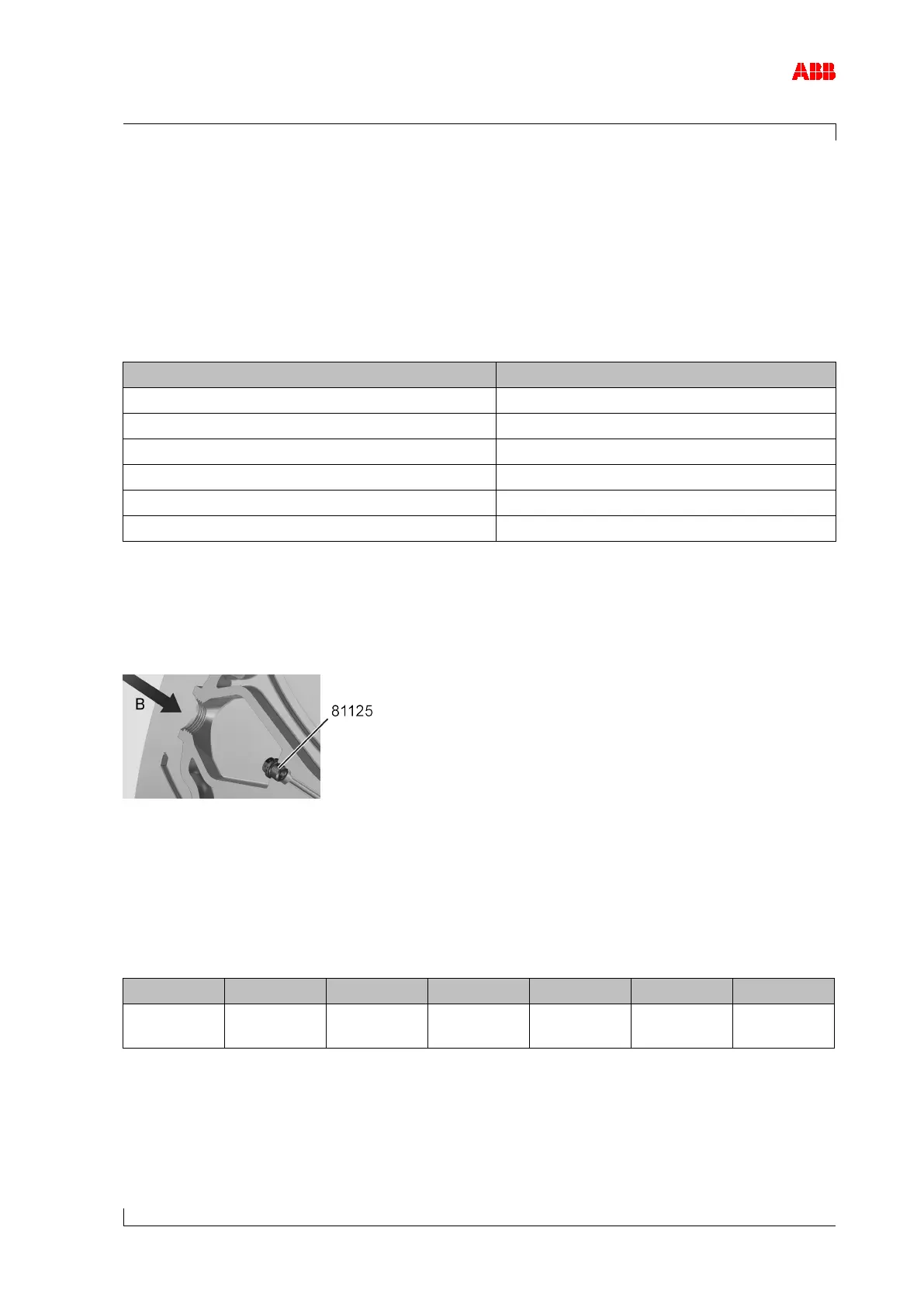

Figure 18: Filter plug view
Disassembly and checking of the filter plug (81125) is required if, 20 seconds after the clean-
ing process, water is still visible in filler opening B.
Loosen and remove the filter plug (81125) with box spanner
Clean the drill holes of the plug
Fit filter plug (81125).
81125 G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45 Nm
Table 13: Tightening torques (81125)
