4.2 Turbocharger speed
4.2.1 Introduction
The speed of the turbocharger must be permanently monitored.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be pulled
out.
u Do not tension the speed measurement cables.
4.2.2 Layout and overview

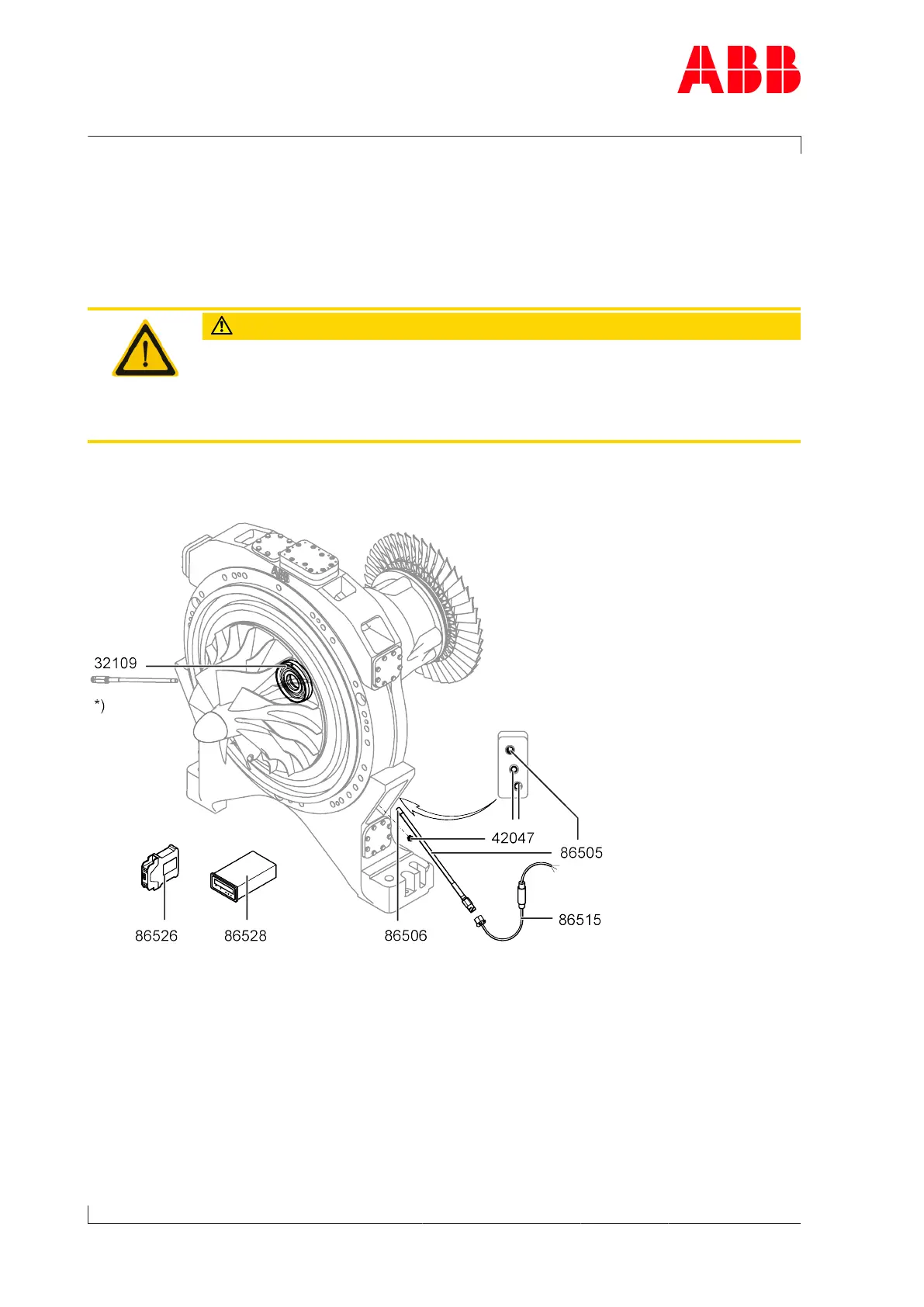

Fig.8: Layout and overview of the speed measurement system
86505 Speed sensor 86528 Tachometer
86506 O-ring 42047 Screw plug
86515 Cable connector 32109 Sealing disc with cams
86526 F/I converter *) Alternative mounting position for speed
sensor
or for the second speed sensor
