Operation Manual / 4 Product description / A100-L
4 Monitoring during operation / 4.2 Turbocharger speed
© Copyright 2017 ABB. All rights reserved. HZTL4034_EN Revision K June 2017
4.2.4 Replacing the speed sensor
WARNING
Hot cable connector and hot speed sensor
Danger of burns. The cable connector and speed sensor can reach temperat-
ures in excess of 100°C during operation.
u When disassembling the cable connector and speed sensor, wear safety
gloves.
Wear safety gloves to protect against thermal hazards.
u The speed sensor is designed with a sealing lip and does not require a sealing disc for as-
sembly.

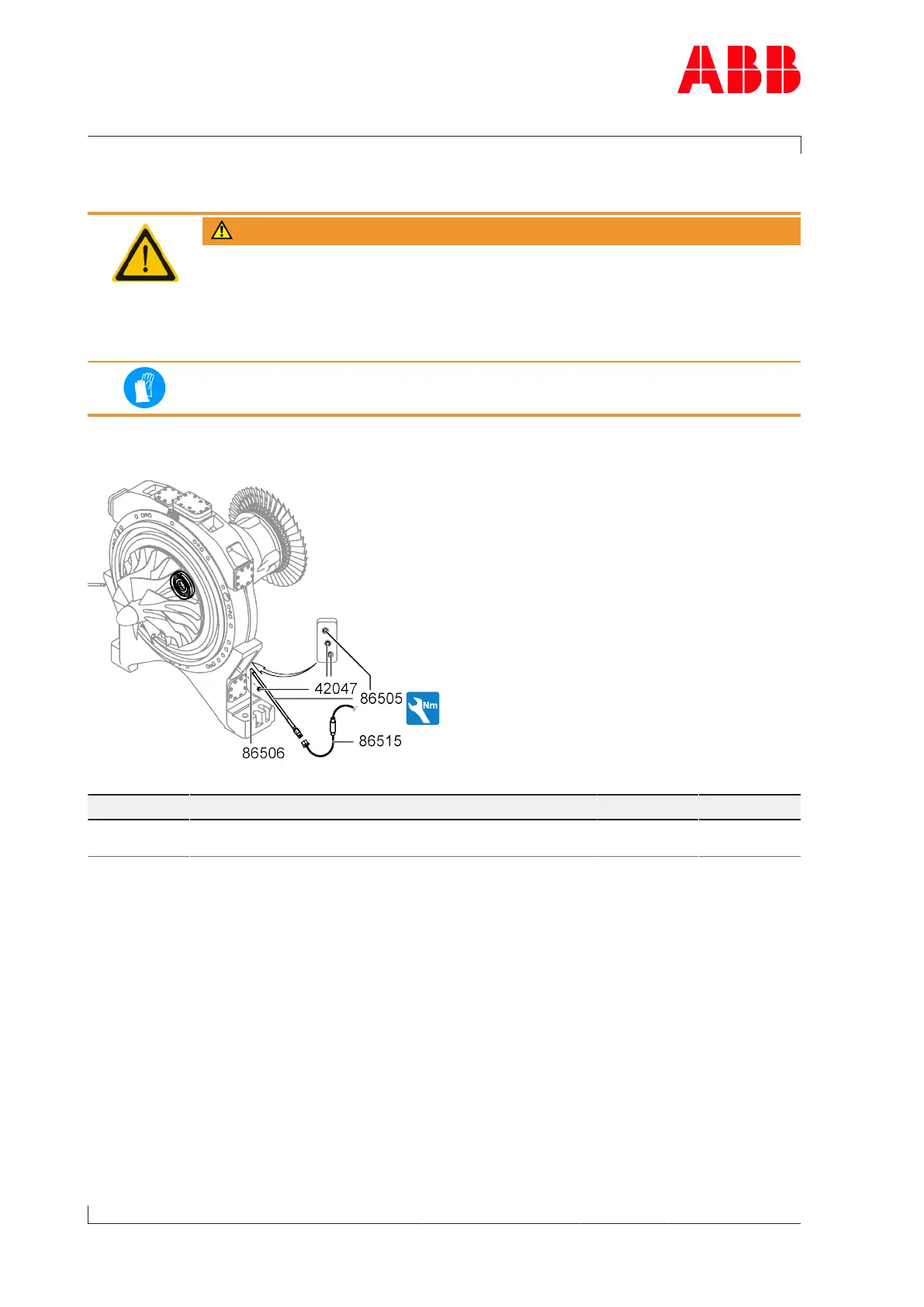

Fig.9: Replacing the speed sensor
Part number A165-L A170-L A175-L A180-L A185-L A190-L
86505 M18x1.5
150Nm
M18x1.5
150Nm
M18x1.5
150Nm
M27x2
320Nm
M27x2
320Nm
M27x2
320Nm
Table9: Tightening torques (86505)
u Reduce the engine performance to idling and then stop the engine. Pay attention to post-
lubrication (Stopping the engine →30).
u Switch off the lubricating oil supply to the turbocharger.
u Disconnect the cable connector from the speed sensor.
u Unscrew the defective speed sensor.
u Screw in new speed sensor to the stop.
u Connect cable connector (86515) with the speed sensor (86505)
u Switch on lubricating oil supply to the turbocharger.
Page 20 / 106
