8.13 Fitting diffuser, wall insert
Fitting the diffuser
Fig.52: Fitting the diffuser
Part number A165-L A170-L A175-L A180-L A185-L A190-L
77015 M5
6Nm
M6
10Nm
M8
25Nm
M8
25Nm
M10
45Nm
M10
45Nm
Table36: Tightening torque (77015)

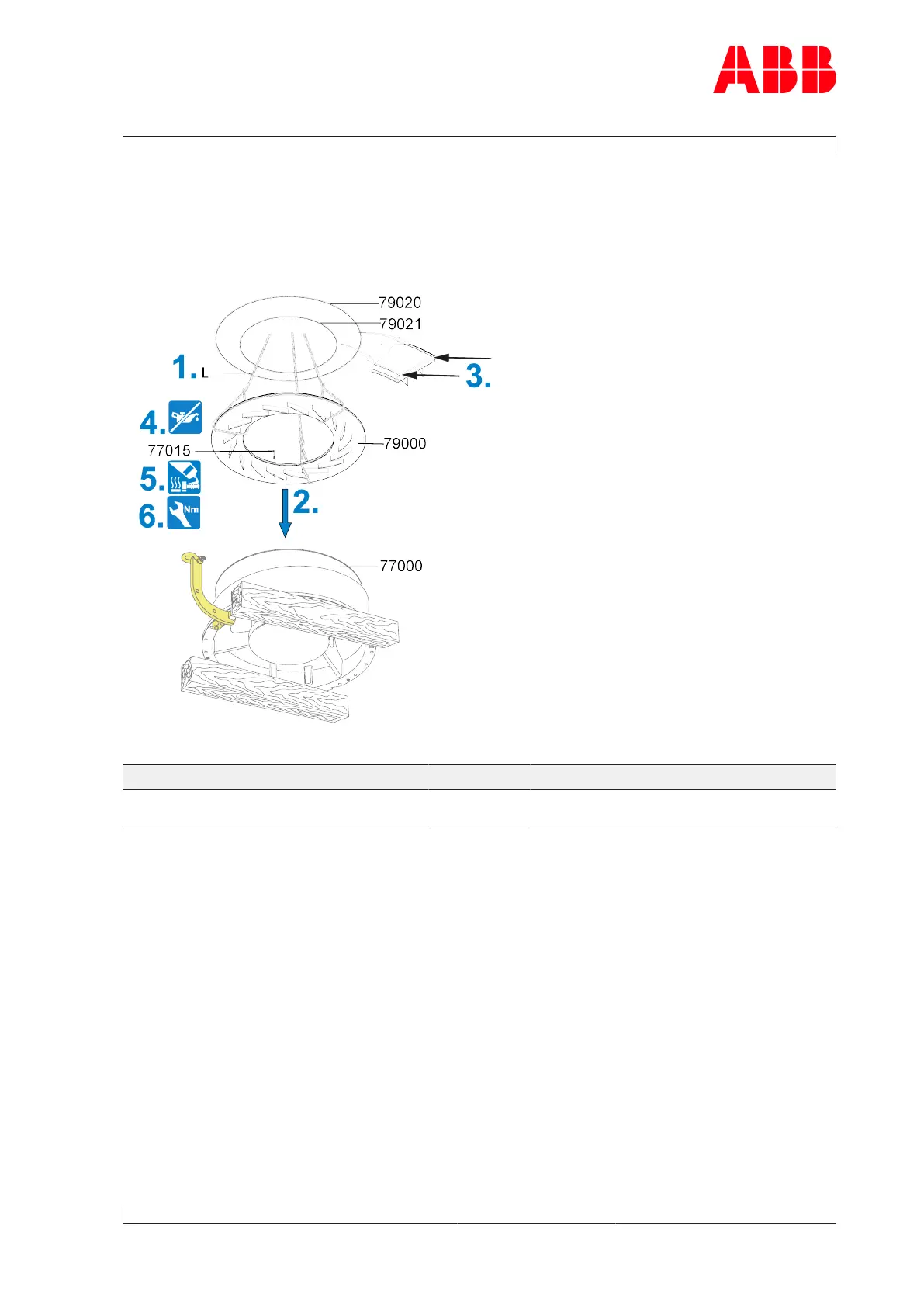

1. Attach lifting gear (L) to the diffuser(79000).
2. Carefully place the diffuser on the wall insert(77000), then remove lifting gear.
3. Fit new O-rings(79020, 79021) on the diffuser.
4. Degrease screws(77015) and threaded holes in wall insert.
5. Coat threads of the screws with Loctite® 542.
6. Fit screws.
