8.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

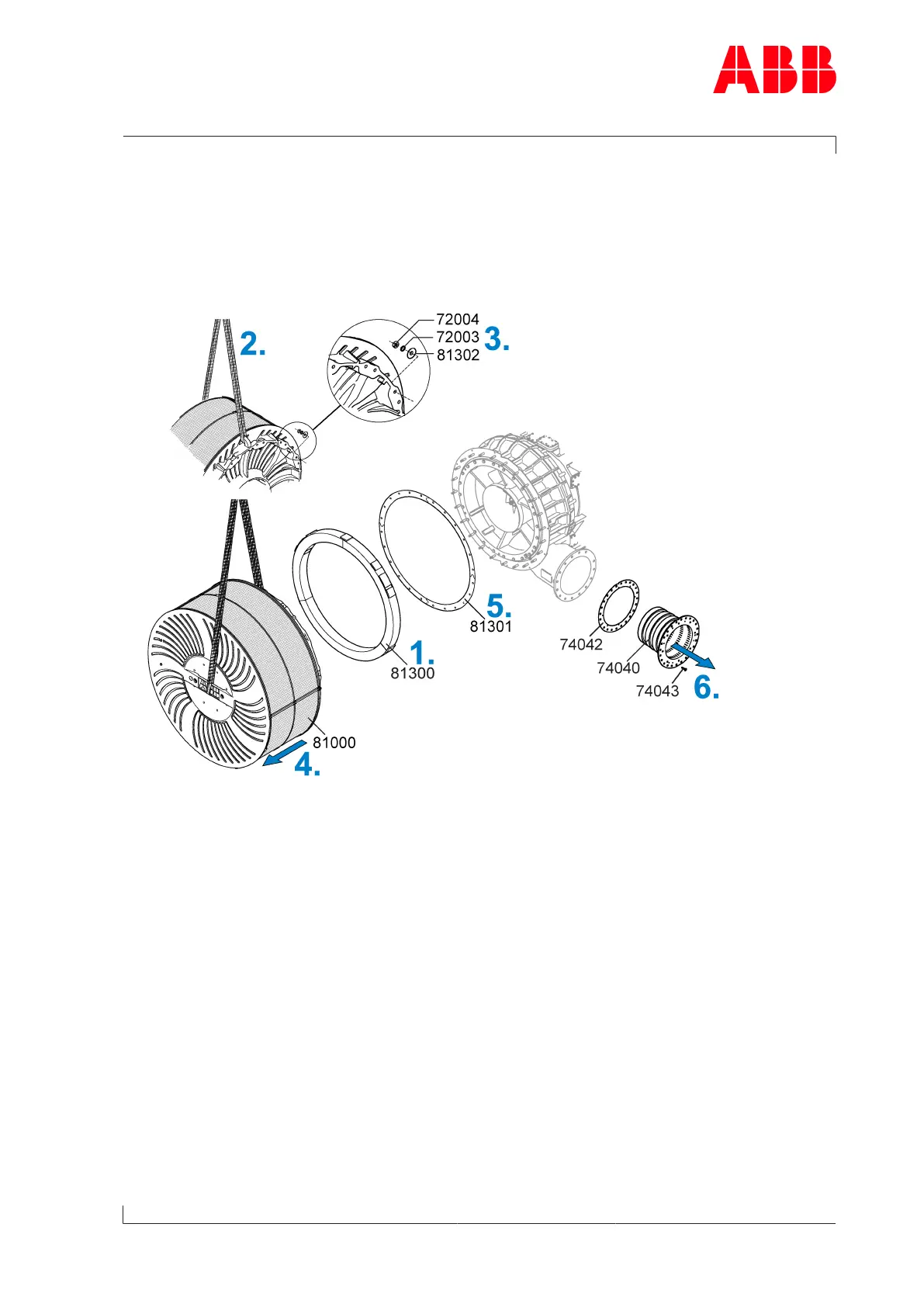

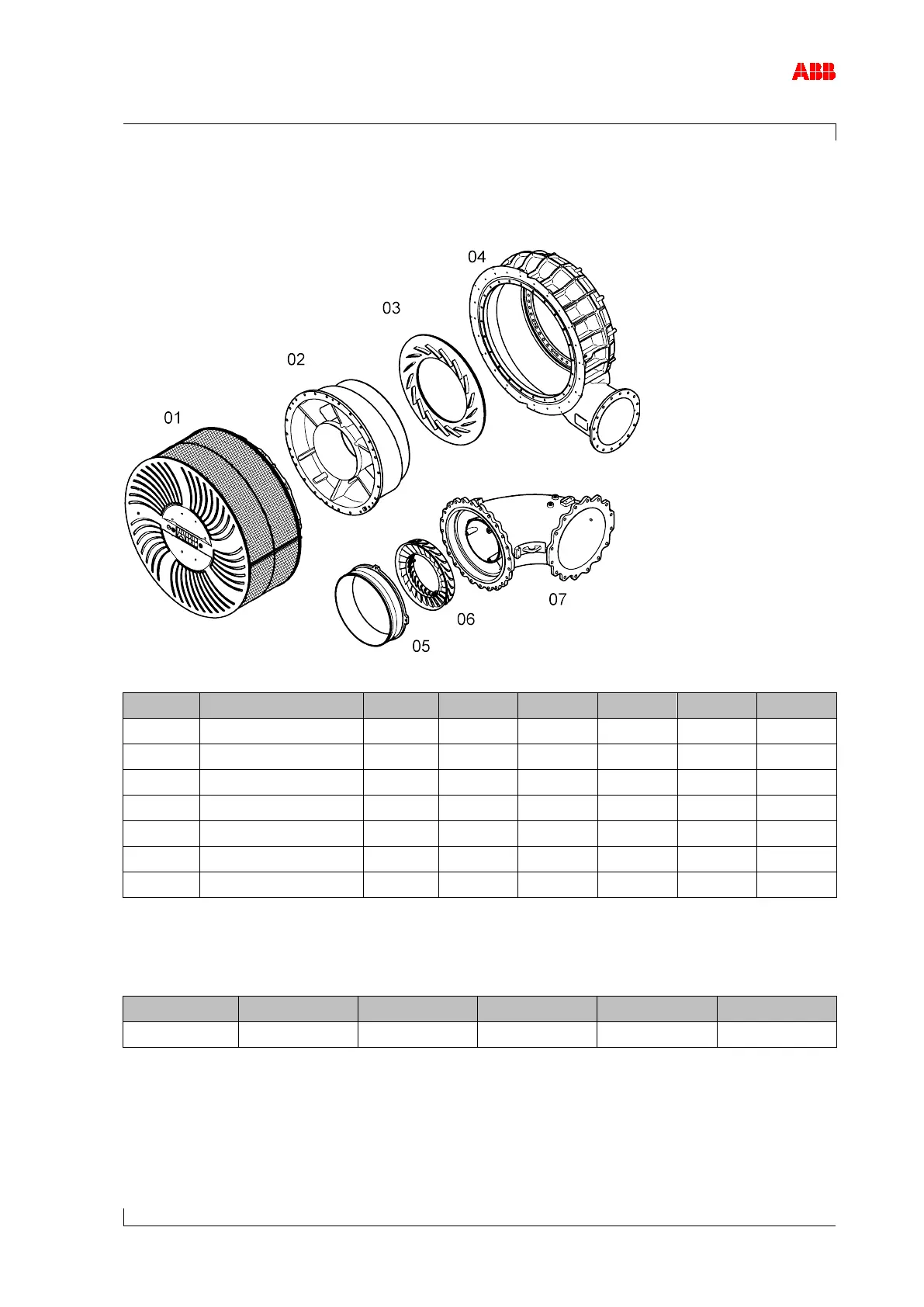

Figure 21: Overview of assembly weights
Position
Assembly
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
01
Filter silencer
220
280
480
620
850
1050
02 Wall insert 240 340 560 820 1090 1500
03
Diffuser
40
60
100
140
200
270
04 Compressor casing 320 450 740 960 1360 1800
05
Cover ring
30
50
75
90
110
150
06 Nozzle ring 10 20 25 50 65 85
07
Gas inlet casing
180
240
380
520
700
810
Table 27: Weights of assemblies [kg]
The total weight of the complete wall insert is made up of the wall insert and diffuser assem-
blies.
A165-L
A170-L
A175-L
A180-L
A185-L
A190-L
280 400 660 960 1290 1770
Table 28: Weight of wall insert [kg]
