Operation Manual / 4 Product description / A100-L
2 Removal and installation / 2.2 Removing the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4034_EN Revision K June 2017

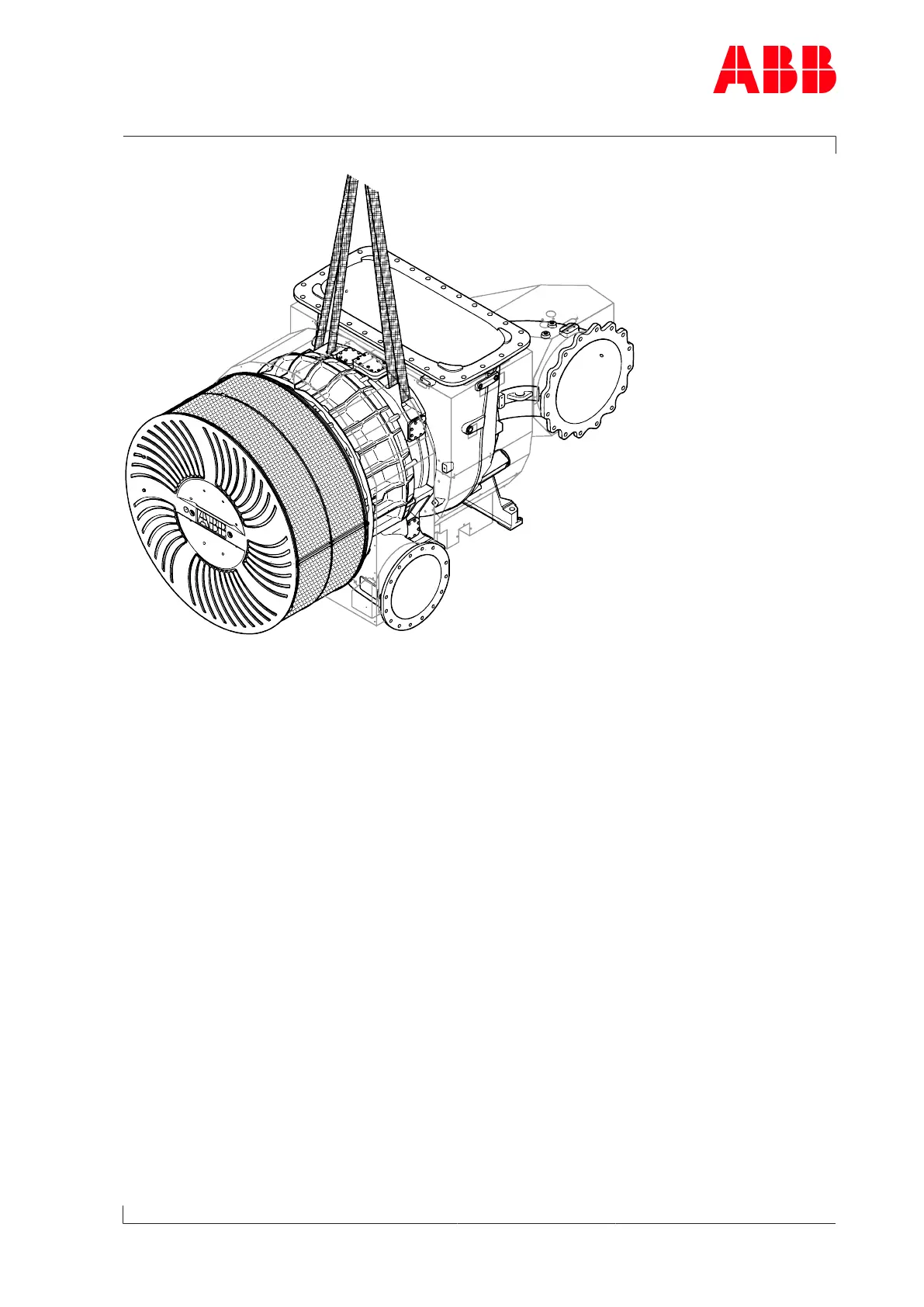

Fig.4: Fitting lifting gear to turbocharger
u Loosen fixing screws on compressor-end and turbine-end foot.
u Lift turbocharger from engine and put down in a suitable location.
u Cover oil connections.
Page 9 / 106
