1.6 Locations of the rating plates

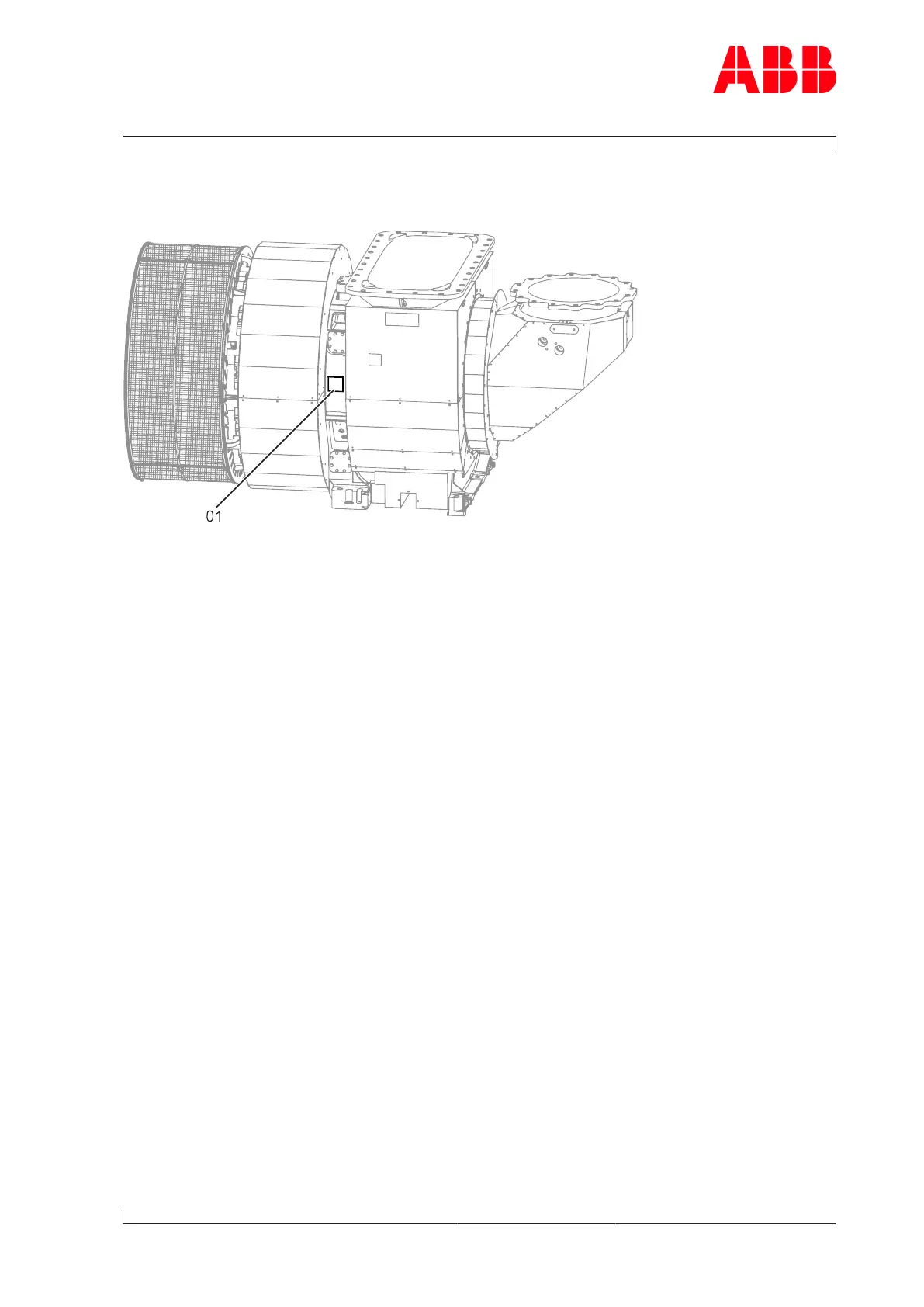

Fig.3: Locations of the rating plates
One rating plate (01) each is attached on the left and the right side of the turbocharger bear-
ing casing.
