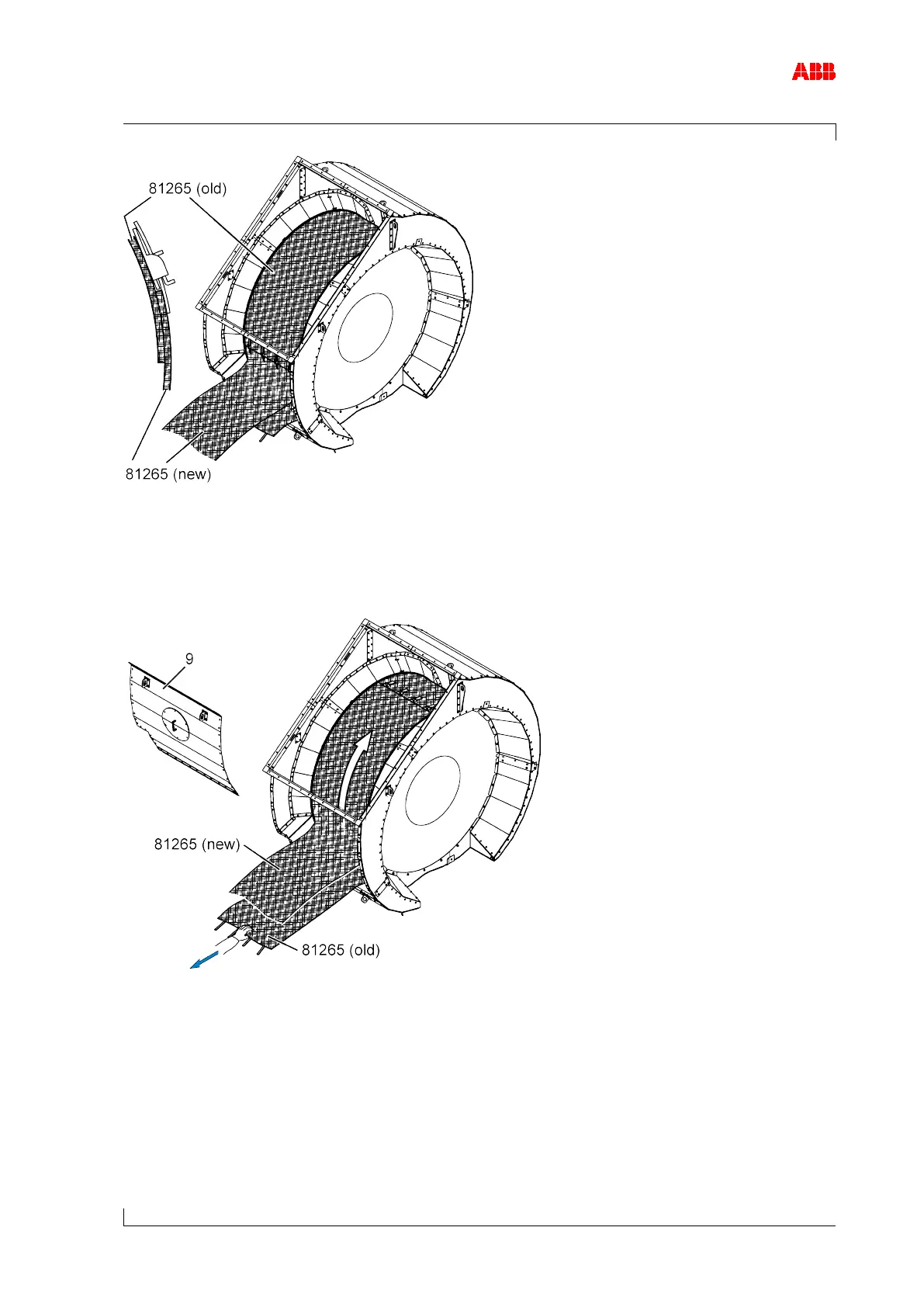

Figure 15: Attaching new filter ring
Attach the new filter ring (81265) on the filter ring to be replaced so they overlap.
Figure 16: Fitting new filter ring
Pull on the old filter ring until the new filter ring is completely wrapped around the filter si-
lencer.
Undo the connection between the new and the old filter ring.
Fasten the newly installed filter ring (81265), then fit circumferential part (9).
