Operation Manual / 4 Product description / A100-L
Page 40 /
© Copyright 2016 ABB. All rights reserved.
6.3 Changing the filter strip on the filter silencer casing
This chapter applies only to turbochargers with filter silencer casing. The filter ring (81265) is
replaced with the filter silencer installed.

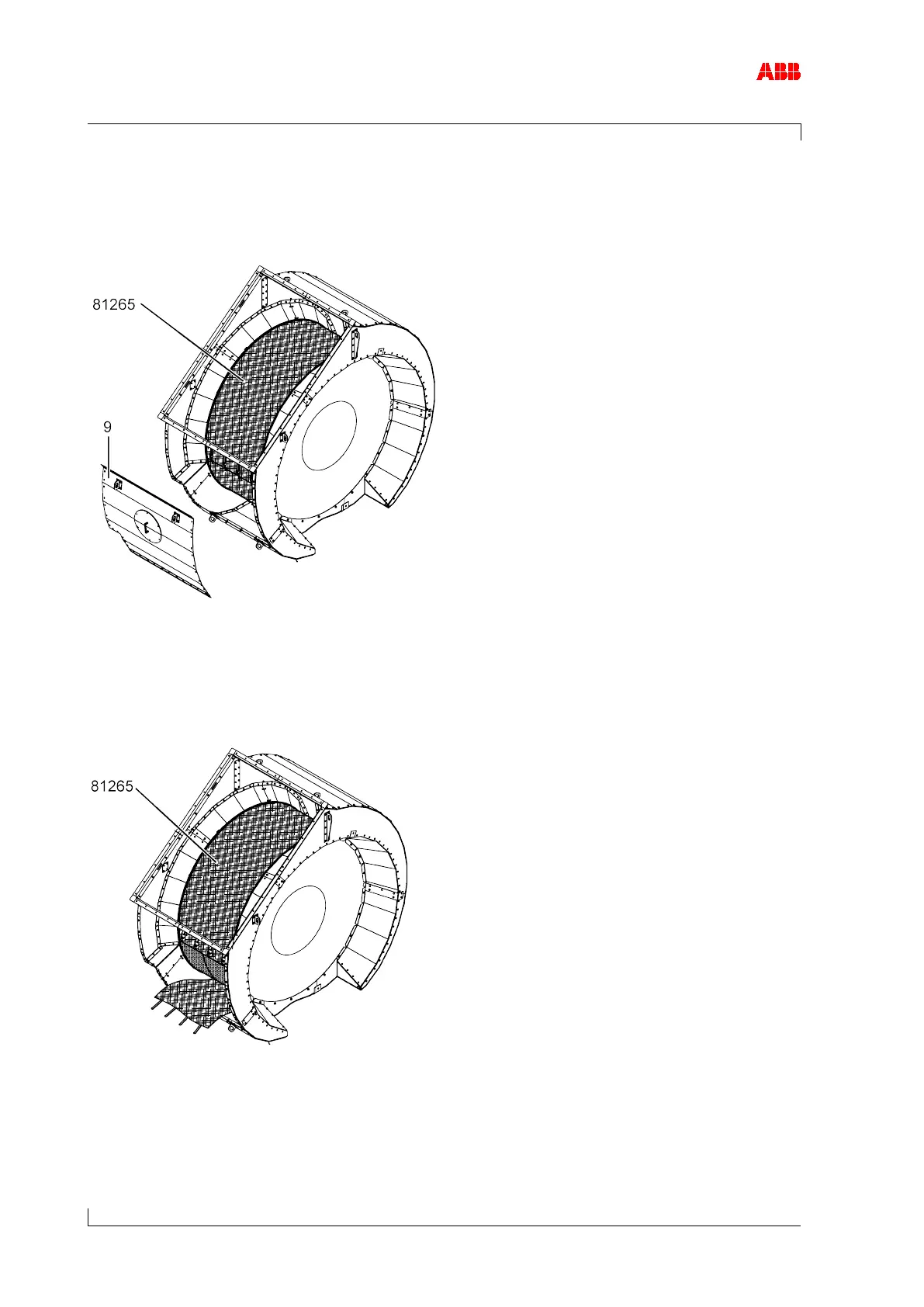

Figure 13: Dismantling filter ring circumferential part
Dismantle circumferential part (9).
Figure 14: Opening filter ring lock
Open the lock of the filter ring (81265).
