TCS-Compact 5 Functional description
EN - 9
5 Functional description
For cleaning, the torch is clamped with the cylindrical part of the gas nozzle in the clamping device. The
milling cutter which is configured to the gas nozzle and torch geometry moves into the gas nozzle interior
by means of a stroke movement and removes adhered welding spatter. At the same time, the gas nozzle
interior is blasted with compressed air through the cable assembly (optional). Hereby, the cleaning process
is optimized in connection with an optional anti-spatter application.
1 Motor cover
2 Compressed air-motor with integrated stroke
3 Device cover
4 Injection unit
5 Collecting device
6 Anti-spatter bottles with mounted bottle
holder
7 Compressed air connection DN 10
8 Electrical device connection
9 Wire cutting device
10 Clamping device of the welding torch with
clamping prism

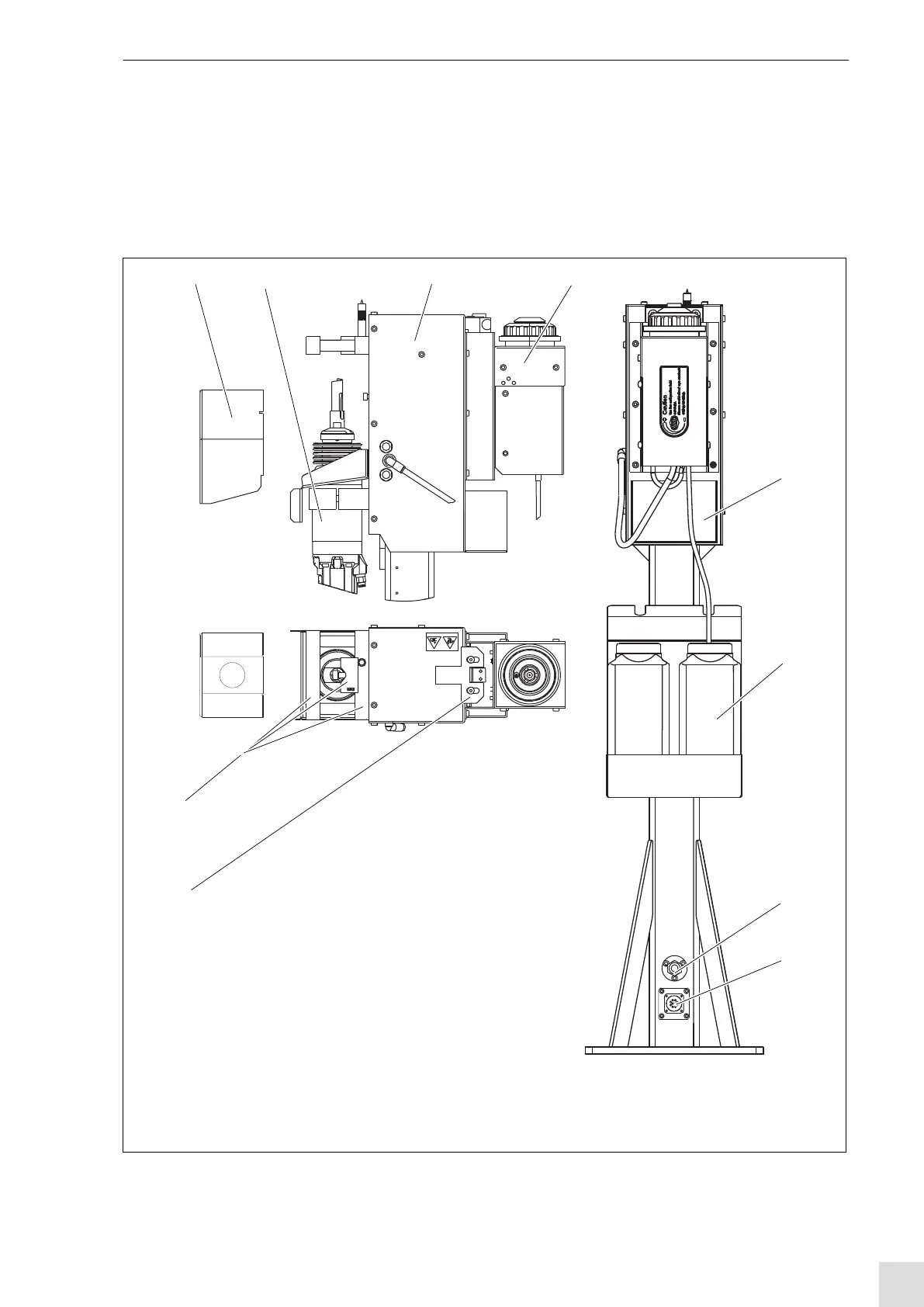

Fig. 4 Cleaning station sub-assembly
12 3 4
5
6
8
9
10
7
