Abicor Binzel TCS-Compact - Mounting the Milling Cutter

EN - 20
6 Putting into operation TCS-Compact
6.2.4 Mounting the milling cutter
1 Mount the motor protection cap (6).
2 Mount the milling cutter (1) onto the compressed air-motor (4).
3 Tighten the milling cutter (1) by means of the wrench SW17 (2) (minimum tightening torque 20Nm) and
hold with a wrench SW21 (3).
1 Milling cutter
2 Wrench SW17
3 Wrench SW21
4 Compressed-air motor
5 Bellows
6 Motor protection cap
7 Motor output shaft

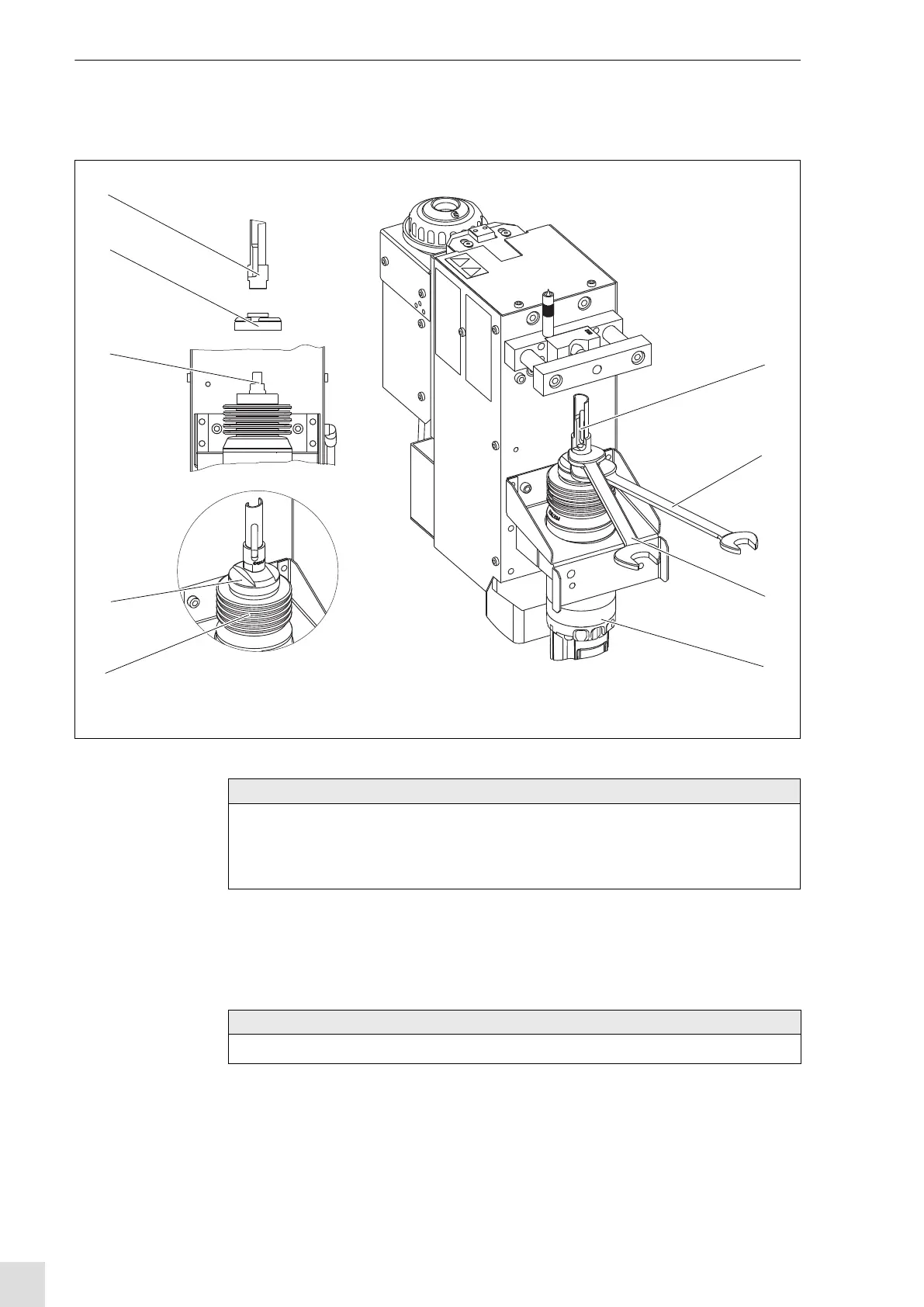

Fig. 15 Mounting the milling cutter
1
2
3
4
5
6
2
6
7
NOTE
• Only use tools with a suitable width across flats when changing the milling cutter. Motor protection
cap (6) SW 21, milling cutter SW 17.
• Ensure that the bellows (5) is in the right position.
 see Fig. 16 Position bellows on page EN-21
NOTE
• For a better mounting, the compressed air-motor should be in the lower clamping and stroke position.
