TCS-Compact 6 Putting into operation
EN - 23
6.3.1 Height adjustment
 see Fig. 18 Setting up the compressed air-motor on page EN-22
1 Loosen the clamping screws M8x45 (6) using an Allen key
(8) . Meanwhile, hold the
compressed air- motor (8).
2 Move the compressed air- motor (8) to the upper stroke position (Fig. A) (the compressed-air motor can
be moved into the upper stroke position manually).
3 Move the compressed air- motor (8) upwards in the fastener (9) until the front side of the
milling cutter (5) hits the front side of the gas nozzle (4). (Fig. B)
4 Fasten the clamping screws M8x45 (6) on the motor fastener (9) (minimum tightening torque 20 Nm).
4 Gas nozzle
5 Milling cutter
6 Clamping screws M8x45
8 Compressed-air motor
9 Motor fastener

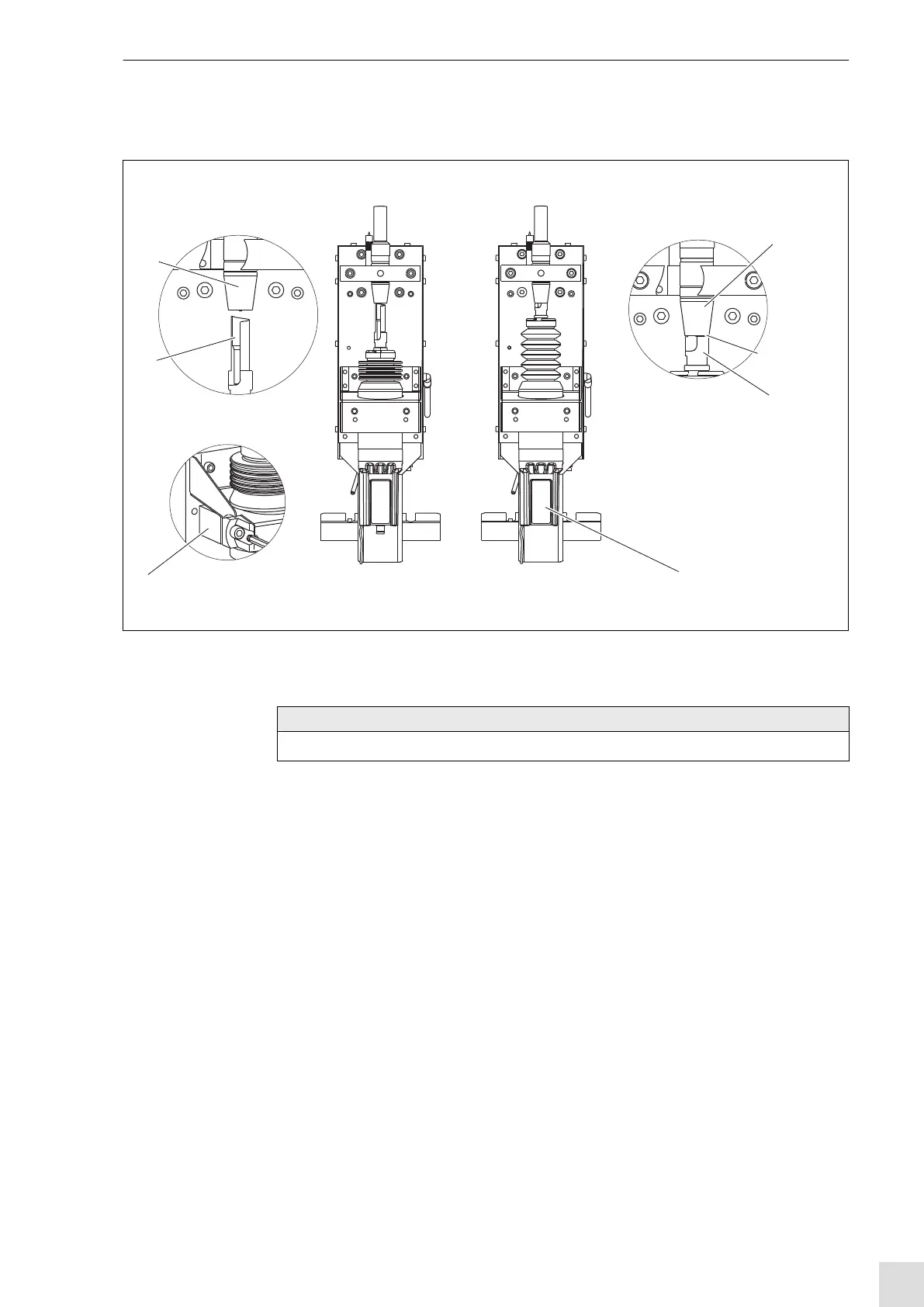

Fig. 19 Height adjustment
lower stroke position upper stroke position
4
5
4
5
Stop
Milling cutter
AB
9
8
NOTE
• The device has to be depressurized during set-up.
