6.2.3 Fastening the cutting prism
1 Mount the clamping prism (1) into the clamping device (5) from above.
2 Fasten the clamping prism with the cylinder screw (3) (tightening torque 20Nm).
NOTE
• If the cutting plates reach their wear limit (the following are possible, poor cutting quality, jamming of
device, incomplete cut etc.), the cutting plates do not need to be exchanged at once.
• Program a new cutting position in a new place in the area of the cutting plates.
1 Clamping prism
2 Mark for gas nozzle ø
3 Cylinder screw M8x20
4 Allen key, SW 6
5 Clamping device gas nozzle

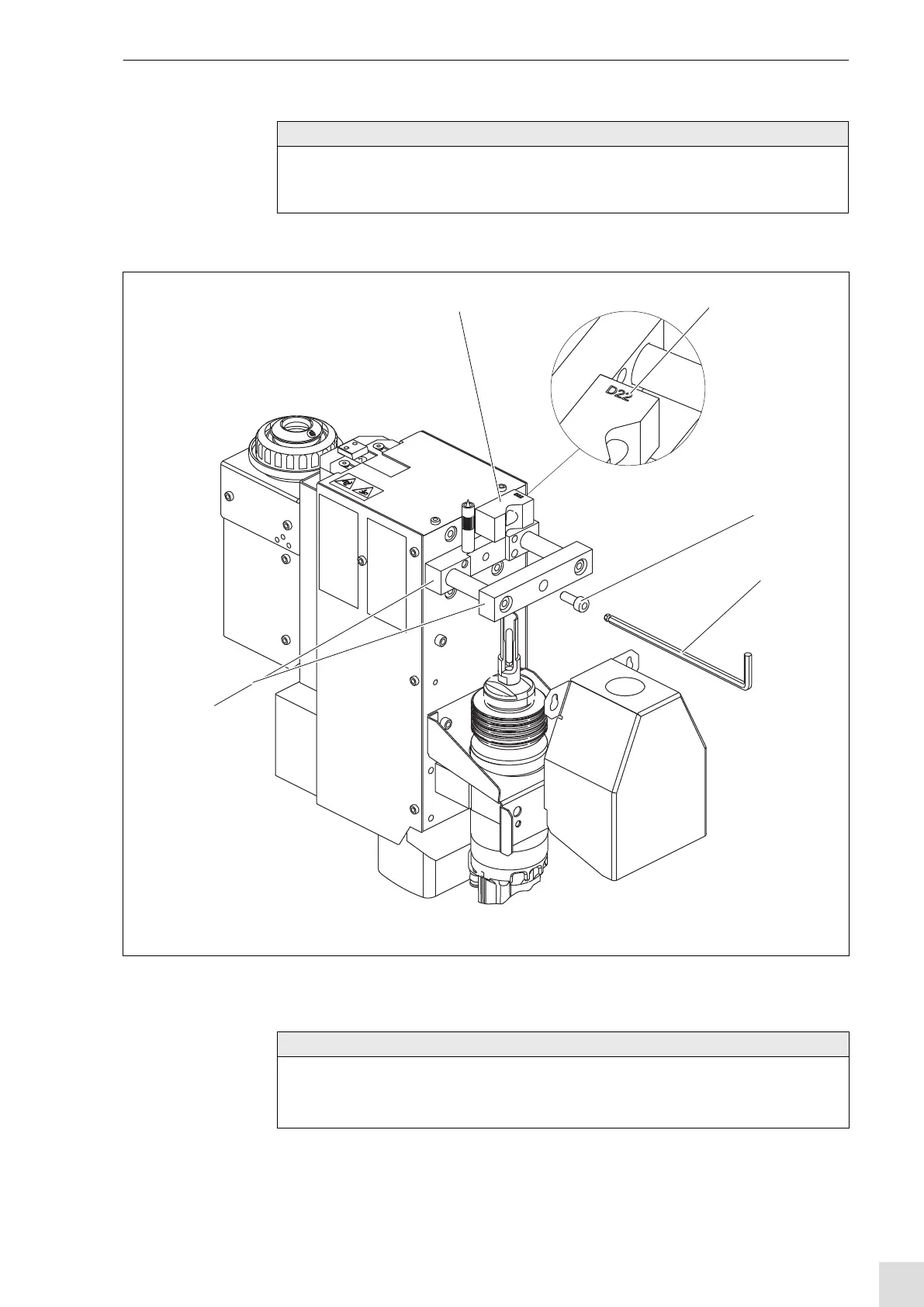

Fig. 14 Fastening the prism
1
2
3
4
5
NOTE
• Please observe that a clamping prism (1) is mounted which fits the gas nozzle diameter. You can find
the diameter of the prism on the prism.
see Fig. 14 Fastening the prism on page EN-19, Pos. (2)
